4-4. Setup – DEVICE Mode
In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below.
Navigate through the menu items using the mouse or the control button on the remote control and change
the value of the menu item.

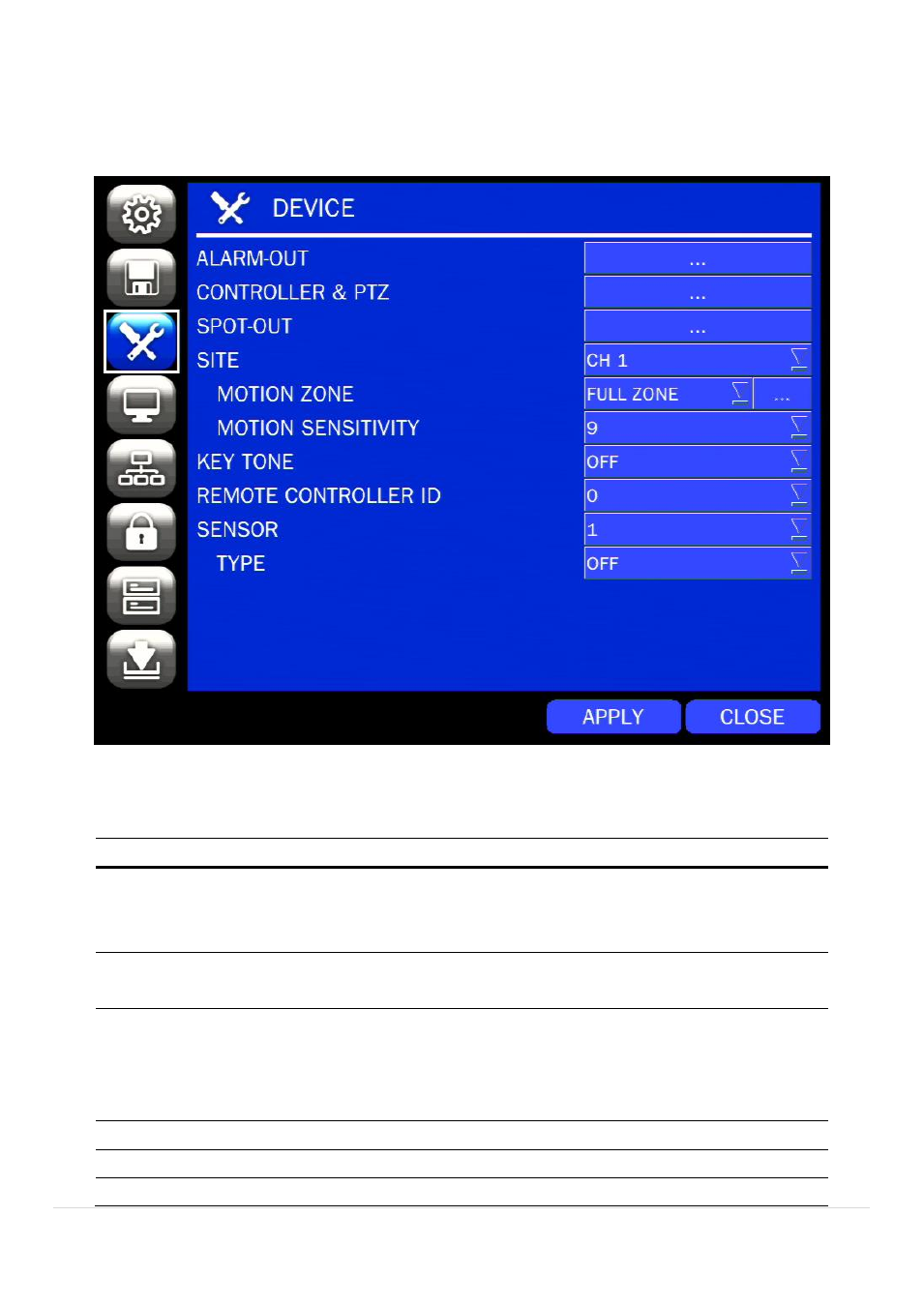

Figure 4.4.1. DEVICE Setup Screen
Table 4.4.1. Menu Items in DEVICE Setup Screen
Item Description
ALARM OUT Set the sensor, motion, and video loss for triggering alarm relay
HDD Error and Video Loss can trigger beeping.
(D4RS does not support ALARM OUT.)
CONTROLLER &
PTZ
Set the PTZ baud rate, protocol, and ID.
(D4RS does not support CONTROLLER & PTZ.)
SPOT-OUT D4RS/D4WRS: CVBS OUT is switchable as Composite Video Output
or Spot-Out according to the resolution of VIDEO OUTPUT (VGA).
D8RS/D16RS/D8WRS/D16WRS: CVBS1
– Composite Video Output /
CVBS2 – Spot-Out.
SITE Select specified channel for motion zone setup.
MOTION ZONE Select either Full Zone or Partial Zone for motion detection.
MOTION Set the motion sensitivity for the selected channel.
