Slant/Fin LDWO SERIES - Manual (Page 2)

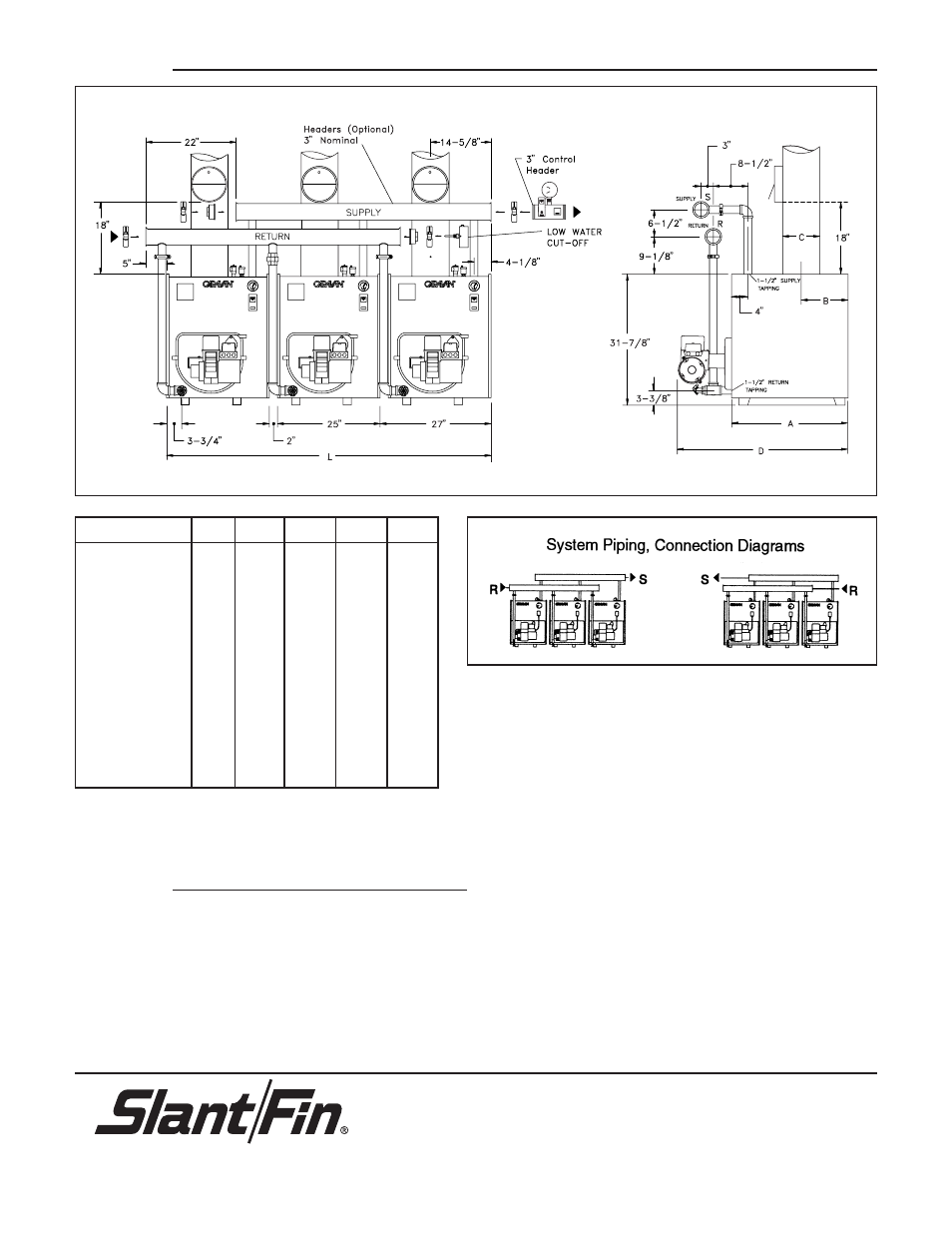

Dimensions
Design Data
SLANT/FIN CORPORATION, Greenvale, N.Y. 11548 • Phone: (516) 484-2600
FAX: (516) 484-5921 • Canada: Slant/Fin LTD/LTEE , Mississauga, Ontario
www.slantfin.com
©Slant/Fin Corp. 2003. Printed in the U.S.A. 803. Publication No. C-10-MO
Model No.
LDWO-600-2-5 21 5 ⁄
8
8 7 ⁄
32
8 34 3 ⁄
8
4'4"
LDWO-750-2-6 25 9 29 ⁄
32
8 37 3 ⁄
4
4'4"
LDWO-850-2-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
4'4"
LDWO-900-3-5 21 5 ⁄
8
8 7 ⁄
32
8 34 3 ⁄
8
6'7"
LDWO-1100-3-6 25 9 29 ⁄
32
8 37 3 ⁄
4
6'7"
LDWO-1300-3-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
6'7"
LDWO-1700-4-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
8'10"
LDWO-2100-5-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
11'1"
LDWO-2500-6-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
13'4"
LDWO-2900-7-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
15'7"
LDWO-3400-8-7 28 3 ⁄
8
11 19 ⁄
32
9 41 1 ⁄
8
17'10"
A L B C D
Max. ASME Working Pressure: 100 psi
Power Requirements: 120 V/60 HZ,
Amp(s) per module:
For Carlin burners 6.0
For Wayne burners 7.7
Note: Standard boiler unit prefix is LDWO.
