EVB-EMC2101 User Manual
Revision 1.5 (12-13-06)
SMSC EMC2101
6
2.4
Board Layout
The EVB was designed for ease of use and user experimentation with easily accessible jumpers and
access to the SMBus data lines.
below shows the silk-screen for the EMC2101 EVB.

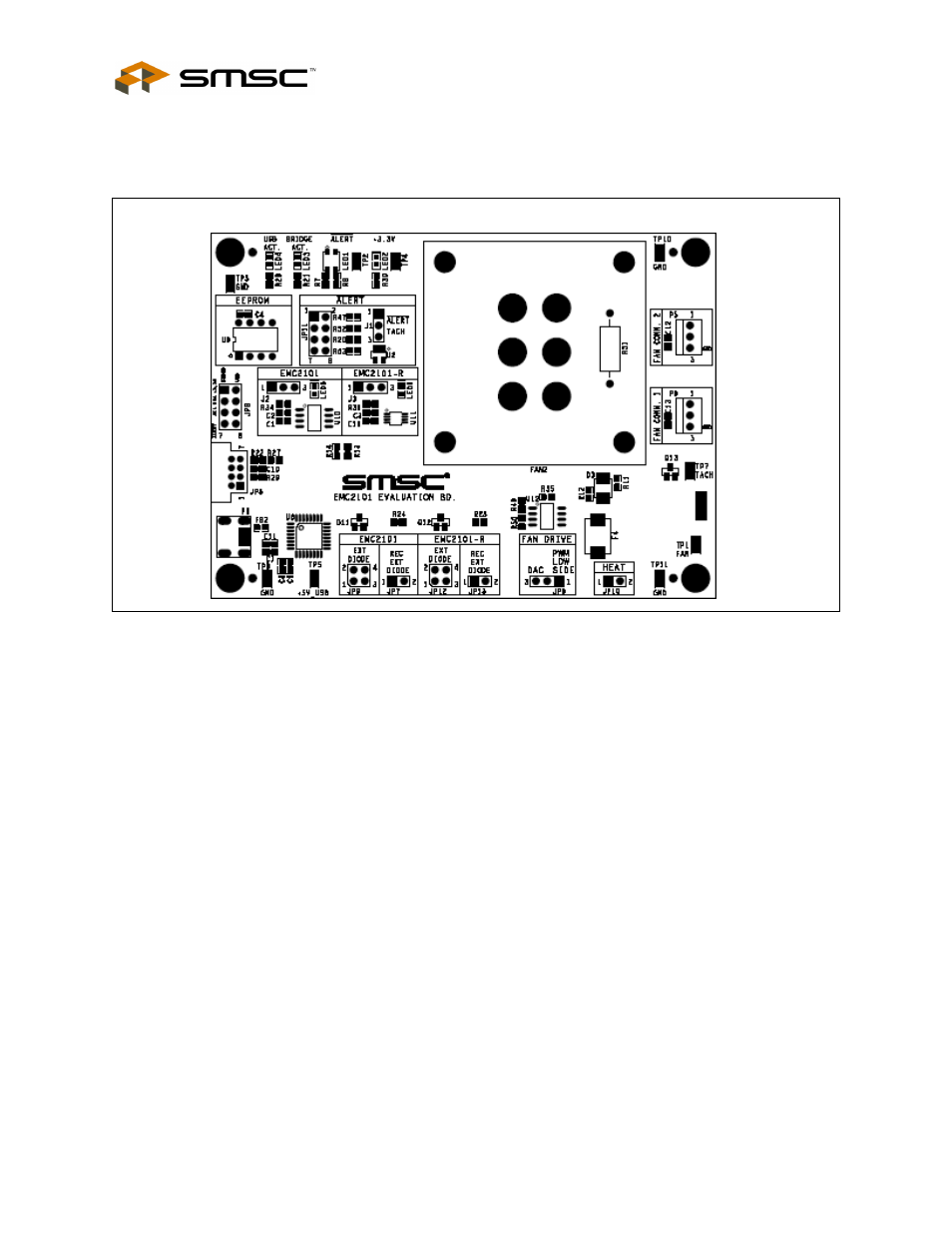

Figure 2.3 EMC2101 Board Outline and Silk-screen
