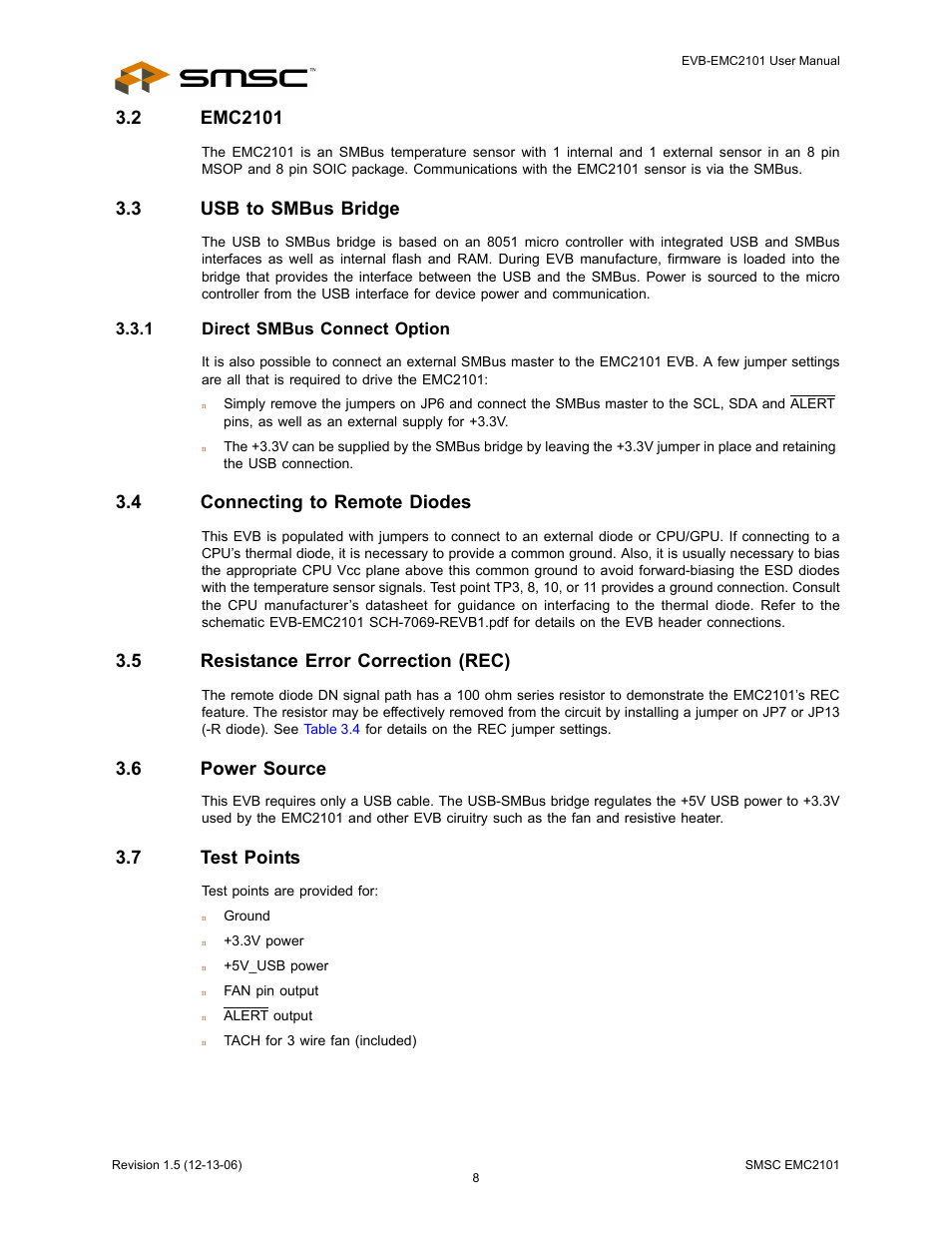

2 emc2101, 3 usb to smbus bridge, 1 direct smbus connect option – SMSC EVB-EMC2101 User Manual

Page 8: 4 connecting to remote diodes, 5 resistance error correction (rec), 6 power source, 7 test points

2 emc2101, 3 usb to smbus bridge, 1 direct smbus connect option | 4 connecting to remote diodes, 5 resistance error correction (rec), 6 power source, 7 test points | SMSC EVB-EMC2101 User Manual | Page 8 / 12 2 emc2101, 3 usb to smbus bridge, 1 direct smbus connect option | 4 connecting to remote diodes, 5 resistance error correction (rec), 6 power source, 7 test points | SMSC EVB-EMC2101 User Manual | Page 8 / 12
