ASSEMBLY
EC72 03/08 Assembly Section 3-5
© 2008 Alamo Group Inc.
ASSEMBL
Y

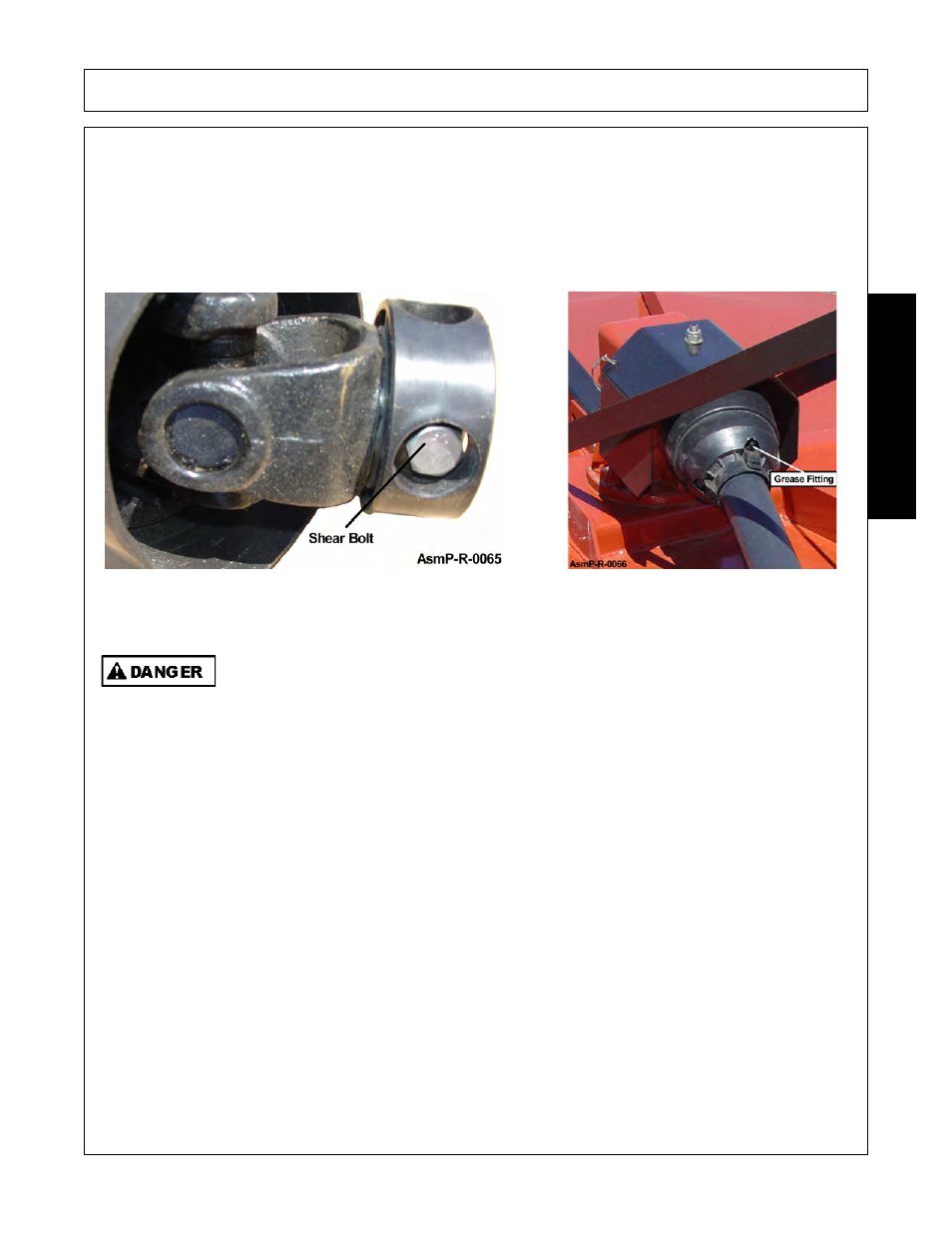

SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION
Attach rear driveline of U-Joint to input shaft on gearbox, install snap ring in groove on input shaft. NOTE:
Check that Snap Ring is properly seated in groove. This snap ring retains driveline when shear bolt shears.
Install Grad 2 (Only) shear bolt 1/2” x 2-3/4”. Use of a stronger shear bolt other than Grade 2, will result in
driveline failure and will void warranty. Figure AsmP-R-0043
Front Deflectors and Rear Metal Band (Standard Equipment)
Deflectors: Front Deflectors (Standard Equipment) are recommended for the average user and will provide
protection from thrown objects with proper operation under normal conditions. Deflectors must be maintained
in good repair or replaced after no more than two inches of wear off lower edge.
Front rubber-fabric Deflectors are Standard Equipment. Guard must be installed
(and maintained in good repair) except for agricultural purposes only in areas where
persons, vehicles, livestock, or other property will not be endangered by thrown
objects and where such safety equipment would prevent the mower's reasonable
performance of its assigned agricultural task. Assy02-Shielding
