Sony Ericsson S700i - Manual (Page 5)

This is the Internet version of the user's guide. © Print only for private use. 5
Getting Started

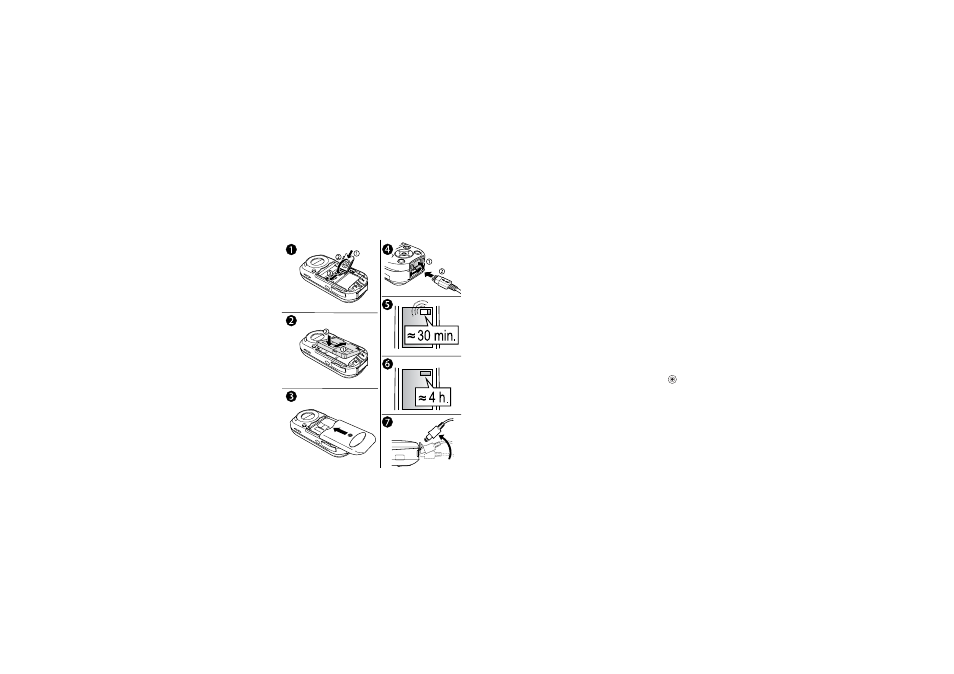

To insert the SIM Card and Charge
the Battery 1 Lift the SIM card holder in the direction marked
OPEN. Slide the SIM card into the holder slots
with the gold connectors facing down.
2 Place the battery on the back of the phone with
the label side up and the connectors facing
each other.
3 Place the battery cover as shown in the picture
and slide it into place.
4 Open the connector cover and connect the
charger to the phone at the flash symbol. The
flash symbol on the charger plug must face
upwards.
5 It may take up to 30 minutes before the battery
icon appears on the screen.
6 Charge for 4 hours or until the battery icon
indicates a full charge. If you do not see the
battery icon after this time, press any key or
to activate the screen.
7 Remove the charger by tilting the plug upwards.
