1-25 (E)
BKP-7933

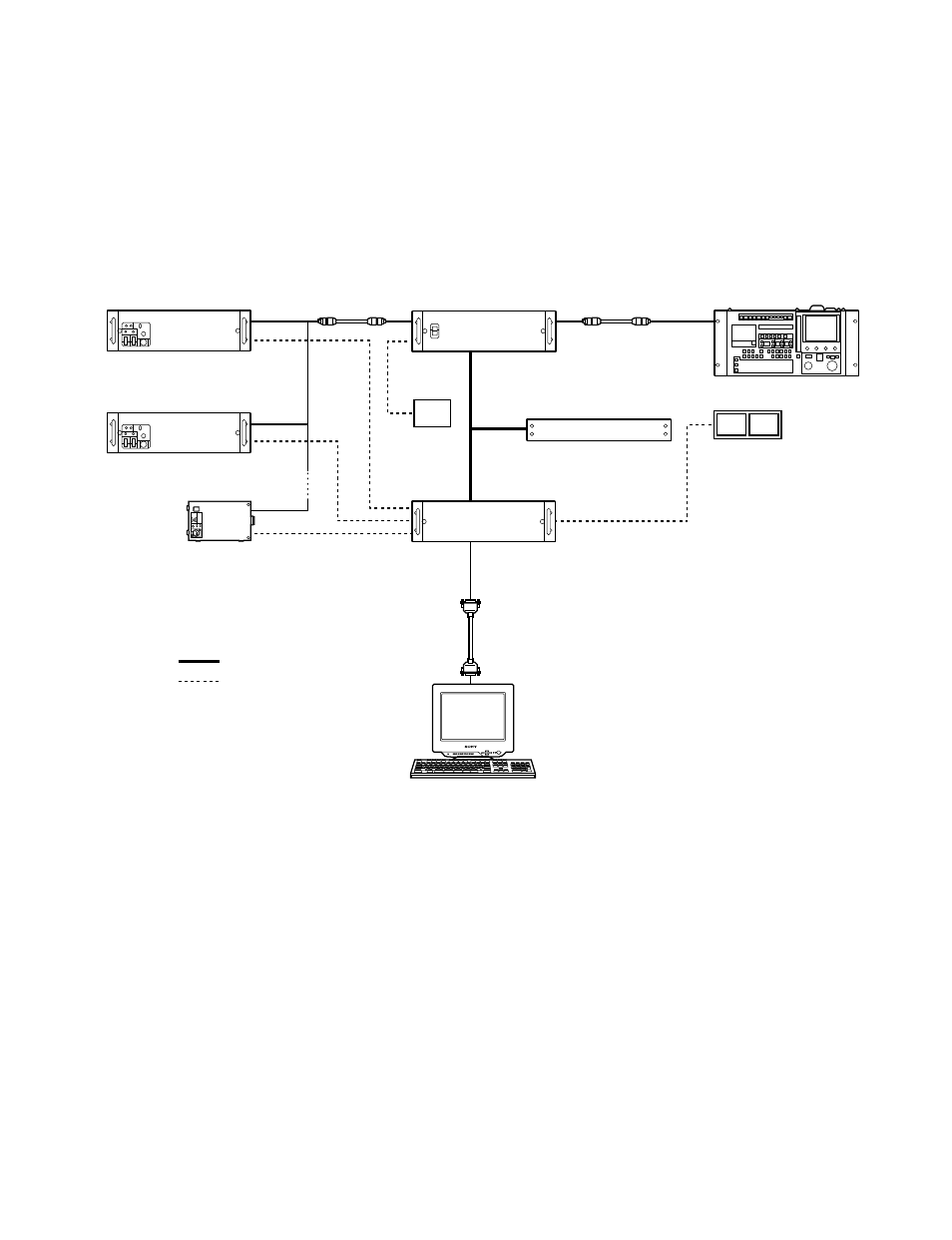

* If using the ANALOG ROUTING SWITCHER (BVS-V3232 etc.), connect it to PIX, WF or VBS connector
CCA-5
CABLE CCA-5
CABLE
REMOTE
RCP/CNU REMOTE
CCU/CNU
CCU 1 to 6
MSU
IN 1
OUT 13
REMOTE 1
REMOTE S-BUS
REMOTE 3
IN 2
IN 6
SERIAL
OUTPUT
REMOTE
RCP/CNU
SERIAL
OUTPUT
SERIAL
OUTPUT
REMOTE
RCP/CNU
DIGITAL
ROUTING
SWITCHER
DVS-V1616
SDI MONITOR
for MSU camera select
CCU-550 with BKP-5972
S-BUS BNC (BELDEN 8281)
CCU-700A with BKP-7311
CNU-700 with BKP-7933
MSU-700
CCU-700A with BKP-7311
VIDEO BNC
*
*
*
PIX
REMOTE
REMOTE CONTROL UNIT
BKS-R3202
RS-232C
CHARACTER
PIX WF
CONTROL TERMINAL
(IBM PC/AT COMPATIBLES)
1-7-6. Switching the MSU Camera Selection Externally
Description of Operation
Set the menu as follows when you want to switch the MSU camera selection from a remote location.
When this setting is executed, each one of up to 16 MSUs can be specified to control a certain camera.
Connecting Peripheral Equipment
1-7. Setting Up
