Page 14

1-8 (E)

BKP-7933

1-6-3. Notes on Connection

To connect the devices to the S-BUS line, refer to Section 1-6-4 and following precautions.

. The cable length of one S-BUS line is a maximum of 500 m (when a BELDEN 8281 or the equivalent

is used).

. Be sure to terminate the BNC connector (T bridge) attached to the last machine of the S-BUS line with

a 75

Z terminator.

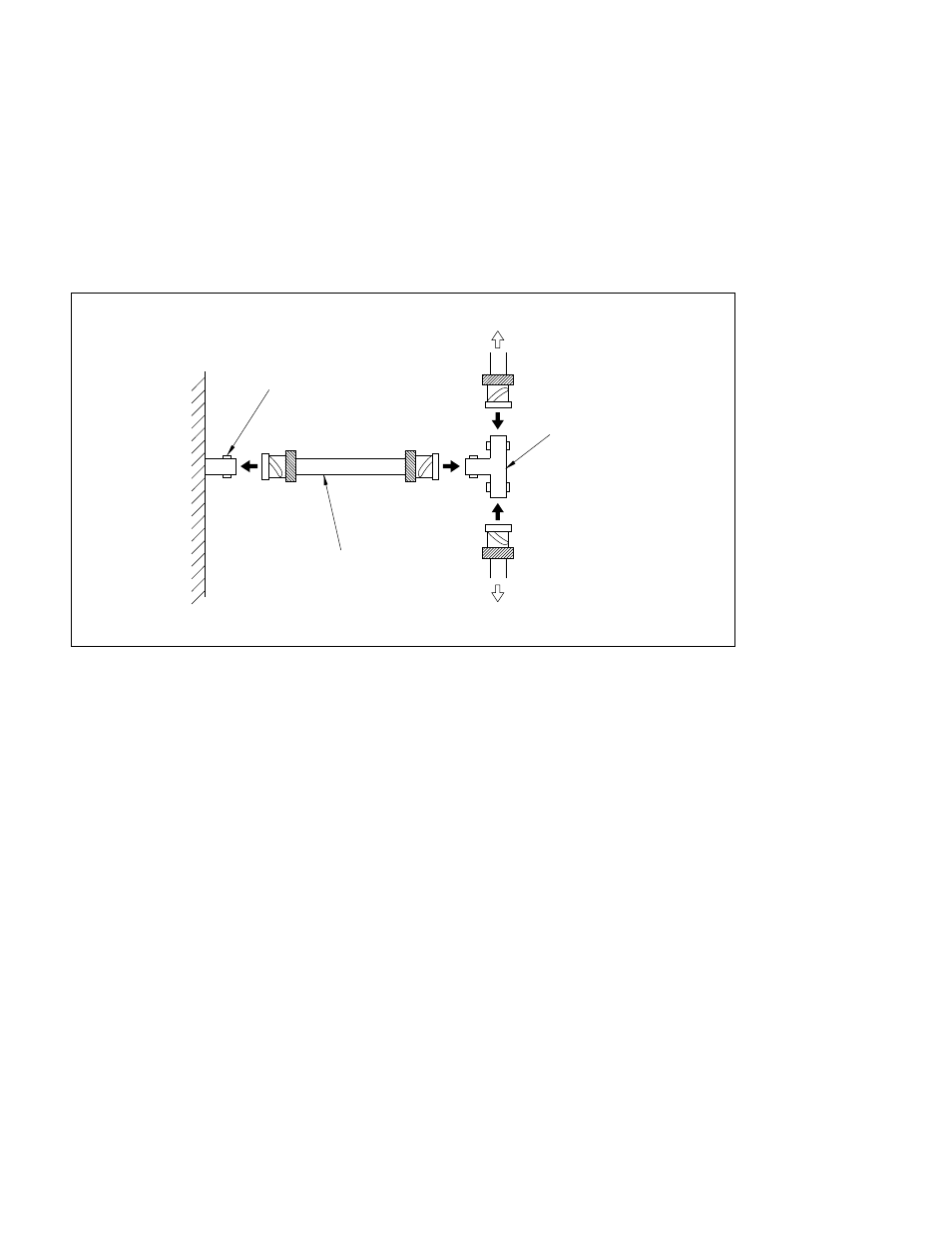

REMOTE S-BUS
(BNC connector, male)

BKP-7933

BELDEN 8281 cable

(shorter than 50 cm)

BNC Connector (T bridge)

1-6. Connection
