English-2-11

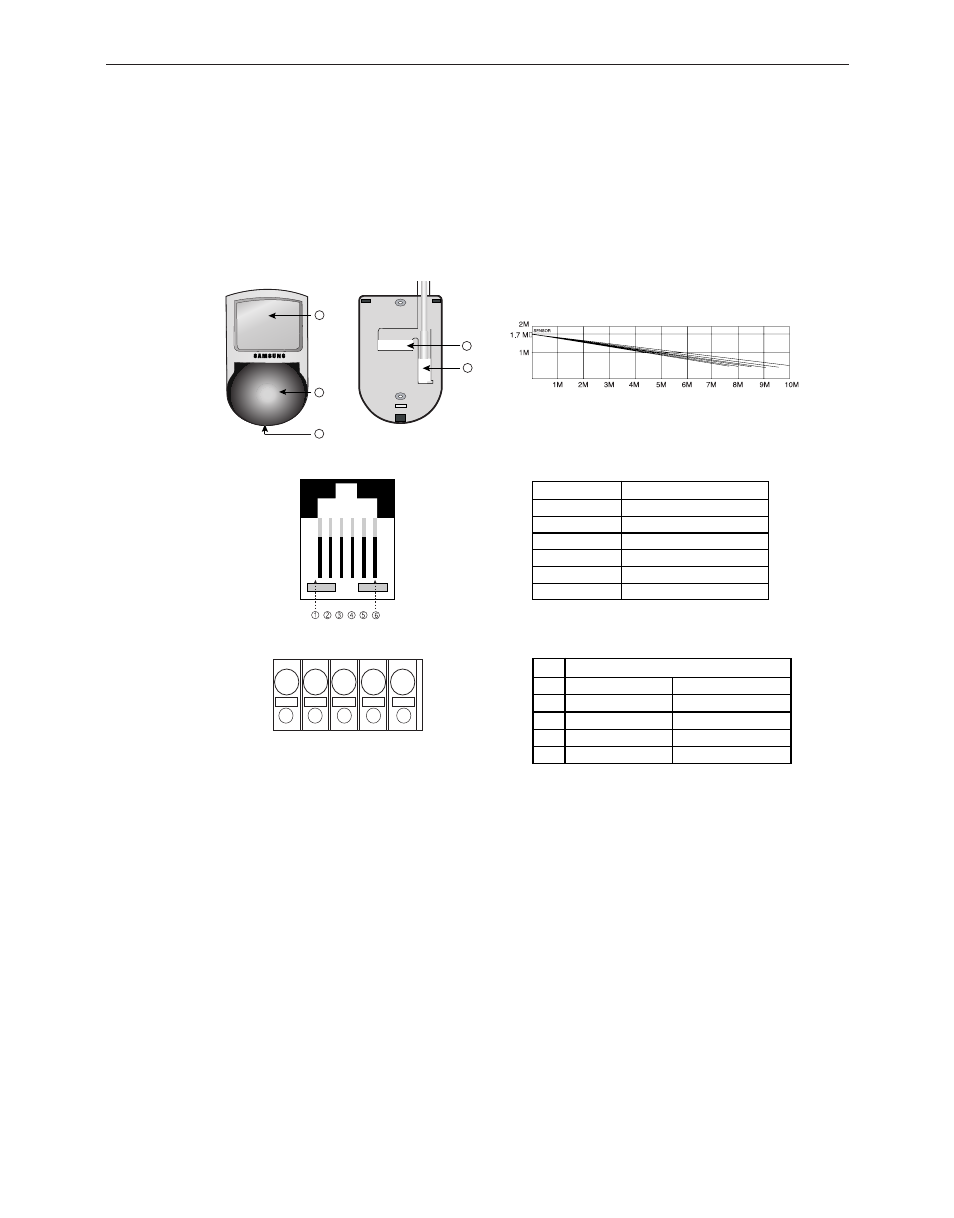

2-5) PIR CAMERA composition and installation method
(SOC-P120)
1) PIR Camera composition (SOC-P120)
① Lens
It has a focal length of 3.8mm and makes it possible for you to observe a relatively wide area.
➁ Speaker
It outputs the sound signal which transferred from the monitor.
➂ Fresnel Lens
An infrared focusing lens for increasing the sensitivity of the built-in PIR sensor.
➃ 6-pin modular jack
Used to connect the camera to the monitor.
PIN NUMBER
!
@
#
$
%
^
SPEC
SPEAKER(HOT)
VIDEO_OUT
GND
SPEAKER(COLD)
AUDIO_OUT/ALARM_OUT
18V DC
PIN
!
@
#
$
%
Power Input
(Back Up)
Relay Output
(350V 130mA)
SPEC
DC 12 Volts
Ground
Not Used
COM
N.C
5 4 3 2 1
3
5
4
1
2
1> Vertical Detection Line
• Please consider the horizontal detection area
and the vertical detection line when choosing
an installation site.
