Sanus Systems VISIONMOUNT VMDD26 User Manual
Page 5

5
6901-100015 <01>
4
CAUTION

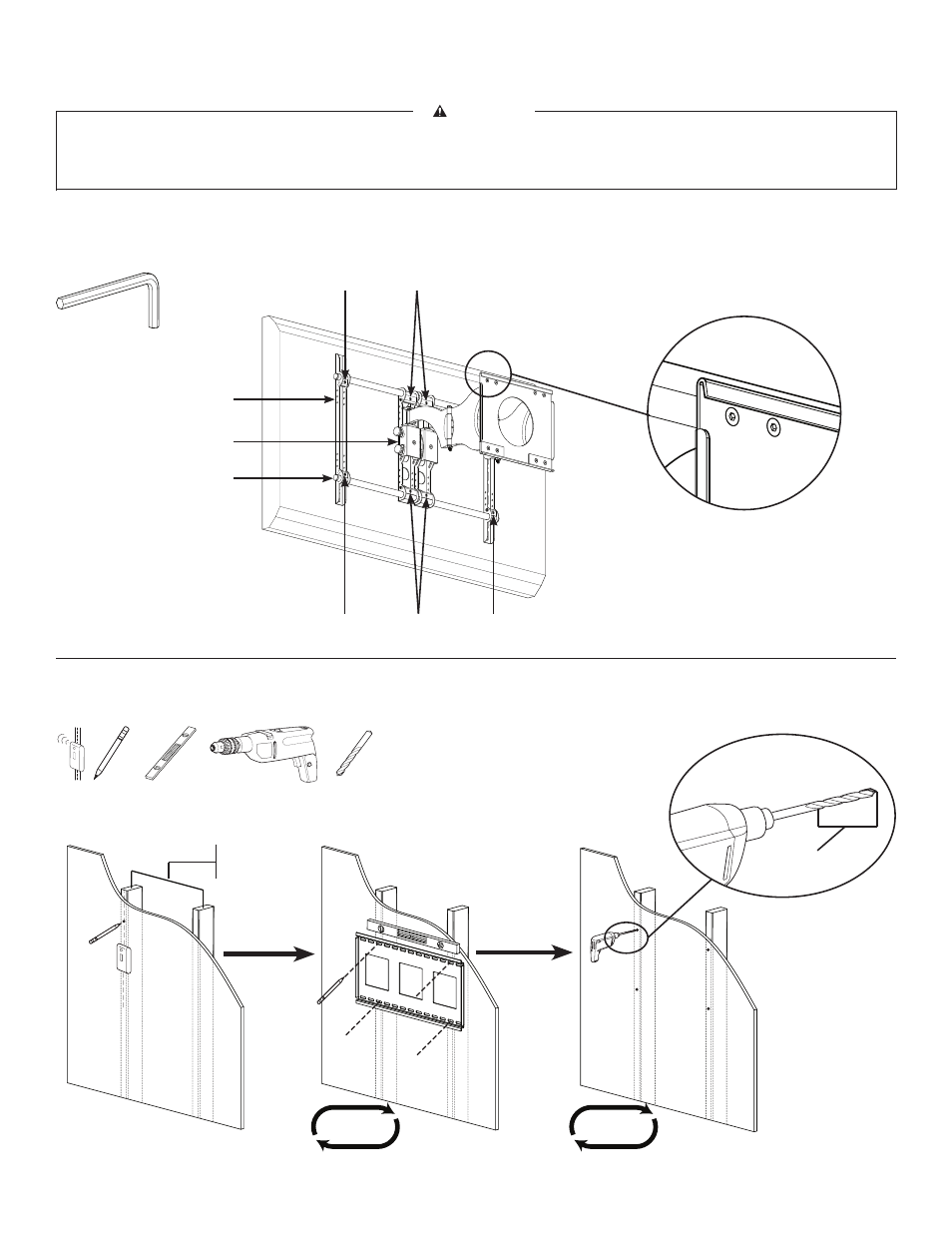

To prevent property damage or injury from an unstable installation, extend the Tubes [04] beyond the outside
edges of both Monitor Brackets [05] and tighten the Allen Bolts on Vise Assemblies [06] and [A] of the Arm
Assembly [02].
Do not overtighten Vise Assemblies [06] and [A]. Turn the Allen Bolt until resistance is felt. Then tighten the Bolt about 1½ turns, or
until it is slightly above the surface of the Vice Assembly. The Tubes [04] will not move from side to side if the Vise Assemblies are
correctly tightened.
[04]
[02]
[05]
[06]
[06]
[06]
[A]
[A]
5
3/16 in
≥ 305 mm
≥ 12 in.
4x
4x
63.5 mm
2.5 in
