• 7 •

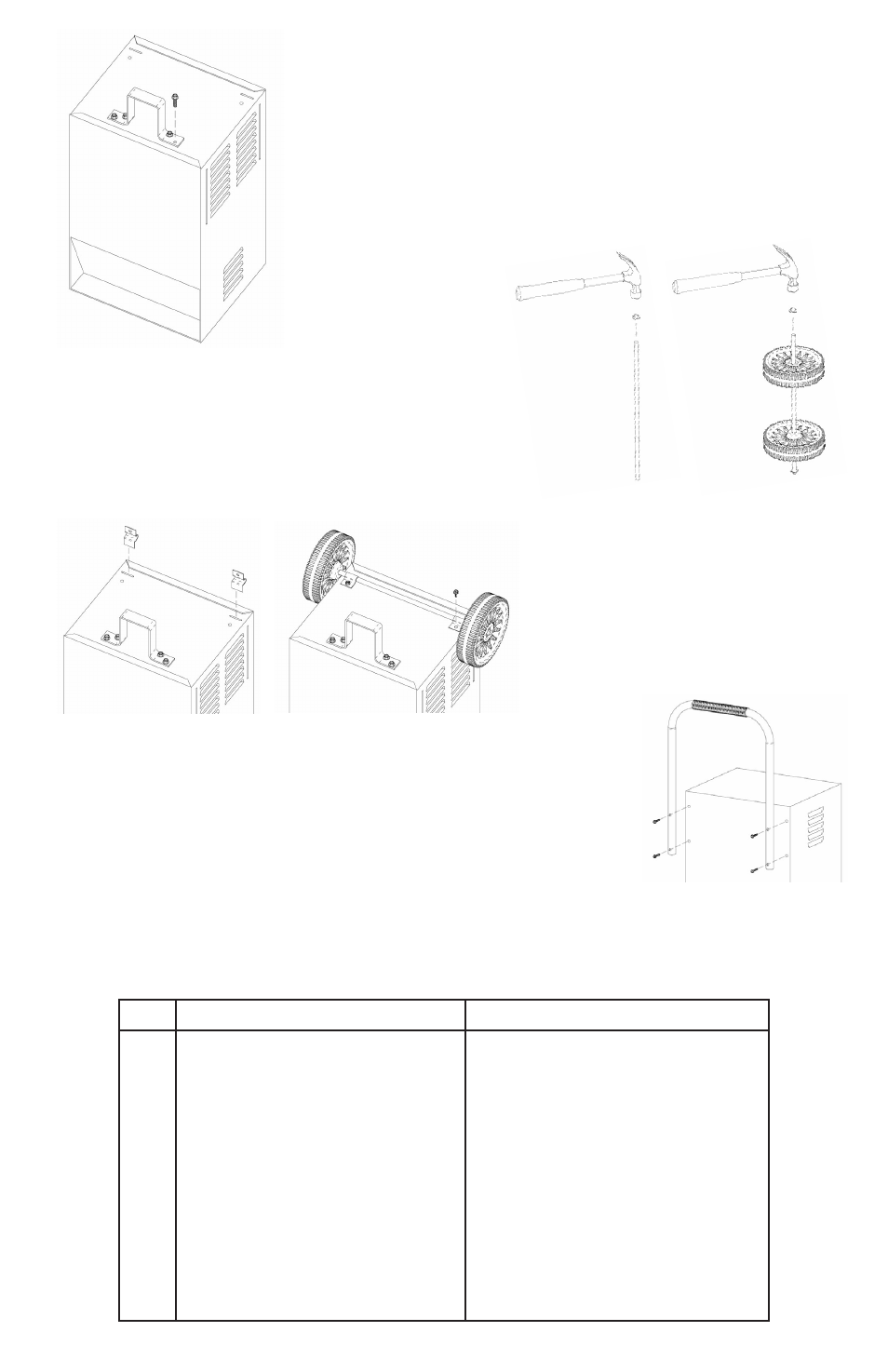

Attach the Foot: Remove the charger from the packing materials
and place upside down on a flat surface. Attach the foot and
secure it with the four ¼-20 thread cutting screws provided.
Assemble the Wheels and Axle: Hold the axle
upright on the floor or work surface. Then, using a
hammer, tap one of the axle caps onto the top end of
the axle. Be sure to tap the axle cap on straight. Slide
both wheels onto the axle with the recessed hubs
facing out as shown. Install the second axle cap.
Mount the Axle to the Charger:
Place one end of each bracket into the
slot on the bottom of the charger. Place
the axle assembly under each bracket.
Attach the brackets using the two,
10-32 thread cutting screws provided.
NOTE: Be careful not to drop the
brackets inside of the charger case.
Attach the Handle: If the charger came with a plastic grip, slide that
onto the handle until it is centered at the top. Turn the charger right
side up onto its foot and wheels. Align the handle so the screw holes
are aligned with the screw holes on the upper back corners
of the charger. Attach the handle using the four Phillips head
screws provided.
WHEEL CHARGER ASSEMBLY INSTRUCTIONS FOR PSW-22, PSW-2550,
PSW-3060 AND PSW-61224
It is important to fully assemble your charger before use. Follow these instructions 10.2
for assembly.
Item PARTS TOOLS NEEDED
1
2
3
4
5
6
7
8
9
10
11
12
(2) axle brackets
(1) axle with pin holes
(2) wheels
(2) 10-32, thread cutting screws
(2) ¼-20, thread cutting screws
(1) foot
(2) axle caps
(2) hairpin cotter
(4) 8-18 sheet metal screws
(1) handle
(1) fiberglass clamp rod
(1) foam handle grip
3/8" wrench (for mounting foot)
5/16" wrench (for mounting wheels)
1/4" wrench (for mounting handle)
hammer
screwdriver (flat blade)
screwdriver (Phillips)
