Dot Graphics Printing
“K” n <0> m1 m2 ...
1B 4B n 00 m1 m2 ...
Prints normal density graphics
Prints a bit image of the number of dots specified by n. After printing
the bit image, the printer automatically returns to the character mode.

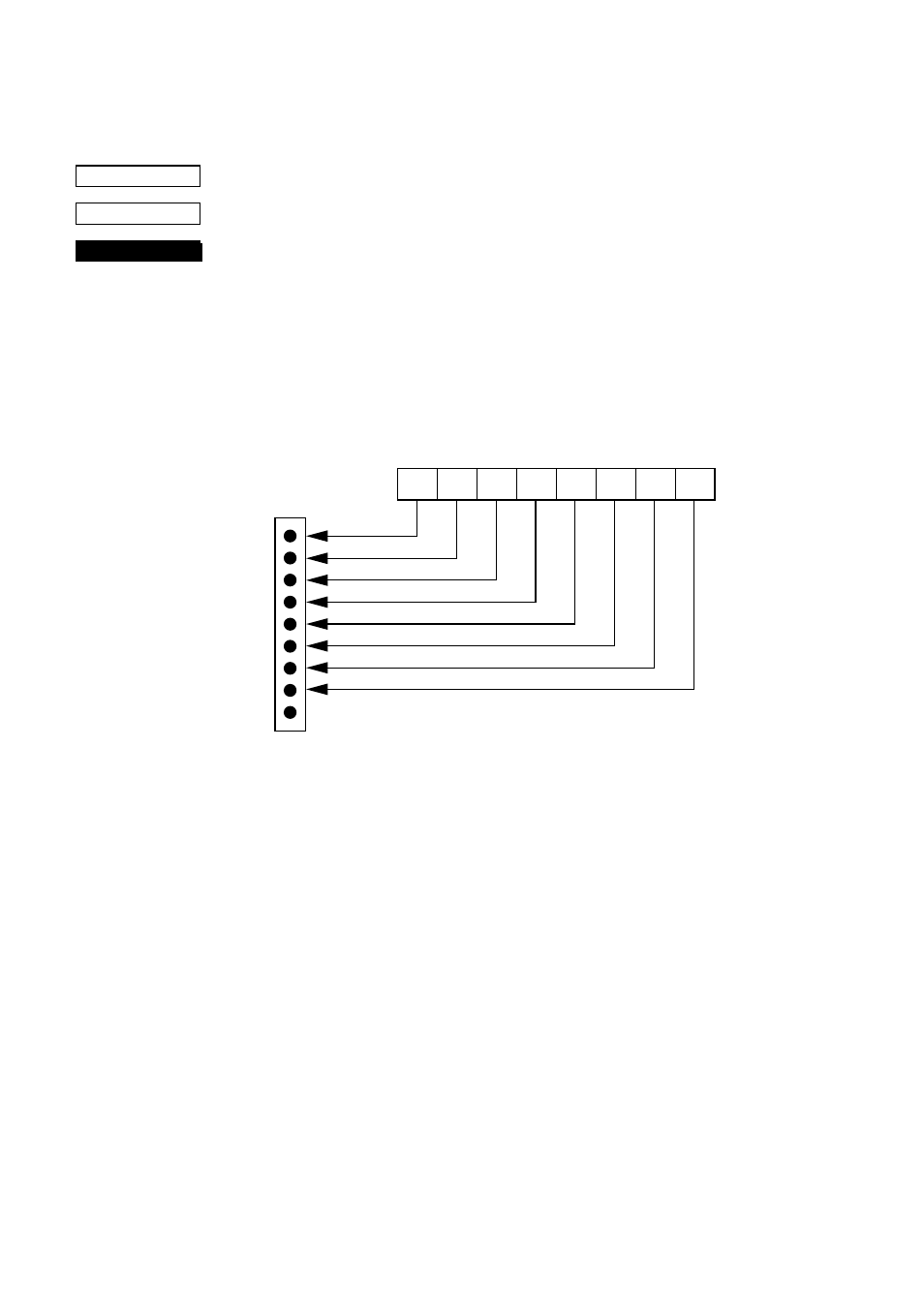

The relationship between the pins on the print head and the data is
shown below.
The value of n is between 1 and 210.
A maximum of 210 data bytes can printed in one line. Any data exceeding
210 bytes is ignored. Only uni-directional printing is possible.
CODE
HEX
FUNCTION
MSB LSB
Image data
D 8 D 7 D 6 D 5 D 4 D 3 D 2 D 1
1
2
3
4
5
6
7
8
9
Dot Position
(Not Used)
