I NSTALLING THE O UTDOOR U NIT

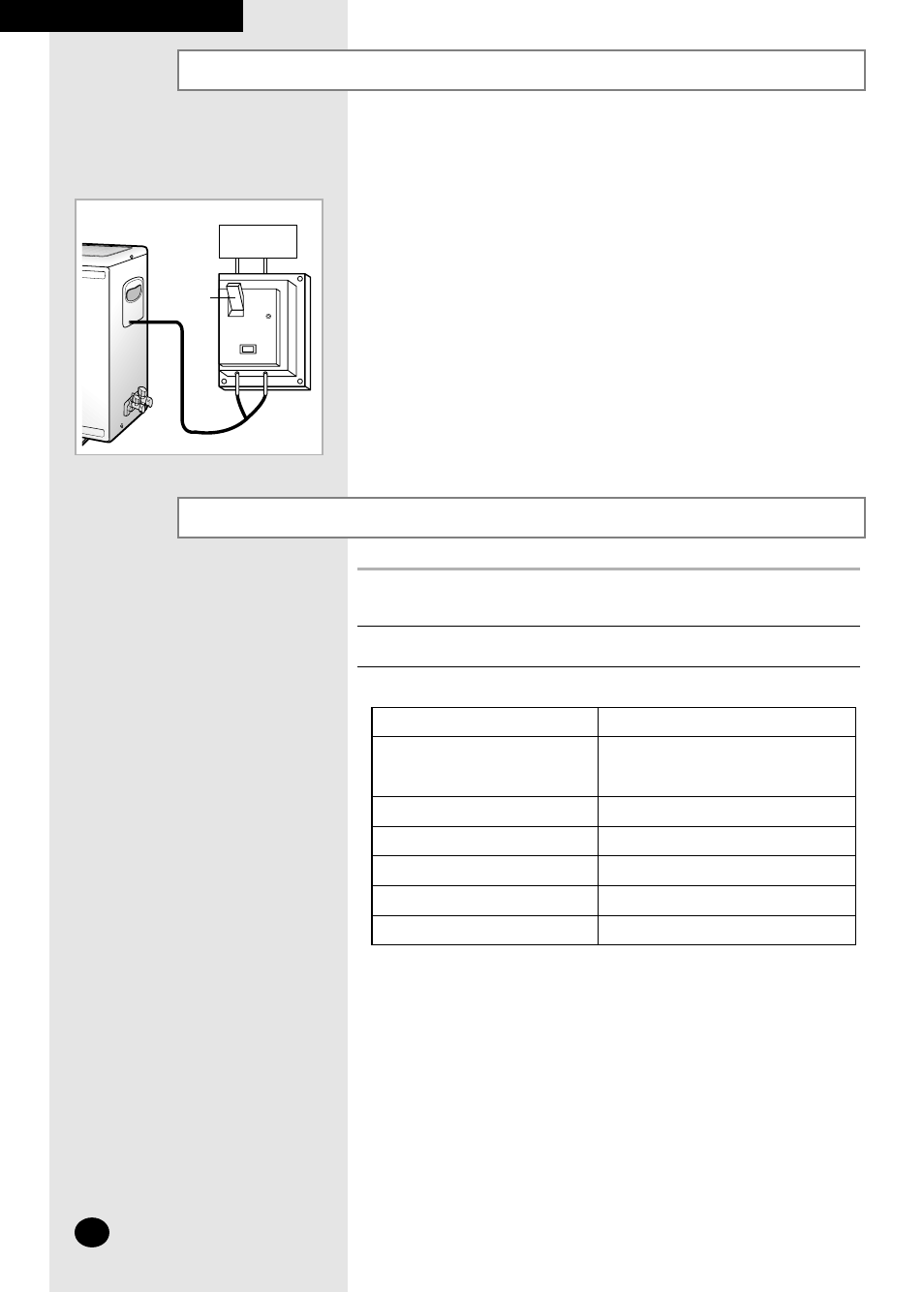

Auxiliary Circuit Breaker
Electrical Work
1 The supply voltage must be the same as the rated voltage of the
air conditioner.
2 Prepare the power souce for exclusive use with the air conditioner.
3 Use 15 amperes time delay fuse or circuit breaker.
➢ When using the special NFB, use the NFB to bear the capacity of the
air conditioner.
➢ Otherwise, the shot circuit in the NFB may occur.
◆ Auxiliary circuit breaker should be installed near outdoor unit so
that each access is possible. Main/outdoor power supply cable are
connected to upper/lower terminal of auxiliary circuit breaker.
◆ It is necessary that the conduit kit for power supply to the outdoor
unit be installed between auxiliary power S/W and the outdoor
unit. (the conduit kit is optional)
MODEL AQ30 ✴✴ BC
Power cable
Assembly cable
Operating current(C/H)
Starting Current
Power consumption (C/H)
Power supply
208-230V~/60Hz
Single phase
3G AWG 12
5G AWG 14 + 2G AWG 18
80A
14A / 14A
3100W / 3100W
Outdoor unit Distribution
board
Auxiliary
power s/w
