I NSTALLING THE O UTDOOR U NIT

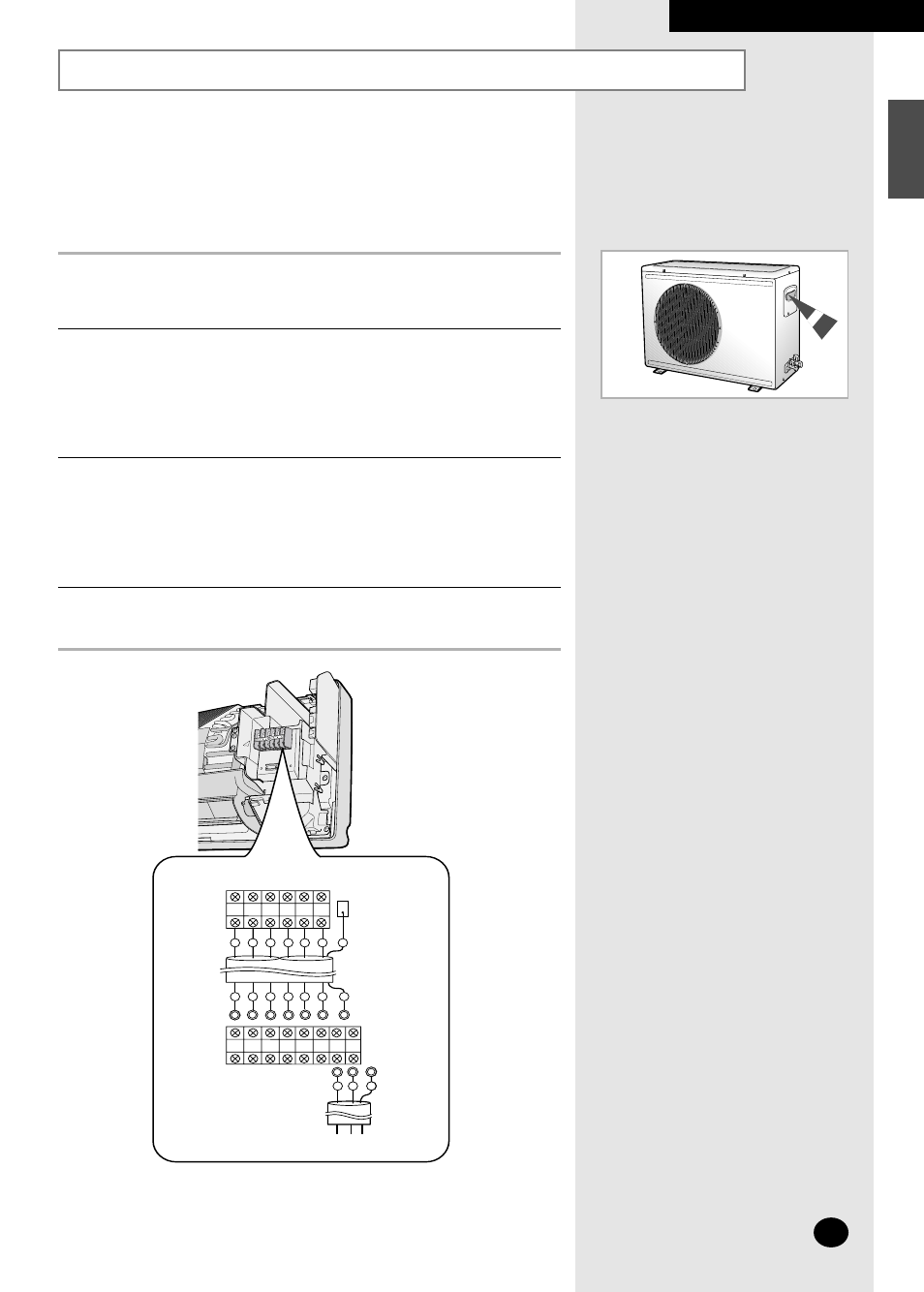

Connecting the Cables to the Outdoor Unit
One electric cable must be connected to the outdoor unit:
◆ The assembly cable connecting the indoor unit to the outdoor unit
1 Remove the terminal board cover on the side of the outdoor unit.
2 Connect the assembly cable to terminals as shown in the figure.
➢ Each wire is labelled with the corresponding terminal number.
3 Connect the earth wires to the earth terminals.
➢ Refer to the page 41 for further details on how to check
that earthing is correct.
4 Replace the terminal board cover, carefully tightening the screw.
L1 L2 1 A B
A B
2 3 4
1 2 3 4
4 4 3 2 1 B A
E 4 3 2 1
E
E
E
B A
L1 L2
Indoor unit
Outdoor unit
Circuit Breaker(Main Power)
Earth
terminal
