DE2-70 User Manual
34
LED10
LED11
LED13
LED12
LED16
LED17
LED15
LED14
LED9
LED8
LED2
LED3
LED1
LED0
LED7
LED6
LED4
LED5
LED18
LED20
LED21
LED19
LED22
LED23
LED24
LED25
LED26
LED[0..26]
RN15 330 RN15 330
1
2
3
4
5
6
7
8
RN10 330 RN10 330
1
2
3
4
5
6
7
8
LEDR4 LEDR LEDR4 LEDR
LEDG1 LEDG LEDG1 LEDG
LEDR5 LEDR LEDR5 LEDR
LEDR6 LEDR LEDR6 LEDR
LEDR7 LEDR LEDR7 LEDR
RN16 330 RN16 330
1
2
3
4
5
6
7
8
LEDG6 LEDG LEDG6 LEDG
LEDG0 LEDG LEDG0 LEDG
LEDR1 LEDR LEDR1 LEDR
LEDG3 LEDG LEDG3 LEDG
LEDR9 LEDR LEDR9 LEDR
LEDR8 LEDR LEDR8 LEDR
RN11 330 RN11 330
1
2
3
4
5
6
7
8
LEDG8 LEDG LEDG8 LEDG
LEDR3 LEDR LEDR3 LEDR
RN12 330 RN12 330
1
2
3
4
5
6
7
8
LEDR14 LEDR LEDR14 LEDR
LEDG5 LEDG LEDG5 LEDG
LEDR15 LEDR LEDR15 LEDR
LEDR16 LEDR LEDR16 LEDR
LEDR17 LEDR LEDR17 LEDR
LEDG2 LEDG LEDG2 LEDG
LEDR0 LEDR LEDR0 LEDR
RN13 330 RN13 330
1
2
3
4
5
6
7
8
LEDR10 LEDR LEDR10 LEDR
LEDR11 LEDR LEDR11 LEDR
LEDR12 LEDR LEDR12 LEDR
RN14 330 RN14 330
1
2
3
4
5
6
7
8
LEDG7 LEDG LEDG7 LEDG
LEDR13 LEDR LEDR13 LEDR
LEDR2 LEDR LEDR2 LEDR
LEDG4 LEDG LEDG4 LEDG

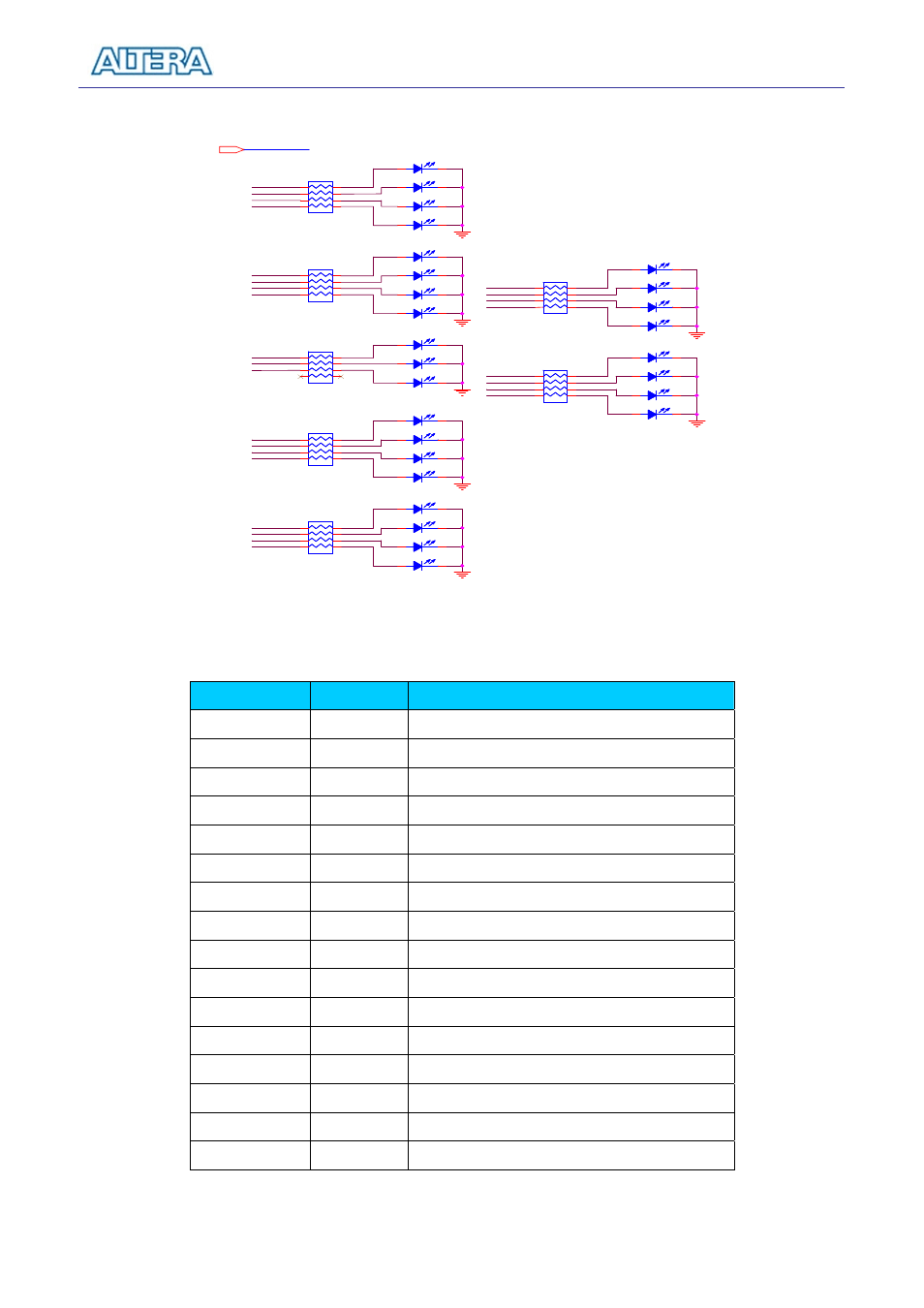

Figure 5.5. Schematic diagram of the LEDs.
Signal Name FPGA Pin No. Description
SW[0] PIN_AA23 Toggle Switch[0]
SW[1] PIN_AB26 Toggle Switch[1]
SW[2] PIN_AB25 Toggle Switch[2]
SW[3] PIN_AC27 Toggle Switch[3]
SW[4] PIN_AC26 Toggle Switch[4]
SW[5] PIN_AC24 Toggle Switch[5]
SW[6] PIN_AC23 Toggle Switch[6]
SW[7] PIN_AD25 Toggle Switch[7]
SW[8] PIN_AD24 Toggle Switch[8]
SW[9] PIN_AE27 Toggle Switch[9]
SW[10] PIN_W5 Toggle Switch[10]
SW[11] PIN_V10 Toggle Switch[11]
SW[12] PIN_U9 Toggle Switch[12]
SW[13] PIN_T9 Toggle Switch[13]
SW[14] PIN_L5 Toggle Switch[14]
SW[15] PIN_L4 Toggle Switch[15]
