Additional Information
Index to Parts and Controls
1 DIGITAL OUT COAXIAL connector (10, 12)
Connect to an audio component using a coaxial digital
connecting cord.
2 DIGITAL OUT OPTICAL connector (10, 12)
Connect to an audio component using an optical
digital connecting cord. Take off the cap.
3 LINE OUT AUDIO R (right)/L (left), 1/2 connectors
(8, 10)
Connect to the audio input connector on your TV or
receiver (amplifier).
4 LINE OUT VIDEO 1/2 connectors (8)
Connect to the video input connector on your TV or
monitor.
5 S VIDEO OUT connector (8, 10, 12)
Connect to the S video input connector on your TV or
monitor.
6 COMPONENT VIDEO OUT connectors (9)
Connect to a monitor or projector having component
video input connectors (Y, C
B , C R ) that conform to
output signals from the player.

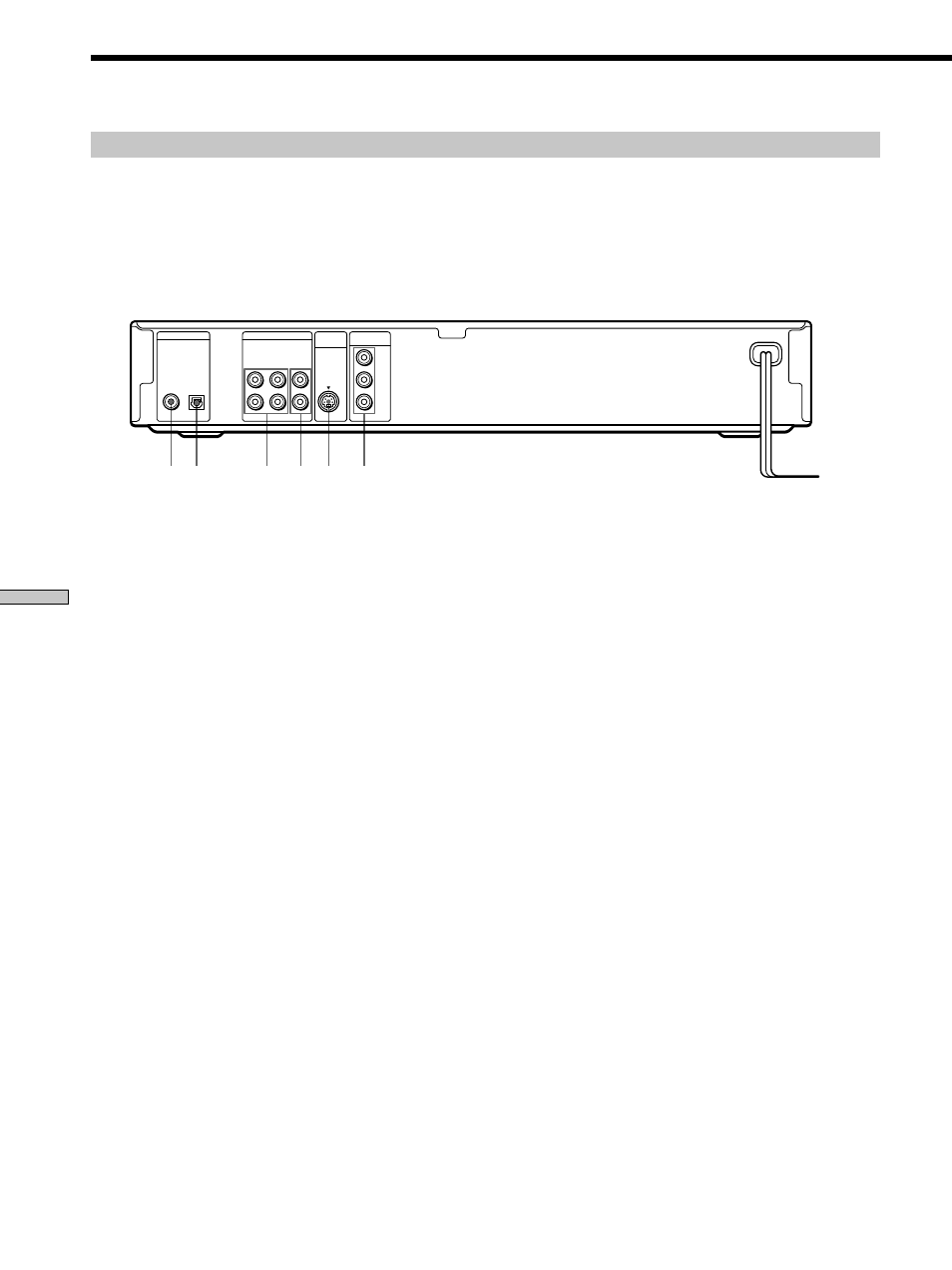

Rear Panel
2 3 5 6 4 1
DIGITAL OUT LINE OUT S VIDEO
OUT
COMPONENT
Y
VIDEO 1
VIDEO 2
R – AUDIO 1 – L
OPTICAL
PCM/DTS/MPEG/
DOLBY DIGITAL
COAXIAL
R – AUDIO 2 – L
C B
C R
VIDEO OUT
