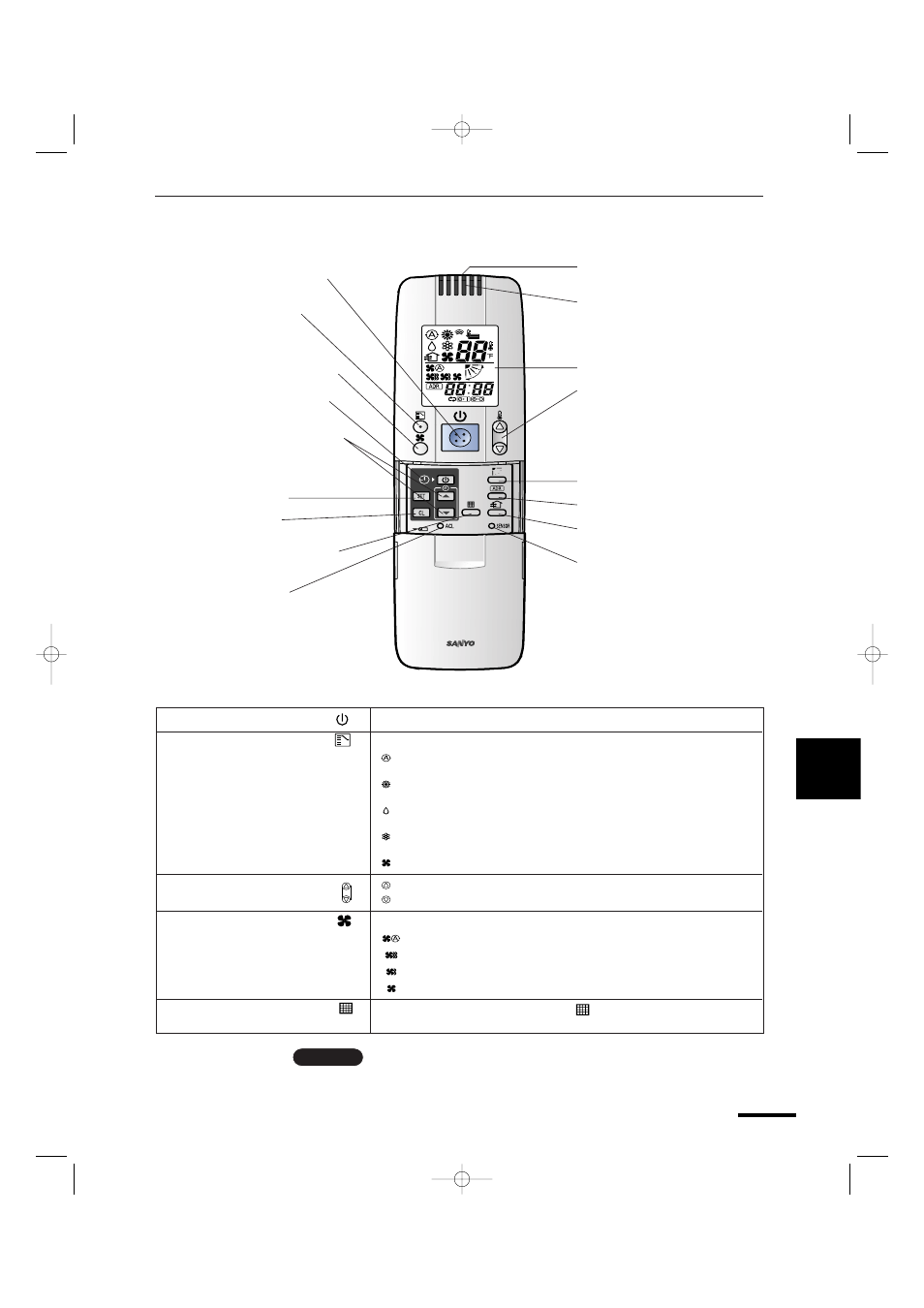

Remote Cotrol Unit
A: ON/OFF operation button This button is for turning the air conditioner on and off.
B: MODE button Use this button to select one of the following five operations:
(AUTO) : Used to automatically set cooling or heating operation.
Only for heat pump type (temperature range: 62 ~ 80 °F)
(HEAT) : Used for normal heating operation.
Only for heat pump type (temperature range: 60 ~ 78 °F)
(DRY) : Used for dehumidifying without changing the room temperature.
(temperature range: 64 ~ 86 °F)
(COOL) : Used for normal cooling operation.
(temperature range: 64 ~ 86 °F)
(FAN) : Used to run the fan only, without heating or cooling operation.
C: Temperature : Press this button to increase the temperature setting.
setting buttons : Press this button to decrease the temperature setting.
D: FAN SPEED selector
button (AUTO) : The air conditioner automatically decides the fan speed.
(HI.) : High fan speed.
(MED.) : Medium fan speed.
(LO.) : Low fan speed.
E: FILTER reset button Use this button to reset the filter sign . The air conditioner has a
timer for the filter and informs you when the filter needs cleaning.
When low fan speed is selected and the air conditioner is in cooling
operation at a low outdoor temperature of less than 50°F, the air
conditioner may automatically switch to medium fan speed. NOTE
A: ON/OFF operation
button
B: MODE button
D: FAN SPEED selector
button
G: TIMER SET button
I: SET button
H: Time setting buttons
J: CL button
E: FILTER reset button
P: ACL button
M: TRANSMITTER
K: SENSOR
Q: DISPLAY
C: Temperature setting
buttons
N: ADDRESS button
F: FLAP button
L: VENTILATION
button
O: SENSOR button
NOTE
