Removing the grille – Shure MX692 User Manual
Page 11
English – 10

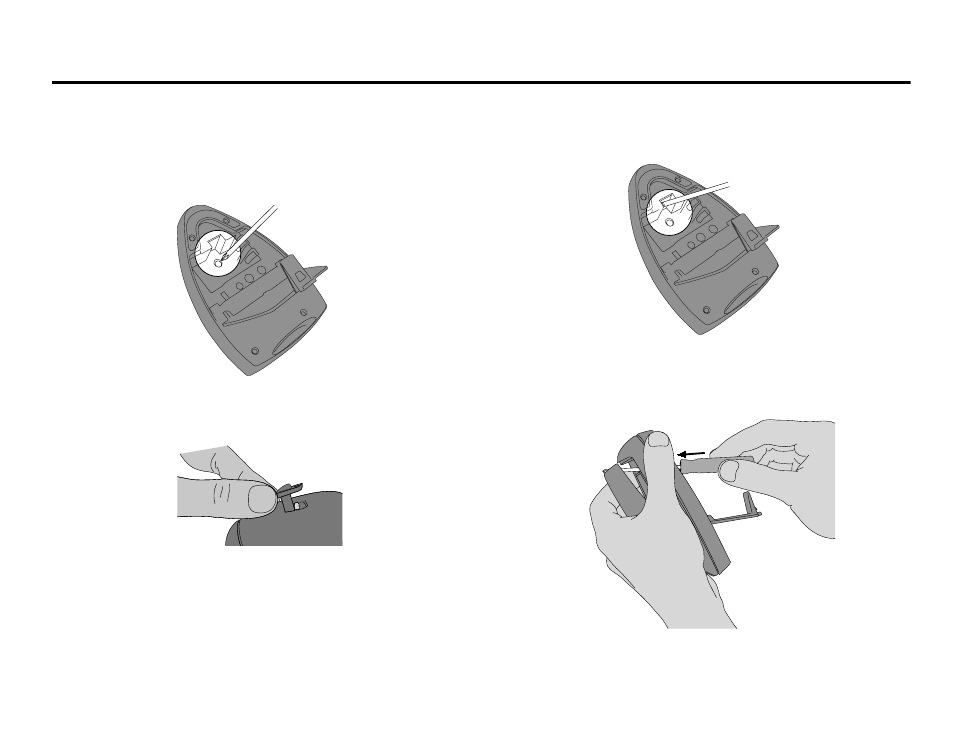

REMOVING THE GRILLE
1. Open the battery compartment
2. Remove the battery
3. Loosen and remove the screw at the base of the
battery compartment
4. Remove the retainer from the top of the micro-
phone
5. Insert the screwdriver into the opening above the
battery compartment
6. Press gently on the underside of the microphone
grille with the tip of the screwdriver until the grille
pops out
