1-23

MVE-8000A

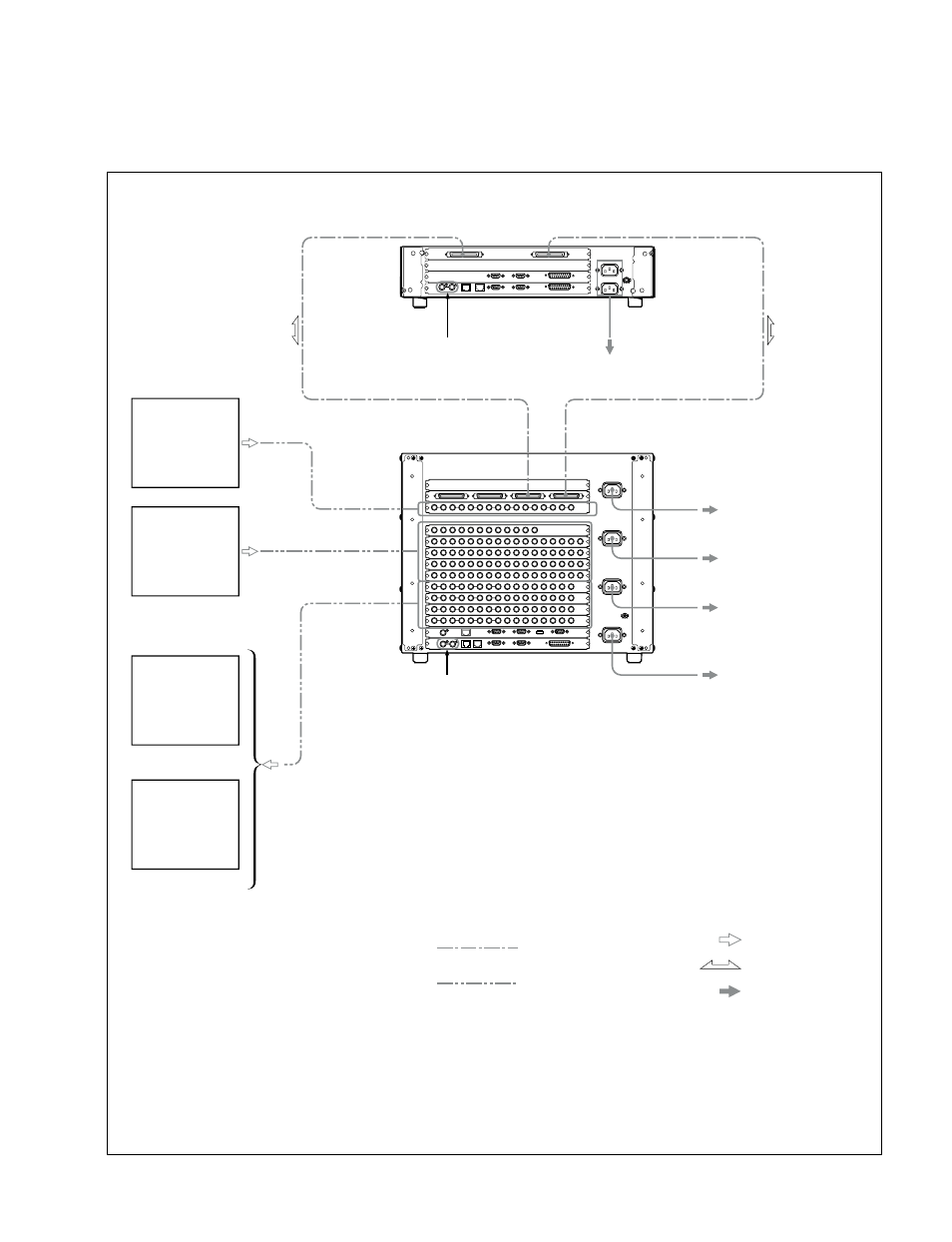

Flow of Video Signals (MKE-8020A Installed)

The figure below shows the flow of video signals in a MVS-8000/8000A system.

SWITCHER B

DME 1B

MONITOR
OUTPUT 1-8

OUTPUTS 1-48

PRIMARY INPUTS 1-80

DME 1A

SWITCHER A

MVE-8000A-C DME Processor Pack

Reference video signal

c)

Monitor

Reference video signal

c)

100 to 240 V AC power supply

a)

Camera,
VTR,
routing
switcher

100 to 240 V AC power
supply

b)

100 to 240 V AC power
supply

b)

Monitor

VTR

MVS-8400/8300/8200/8000/8000A-C
Switcher Processor Pack

Cable with BNC connectors

AC power supply

Video input signal
Video output signal

Video/key signal

a)

b)

For the AC power cord of this unit, refer to Section “1-2-2.
Recommended Power Cord” in this manual.
For the AC power cord of the MVS-8000/8000A, refer to
“Accessories not supplied” in the MVS-8400/8300/8200/8000/
8000A-C Operation Manual.

c)

d)

Terminate with the supplied 75

Z

terminators.

Terminators are supplied in the product package.
Supplied with MKE-8020A MVS Interface Board Set.

100 to 240 V AC power
supply

b)

100 to 240 V AC power
supply

b)

MDR 68-pin cable

d)
