1-17
MVE-8000A
A
B
C
D
E
F
G
H
J
K
D504
D501
D502
D505
D503
D506
S901
S1201
D1204
D1203
D1202
D1201
D703
D702
D701
ND1101
ND1102
S801
S1101
ND1201
ND1202
D1104
D1103
D1102
D1101
D1004
D1002
D1003
D1001
1
2
3
4
5
6
7
8
D12
D18
D19
D14
D15
D16
D17
D10
D13
SW2
SW1
CPU-DR
Module
(CPU B)
A
B
C
D
E
F
G
654321
D12
D18
D19
D14
D15
D16
D17
D10
D13
SW2
SW1
CPU-DR
Module
(CPU A)
A
B
C
D
E
F
G
654321

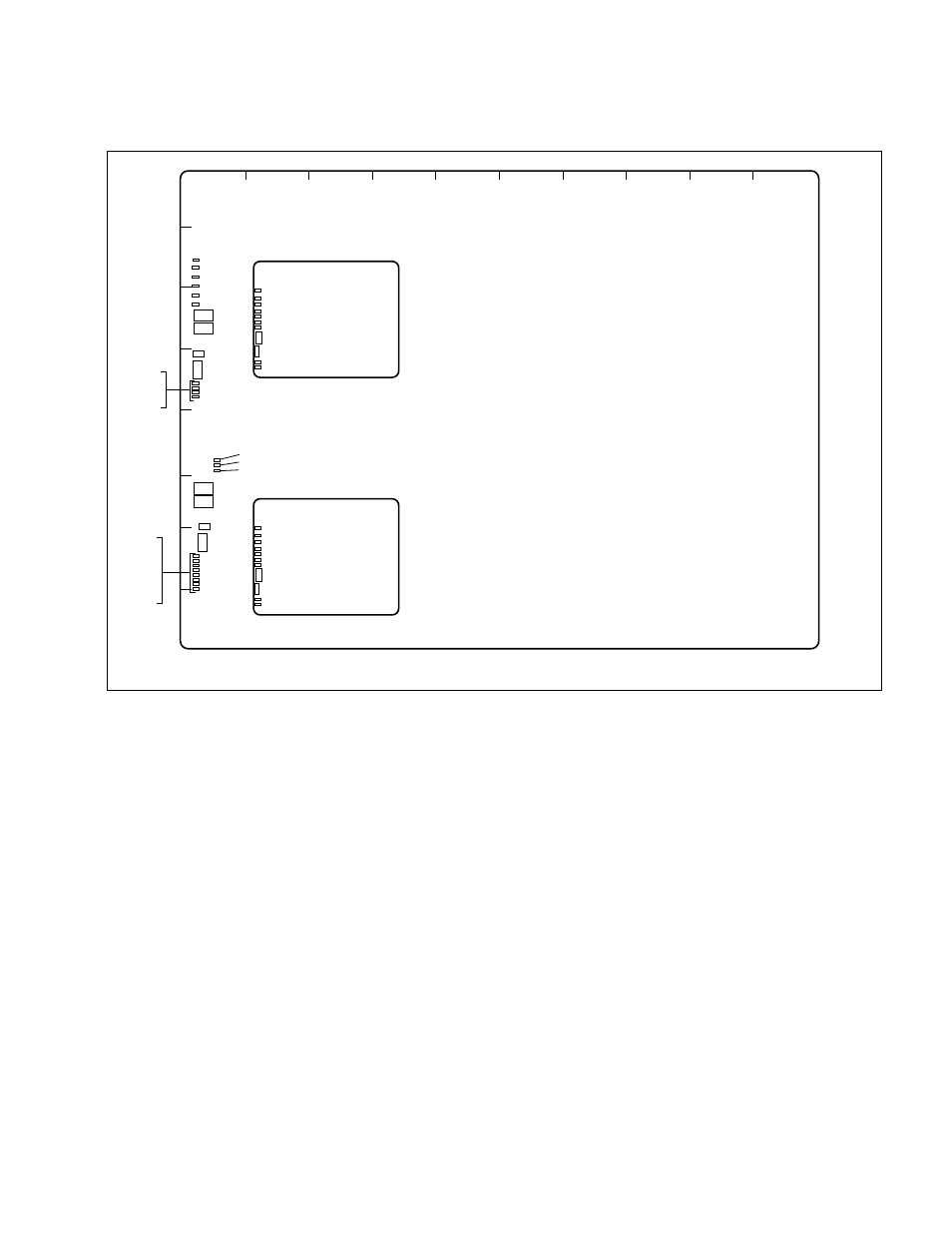

2. DVP-30A board (MKE-8040A)
D501 (A-2) :
+
+
+
+
+
3.3 V
+3.3 V power supply status indication.
Lit when
+3.3 V power is supplied.
D502 (A-2) :
+
+
+
+
+
2.5 V-1
+2.5 V-1 power supply status indication.
Lit when
+2.5 V-1 power is supplied.
D503 (A-3) :
+
+
+
+
+
1.5 V-1
+1.5 V-1 power supply status indication.
Lit when
+1.5 V-1 power is supplied.
D504 (A-2) :
+
+
+
+
+
12 V
+12 V power supply status indication.
Lit when
+12 V power is supplied.
D505 (A-2) :
+
+
+
+
+
2.5 V-2
+2.5 V-2 power supply status indication.
Lit when
+2.5 V-2 power is supplied.
A side/Component side
D506 (A-3) :
+
+
+
+
+
1.5 V-2
+1.5 V-2 power supply status indication.
Lit when
+1.5 V-2 power is supplied.
D701 (A-5) : BUS A status LED
Lit when CPU A accesses the FPGA.
D702 (A-5) : BUS B status LED
Lit when CPU B accesses the FPGA.
D703 (A-5) : READ status LED
Lit when CPU A or B makes the read access to the FPGA.
D1001 (A-7) : BOOT DONE status LED
Lit when IC108 starts up.
D1002 (A-7) : DLKD status LED
Lit when the DLL (Delay Locked Loop) of the FPGA is
locked. If the LED does not light, the FPGA may be
defective.
D1003 (A-7) : RCB DONE status LED
Lit when the FPGA configuration is complete.
