11 EN
Additional Information

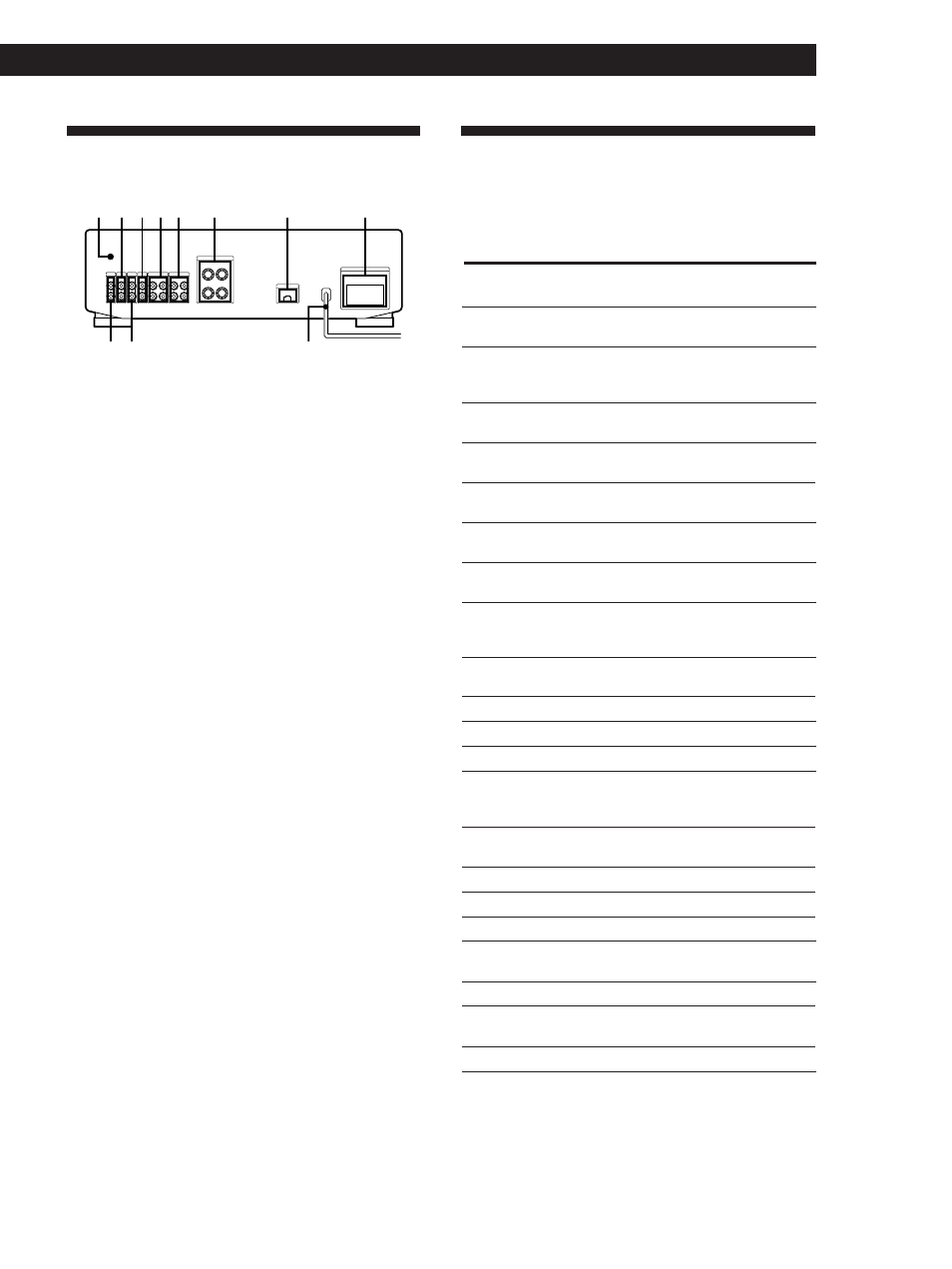

Rear Panel Descriptions
8 7 6 5 3 4 2 1
9 0 !¡
IN REC OUT IN
PHONO
IN
TUNER
IN IN RECOUT IN
CD AUX TAPE2/MD TAPE1/DAT
EON CONTROL
AC OUTLET
SPEAKERS
L
R
IMPEDANCE USE 4 - 16 Ω
SWITCHED 100W MAX +
–
+
–
R L SIGNAL GND y
IN
1 y (SIGNAL GND)
2 TUNER
3 AUX
4 TAPE2/MD
5 TAPE1/DAT
6 SPEAKERS
7 EON CONTROL IN (TA-FE520R only)
8 AC OUTLET (unavailable on the TA-FE320R (U.K.
model))
9 Mains lead
!º CD
!¡ PHONO
Remote
Button(s) For operating
the Function
*Automatic Music Sensor
Remote Button Descriptions
You can use the supplied remote to control other Sony
audio components equipped with the g (remote
control sensor) mark.
1/u Amplifier Turns the amplifier on and
off.
FUNCTION
CD Amplifier Selects input signal from
the CD jacks.
TUNER Amplifier Selects input signal from
the TUNER jacks.
PHONO Amplifier Selects input signal from
the PHONO jacks.
TAPE1/DAT Amplifier Selects input signal from
the TAPE1/DAT jacks.
TAPE2/MD Amplifier Selects input signal from
the TAPE2/MD jacks.
AUX Amplifier Selects input signal from
the AUX jacks.
TUNER
PRESET +/– Tuner Scans and selects preset
stations.
CD
( CD player Starts playback.
P CD player Pauses playback.
p CD player Stops playback.
=/+ CD player Locates tracks (AMS*).
D.SKIP CD player Skips a disc (for CD player
equipped with a multi-disc
changer).
MD
( MD deck Starts playback.
P MD deck Pauses playback.
p MD deck Stops playback.
=/+ MD deck Locates tracks.
TAPE DECK A/B
9/( Deck A or B Starts playback.
p Deck A or B Stops all tape operations.
0/) Deck A or B Fast-forwards or rewinds
the tape.
VOL +/– Amplifier Controls the volume.
