11-3

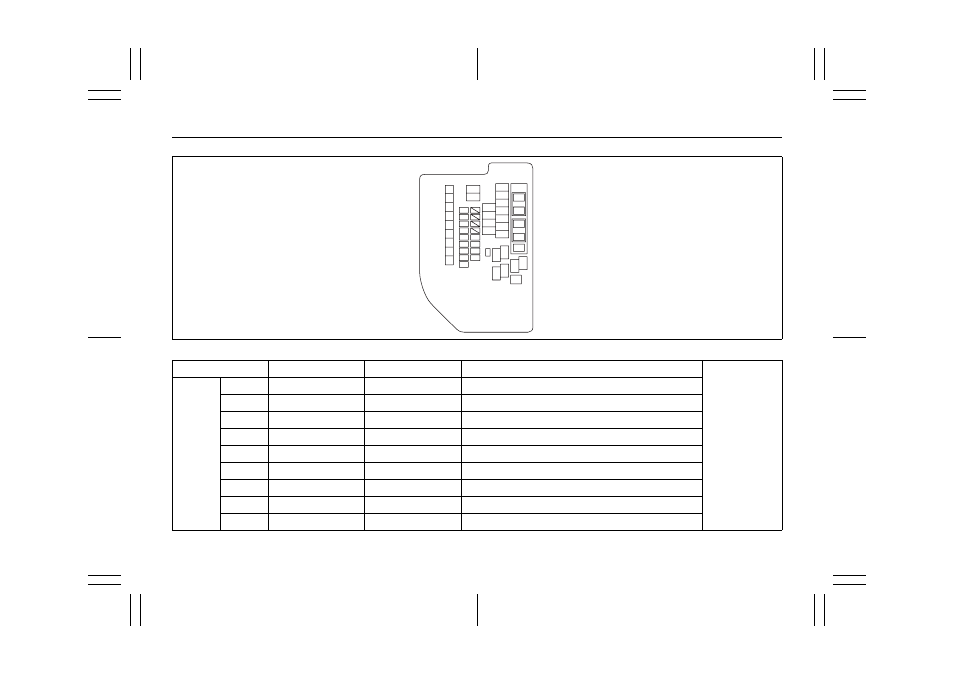

FUSES AND PROTECTED CIRCUITS
57L20-03E
57L71037
COLOR/SIZE (AMPS) FUSE NAME PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX
(18) WHITE (25) B/U Back up
(19) BLUE (15) H/L LO L Head light low (Left)
(20) BLUE (15) H/L LO R Head light low (Right)
(21) BLUE (15) H/L L Head light high (Left)
(22) BLUE (15) H/L R Head light high (Right)
(23) BLUE (15) AT CVT
(24) YELLOW (20) FR FOG Front fog light
(25) BLUE (15) O2 HTR O2 sensor heater
(26) BLUE (15) HORN Horn
1
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
29
30
31
32
33
34
27
28
37
38
39
40 41
44
43 42
45
35
36
18
2
3
4
5
6
7
8
9
USE THE DESIGNATED
FUSES AND RELAYS ONLY
Fuses and Protected Circuits: 7
