10 Installing the Interactive Whiteboard 99-00668-00 REV B0
10. In the same way, attach a bracket without a triangular notch to the bottom-left corner (when
you’re looking at the front of the overlay).
NOTE: To continue the installation, attach either a pen tray (see below) or a controller (page 13).
You attach the pen tray to threaded posts on the overlay. You then attach the MOD8 cable and
either a SMART USB adapter cable, a DB9-to-DB9 serial cable, or a WC2 Wireless Serial Adapter,
depending upon what you ordered.
Optional Security Procedure
If you want an additional level of security, you can install a 1/4-20 × 1/2" security screw on each
corner bracket.
NOTE: SMART Technologies doesn’t supply these screws.

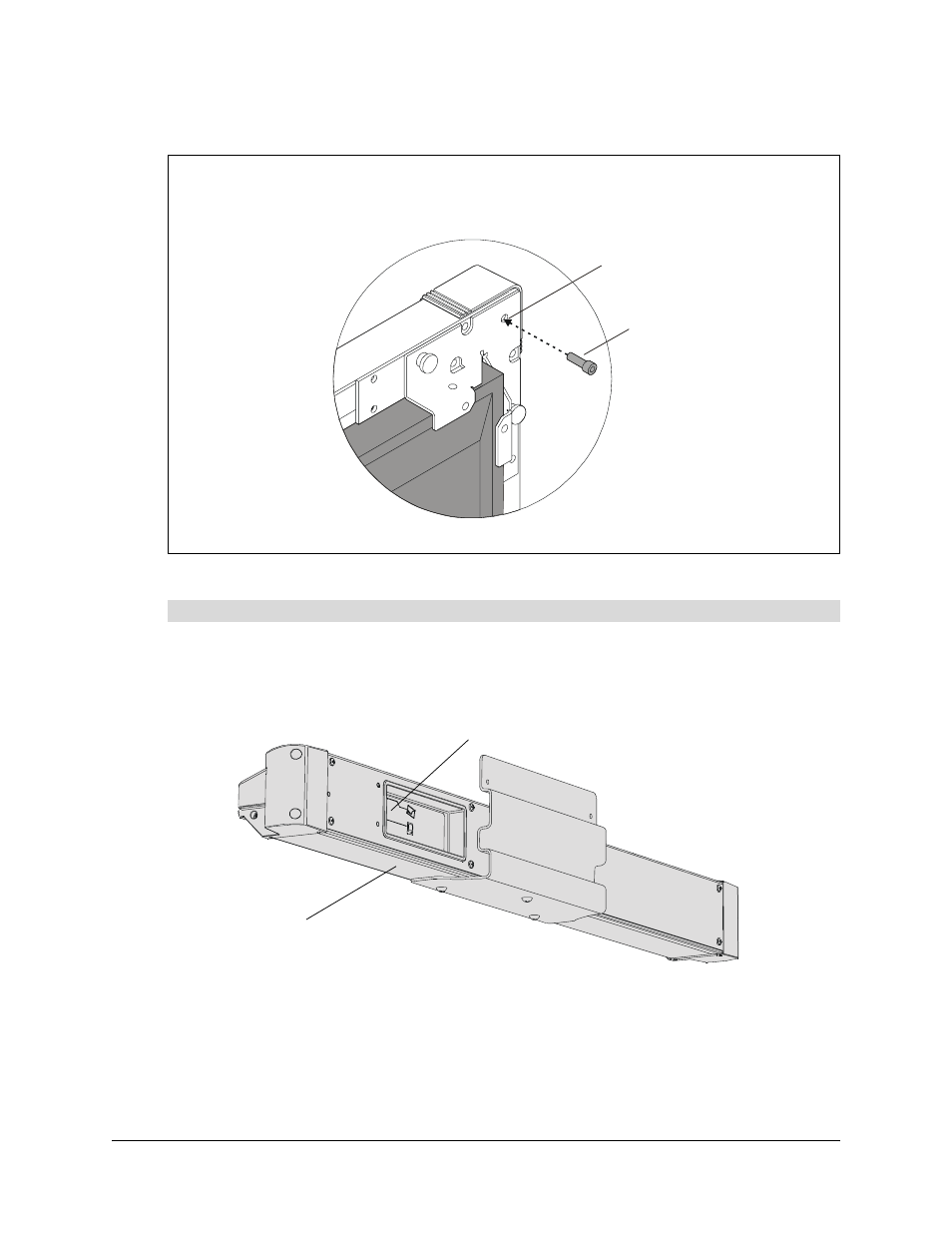

To attach the pen tray
Supply and install
a security screw in
each corner
Security Screw
Hole
Pen Tray
You attach the appropriate
cables here.
