Watching a vcr image, Using external equipment, Connecting a vcr – Sharp Aquos LC 37HV4U User Manual

Page 44: Displaying a vcr image, Input source tv input1 input2 input3 input4 pc, Avc system (rear view) vcr

Using external equipment

AVC System (rear view)

VCR

AV cable
(commercially available)

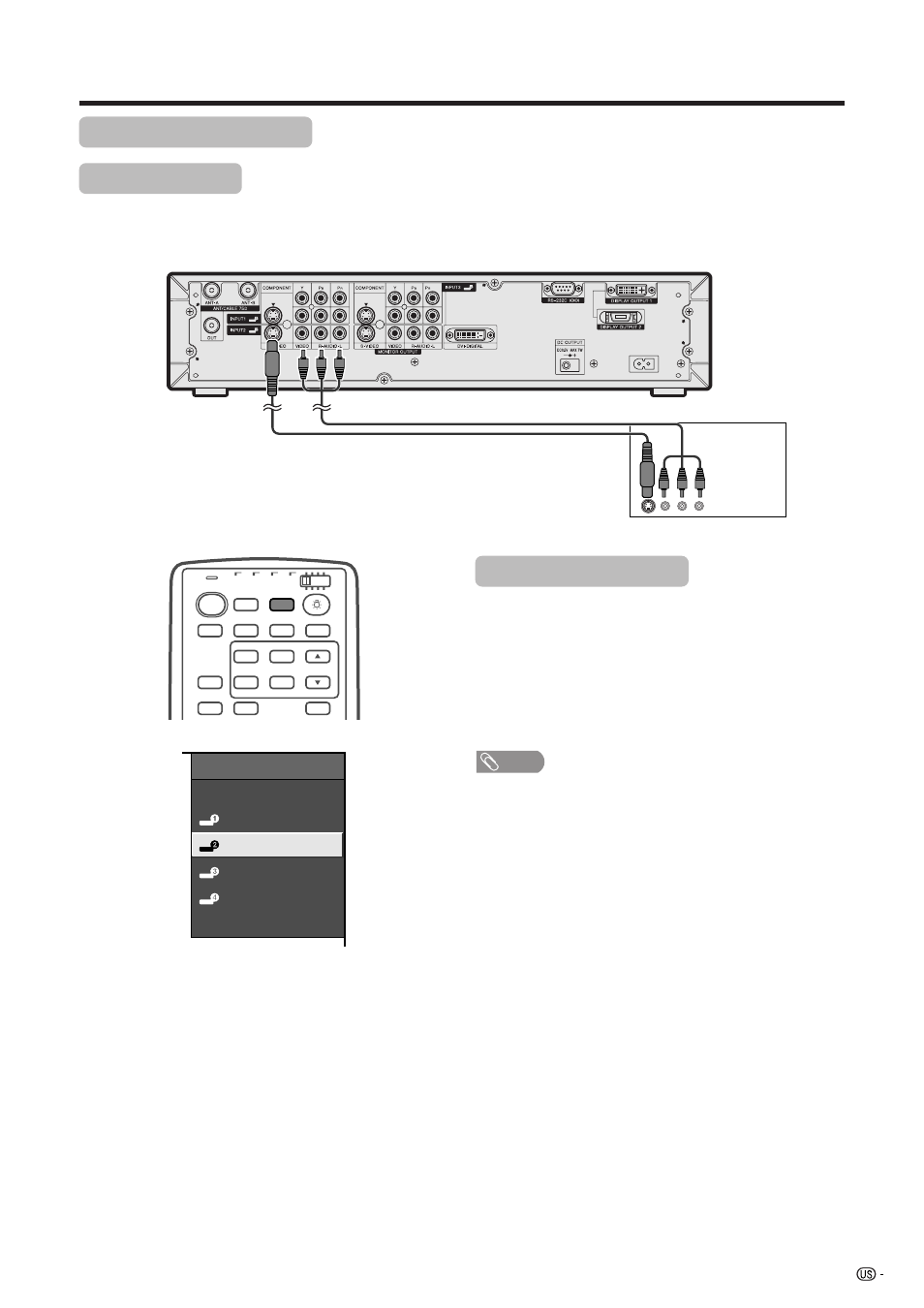

Watching a VCR image

Connecting a VCR

You can use the INPUT 2 terminal when connecting a VCR and other audiovisual equipment.

Displaying a VCR image

To watch a VCR image, select “INPUT2” from the
“INPUT SOURCE” menu using INPUT on the remote
control unit or on the Display. (See page 50.)

When connecting to the INPUT 2 terminals, select
“INPUT2”.

You only need to select the input source on the “INPUT
SOURCE” menu.

NOTE

• Each time INPUT is pressed, the input source toggles.
• Refer to your VCR operation manual for the signal type.

S-VIDEO cable
(commercially available)

INPUT

ANT-A/B

SURROUND

FRONT

TWIN

MODE

POWER

MTS


SELECT

SUB

TWIN CH

FREEZE

MODE

VIEW

SLEEP

LEARN

EDIT/

DISPLAY

INPUT

VCR

CBL
/SAT
/DTV

DVD
/LD

INPUT SOURCE

INPUT1

INPUT2

INPUT3

INPUT4
