Page 13

Preparation

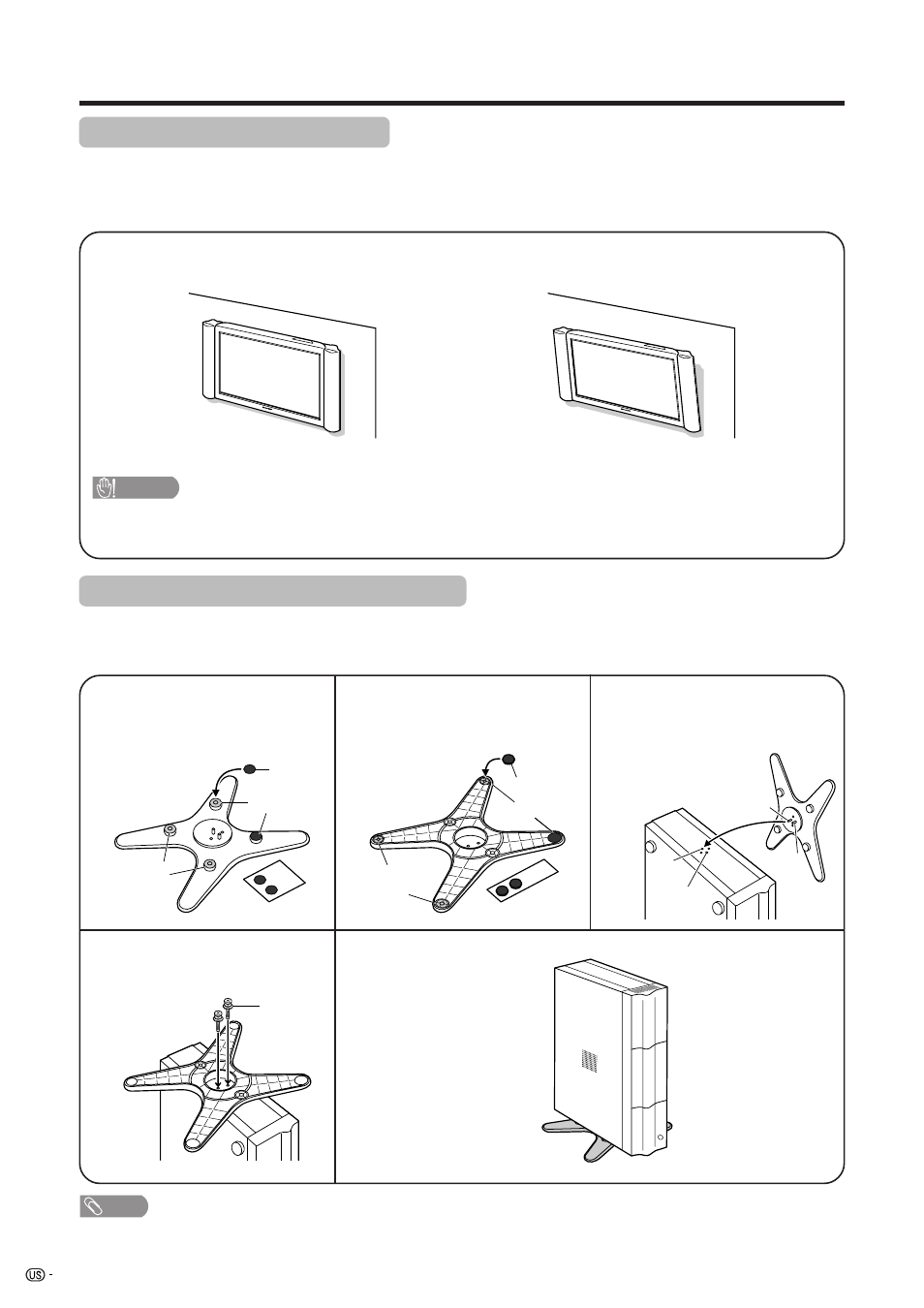

Setting the Display on the wall

Setting the AVC System with the stand

CAUTION

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel.

Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.

Using an optional bracket to mount the Display
• You can ask a qualified service personnel about using an optional AN-37AG1 bracket to mount the Display

to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Vertical mounting

Angular mounting

Hanging on the wall

AN-37AG1 wall mount bracket. (See the bracket instructions for details.)

How to install the AVC System vertically using the stand unit.
• Use the supplied stand unit for installing the AVC System vertically in an upright position.

Stick each spacer to the
stand as shown.

Peel each spacer
away from the
paper and attach
to the four bulging
areas on the stand.

Attach each cushion to
the stand as shown.

Fit the stand to the AVC
System.

Peel each cushion
away from the
paper and attach
to the four areas at
the bottom.

Insert the stand into the AVC
System, making sure that the
thick and thin bulges of the
stand align with the big and
small holes on the AVC
System.

Stand
spacer

Bulge

Stand cushion

Thin bulge

Thick
bulge

Big hole

Small
hole

Attach the stand using the
stand screws as shown.

Stand screw

The AVC System installed
vertically with the stand.

NOTE

• When mounting the AVC System vertically, always use the supplied stand. Be careful not to block vent holes when

standing up directly on the floor or a flat surface as this can result in equipment failure.

Attaching point

Bulge
