12 9.65 LC TREADMILL
ASSEMBLY

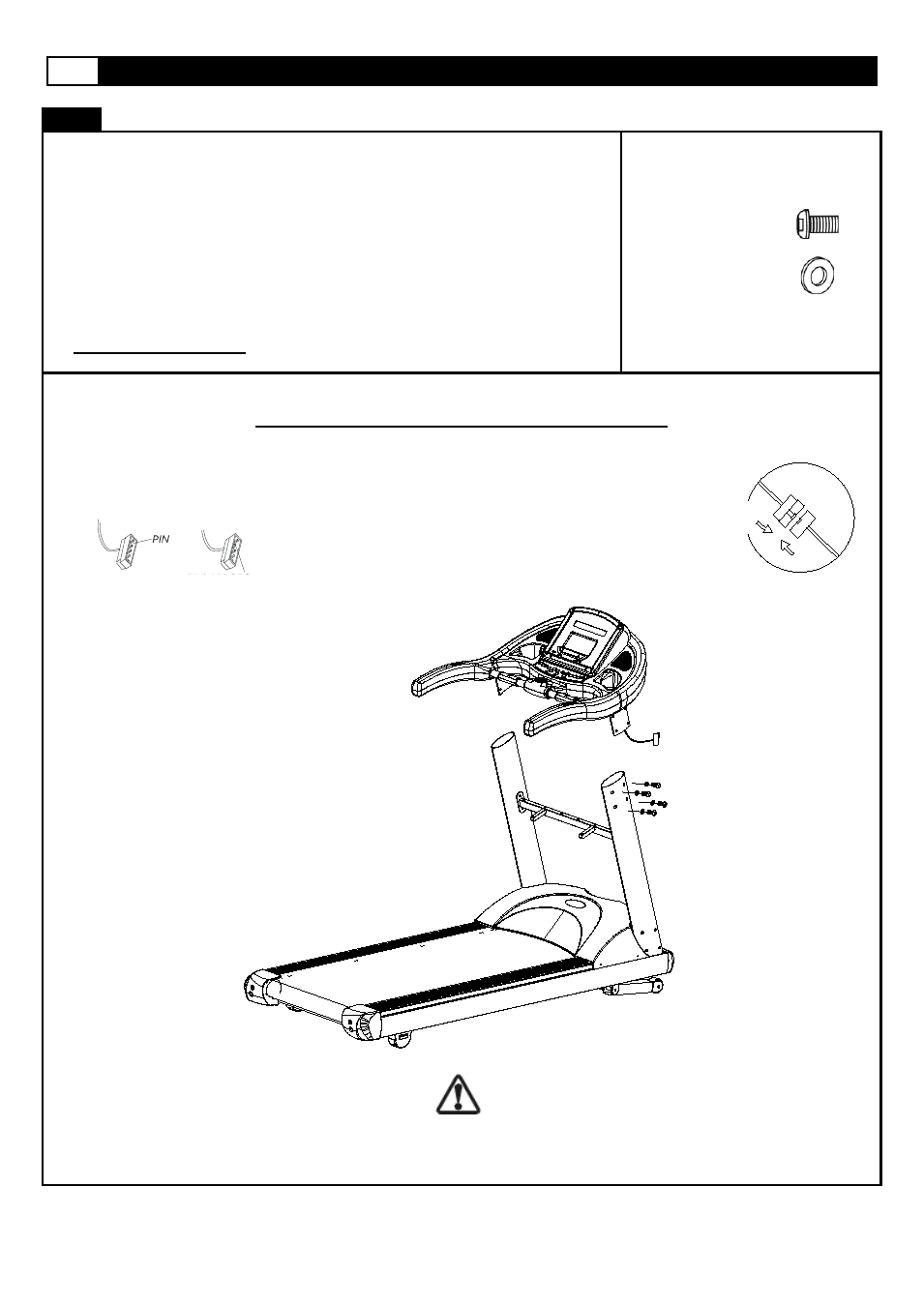

STEP2: Attach Console to Left and Right Uprights
1). Connect the Upper Console Wire (38) from the console set to Lower Console
Wire (44) in the right upright, Then place the excess wire and the connectors into
right upright.
2). Place the entire console set onto the uprights, and secure the left side using 4
x M10x20mm Bolt (61) with 4 x M10 Washer (62)
3). Repeat the above process for the Right side
4). Hand tighten bolts only
61 X8
62 X8
Caution Pinch point! Do not pinch wires between frame.
Ensure the pins are straight when connecting
Bolts should be hand tight only
