61 x8, 62 x2 – Smooth Fitness 9.65LC User Manual
Page 11
www.smoothfitness.com
11
ASSEMBLY – PLEASE READ ALL STEPS BEFORE BEGINNING YOUR WORK.

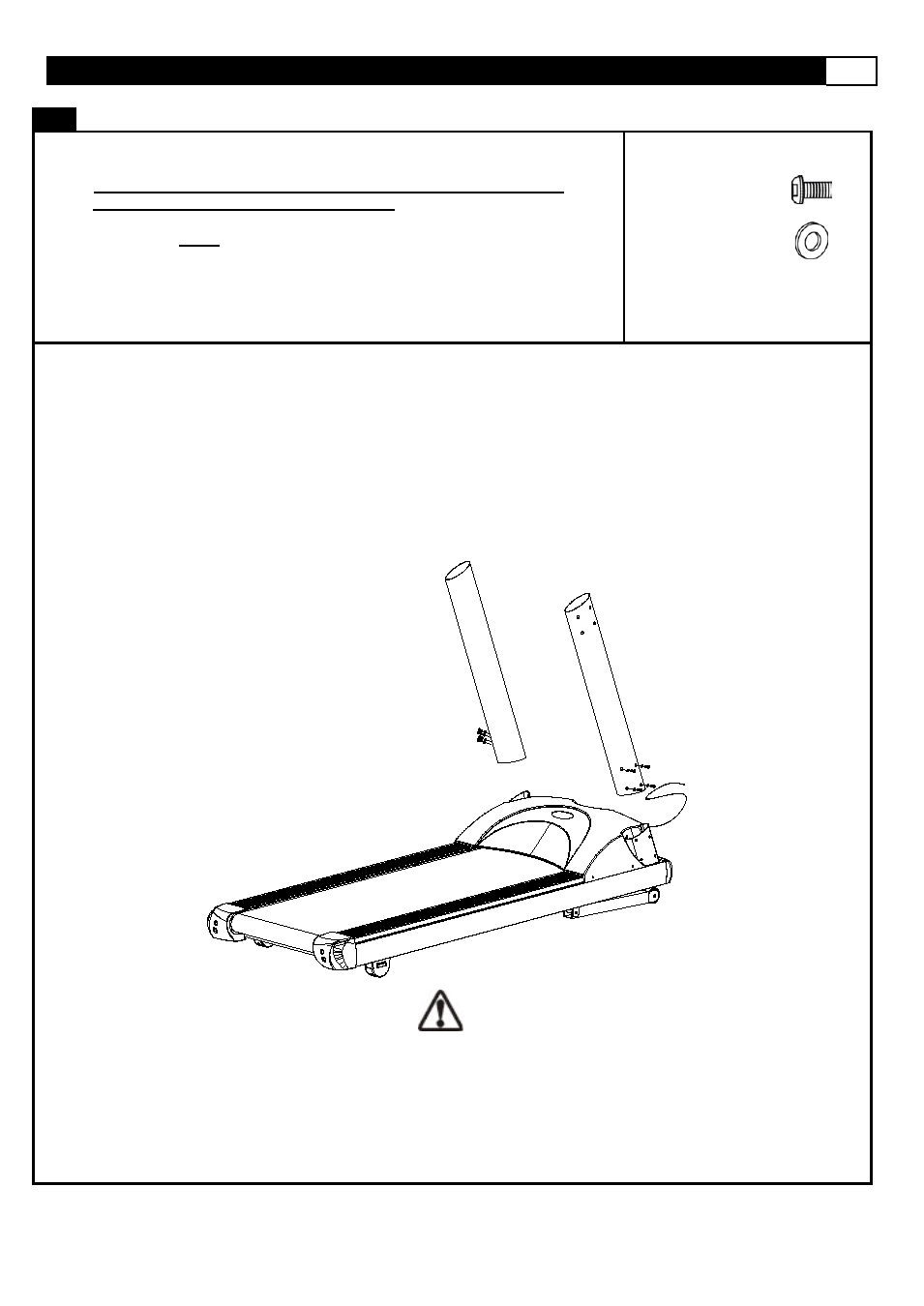

STEP1: Assemble Console Mast to Base Frame.
NOTE: Make sure all wires are recessed into the frame. DO NOT trap or
pinch. DO NOT tighten bolts until STEP2.
When attaching the Right upright (59) first feed the Lower Console Wire through
the upright.
1). Attach Left and Right Uprights into base frame, and secure using the 8
M10x20mm Bolts (61) 8 M10 Washers (62).
61
X8
62
X2
Bolts should be hand tight only
