10

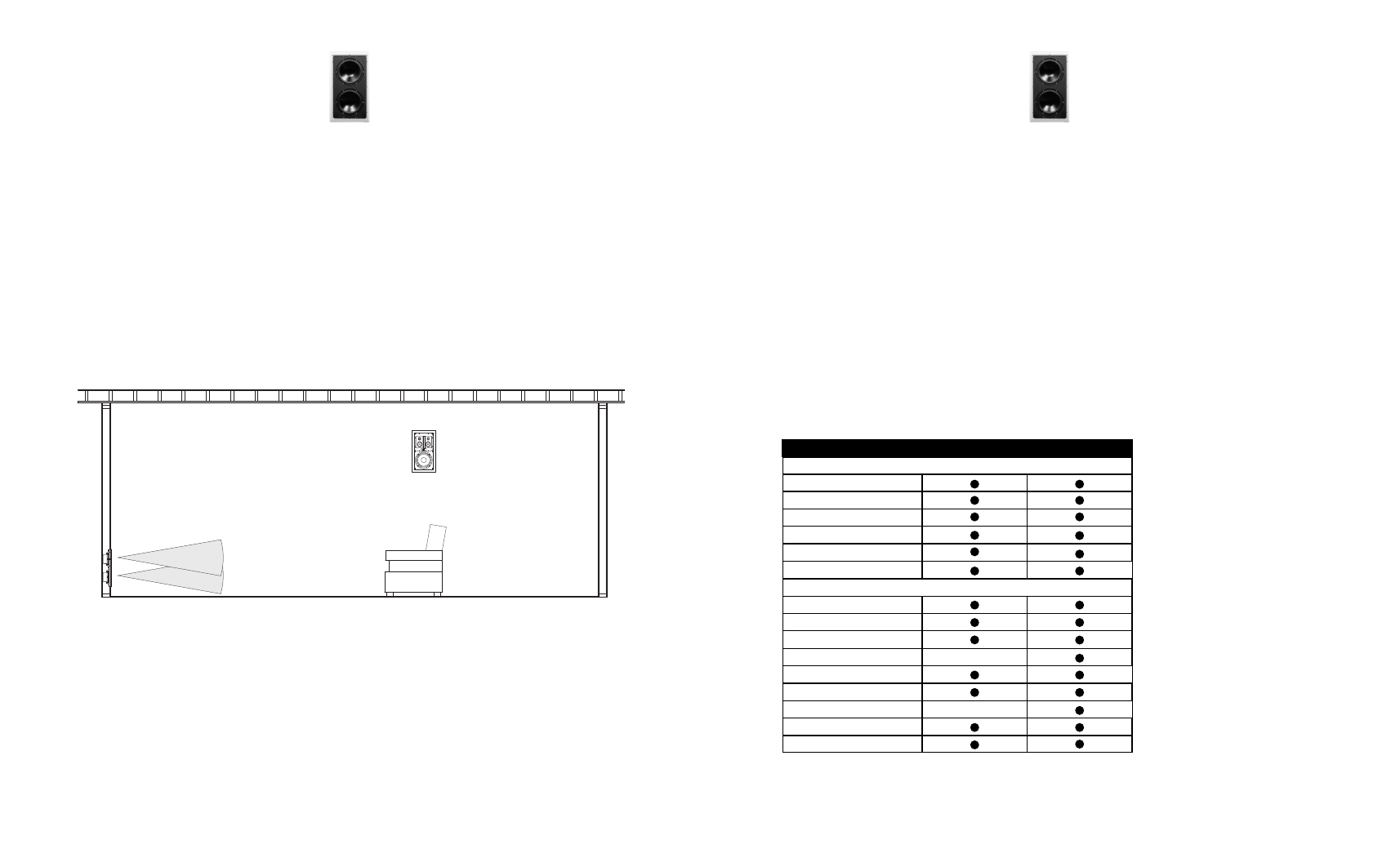

Locating your Cinema Two SUBs near a corner and close to the floor (Diagrams 1 and 2) provides the
acoustic reinforcement necessary to maximize efficiency and bass extension. The precise location of
your SUBs will be dictated by the space requirements of the included back boxes. Cinema Two SUBs
must be installed with their back boxes, which are integral to the speaker system.
Note the speaker cable size recommendations in the installation instructions. To assure optimum
performance of your subwoofers, avoid unnecessarily long cable runs.
The Cinema Two SUB System requires a nominal six inch depth (2" x 6") stud walls thus
accommodating the massive magnet structures of their drivers. Due to the high-energy output of
which they are capable, the Cinema Two SUBs must be installed with their 72" tall back boxes.
9
INSTALLATION QUICK START
Read “Getting The Most From Your Cinema Speakers” and plan speaker locations.
If this is your first installation of a Sonance Cinema system, read all of the installation instructions
before beginning.
The following gauge quality speaker wire is recommended for the Cinema Two SUBs
• 14 gauge for less than 30 feet
• 12 gauge for between 30 and 75 feet
• 10 gauge for greater than 75 feet
Verify adequate parts and tools for the installation:
PARTS LIST / TOOL LIST • CINEMA TWO SUB
2 Cinema Two SUB speakers
2 Grille mounting rings
2 Back Boxes
8 Angle brackets
NEW CONSTRUCTION RETROFIT
PARTS
2 Grilles
12 #8 x 3" mounting screws
Installation with back box
Gloves
Pencil
3/8" Bit
Stiff Wire (coathanger, fishtape)
Electric Drill (1/4" - 3/8" drive)
Wire Strippers
Torpedo Level
TOOLS
Keyhole or Drywall Saw
1" Flat Bit
SONANC E
Diagram 2
