9-2
9.1.1 Installation Method
(1) Installing the autocutter unit
Movable unit
Place the movable blade unit on the mechanism as shown in Figure 9-1.
Recommended screws: JIS 1188 pan head machine screw (small round type) M3
×6
Be careful not to damage the thermal head during installation.

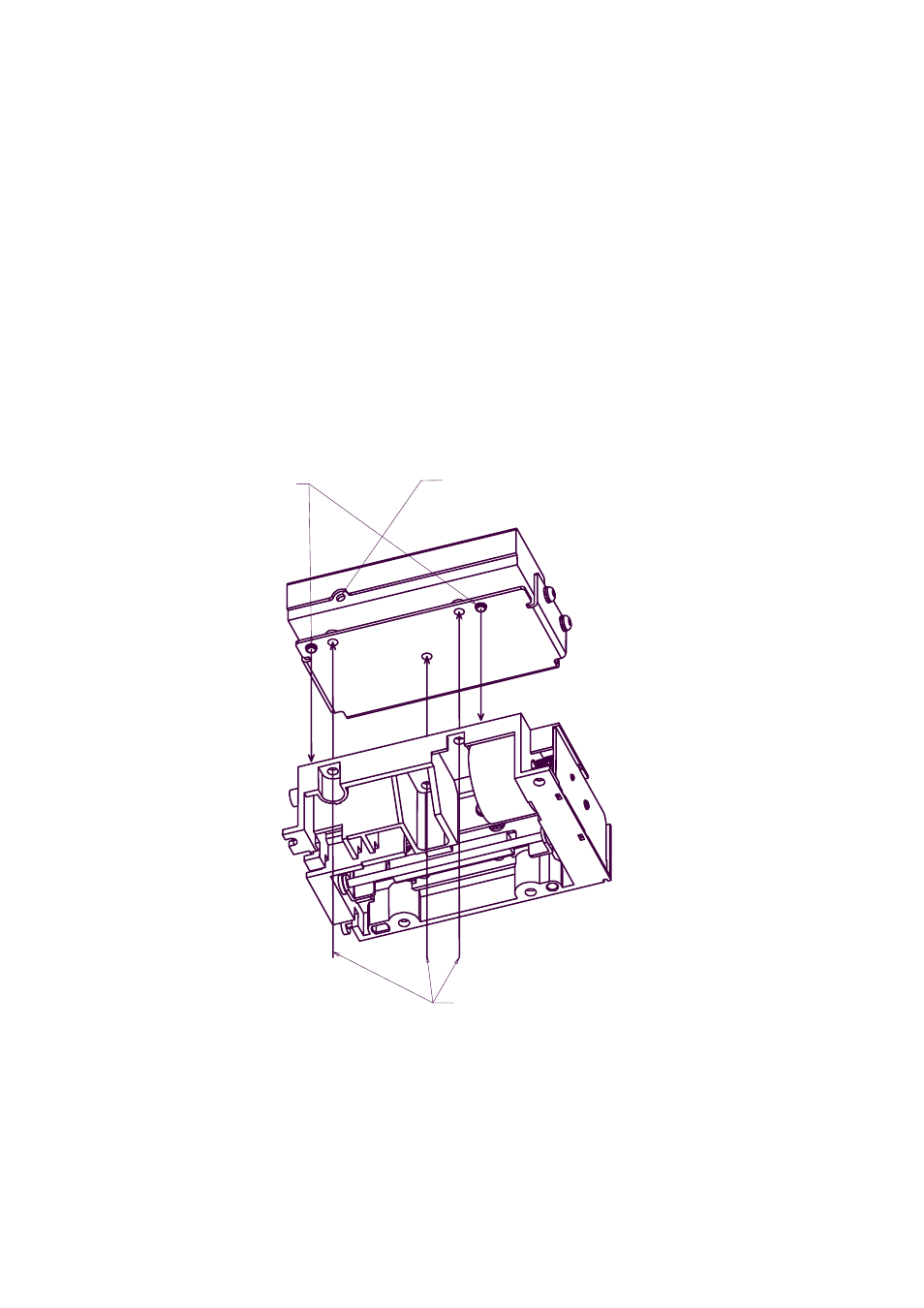

Figure 9-1 Installing the Autocutter Unit (Movable blade unit)
Positioning bosses
Screw hole for mounting the GND wire (M2.6)
Screws
