3.4.1 Motor Drive Circuit
(1) Sample Drive Circuit

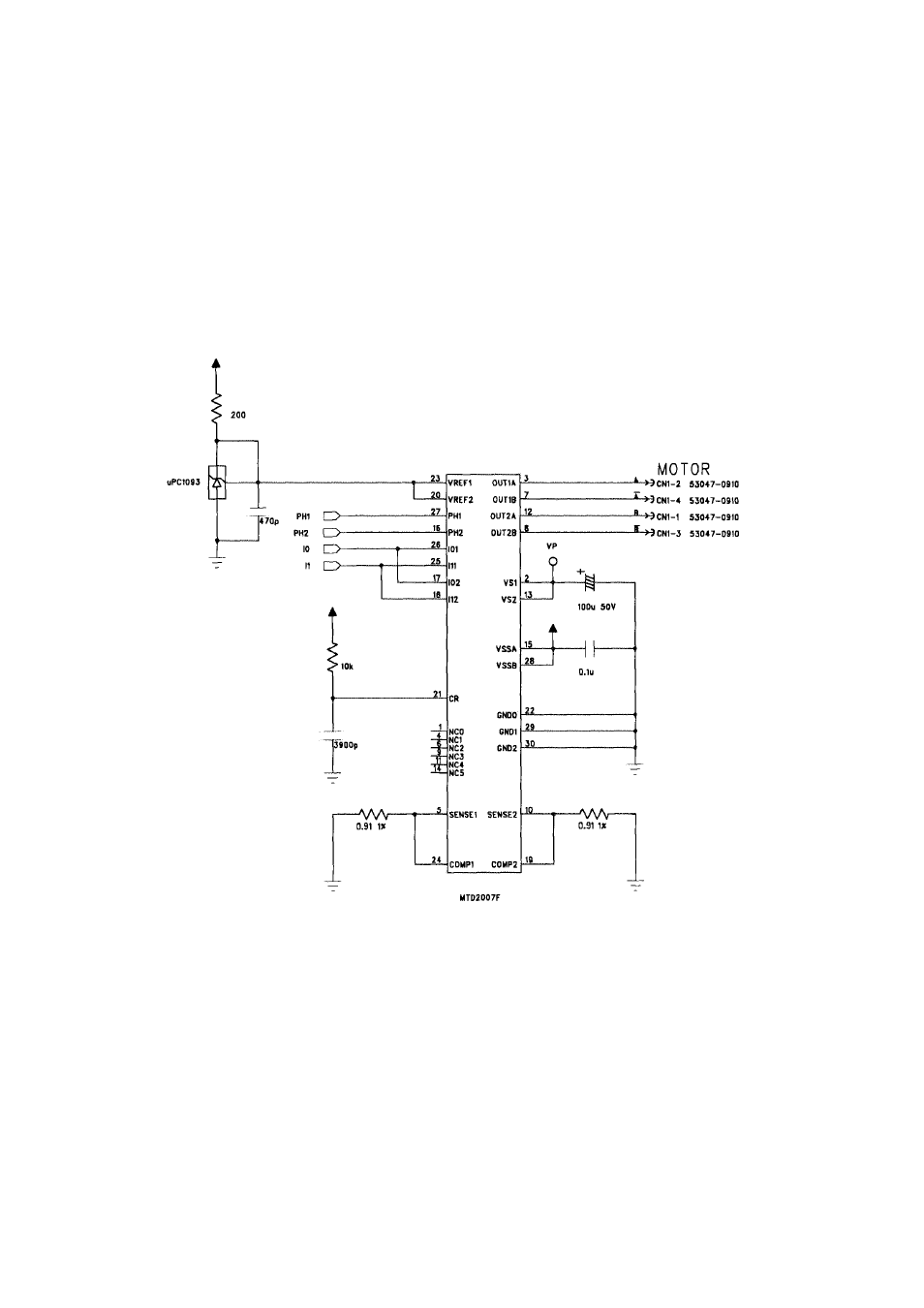

A sample drive circuit for the motor is shown in Figure 3-5.
Figure 3-5 Sample Drive Circuit
Recommended motor driver
Shin Kaden Kogyo MTD2007F
Rated voltage
Vp: 24 ±10%
Vcc: 5 ±5%
