Cheetah 15K.5 FC Product Manual, Rev. D

29

6.3

Power dissipation

ST3300655FC

Typical power dissipation under idle conditions in 4 Gbit operation is 13.3 watts (45.4 BTUs per hour).

To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure
7). Locate the typical I/O rate for a drive in your system on the horizontal axis and read the corresponding +5
volt current, +12 volt current, and total watts on the vertical axis. To calculate BTUs per hour, multiply watts by
3.4123.

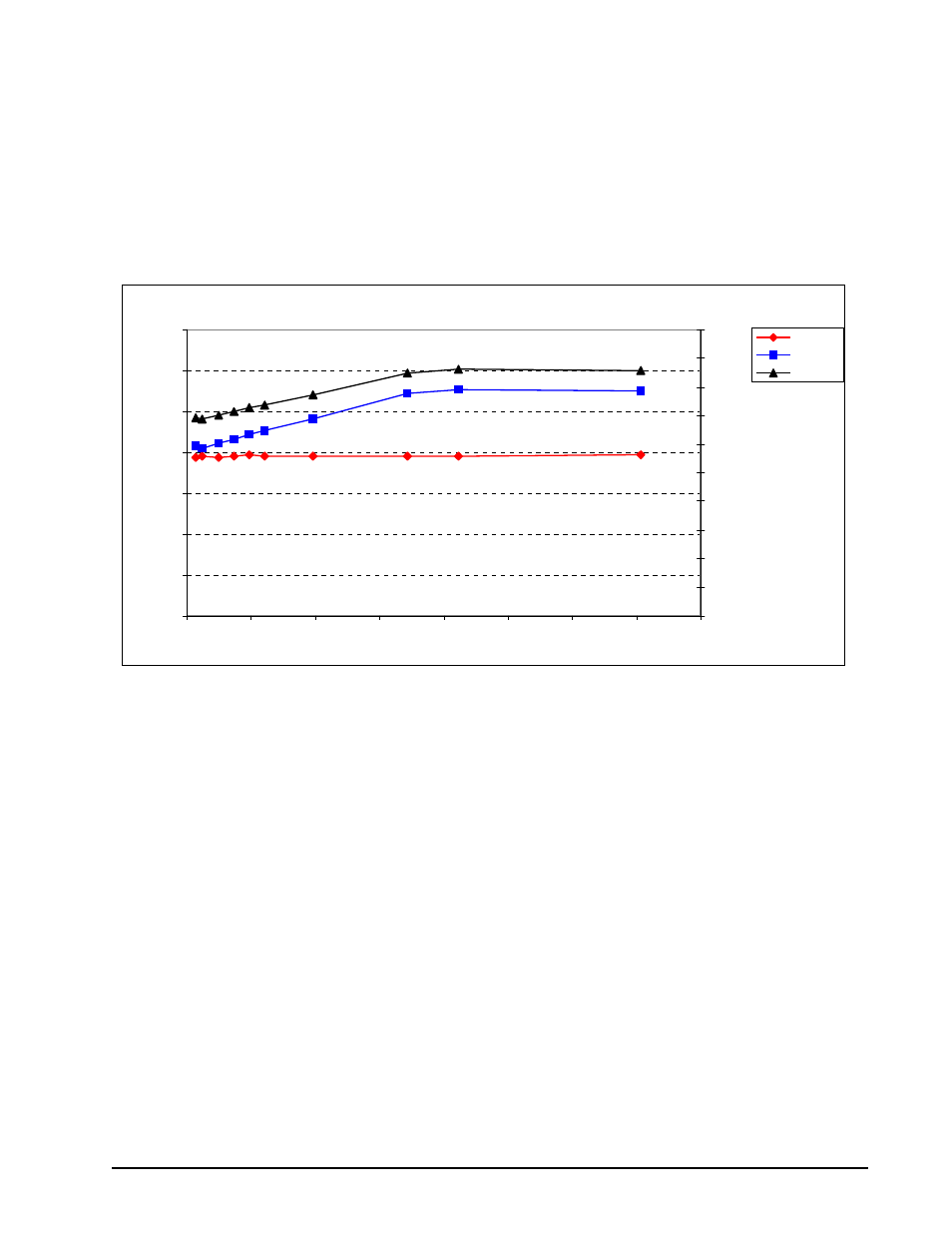

Figure 7.

ST3300655FC DC current and power vs. input/output operations per second at 4 Gbit

ST3300655FC CURRENT/POWER vs THROUGHPUT (FC - 4GB)

Random 8 Block Reads

0.000

0.200

0.400

0.600

0.800

1.000

1.200

1.400

0.0

50.0

100.0

150.0

200.0

250.0

300.0

350.0

400.0

I/Os per Second

Am

p

e

re

s

0.00

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

Po
w

e

r (

w

a

tt

s

)

5Vo lt A

12 Vo lt A

Watts
