2-16

Installation and Connection

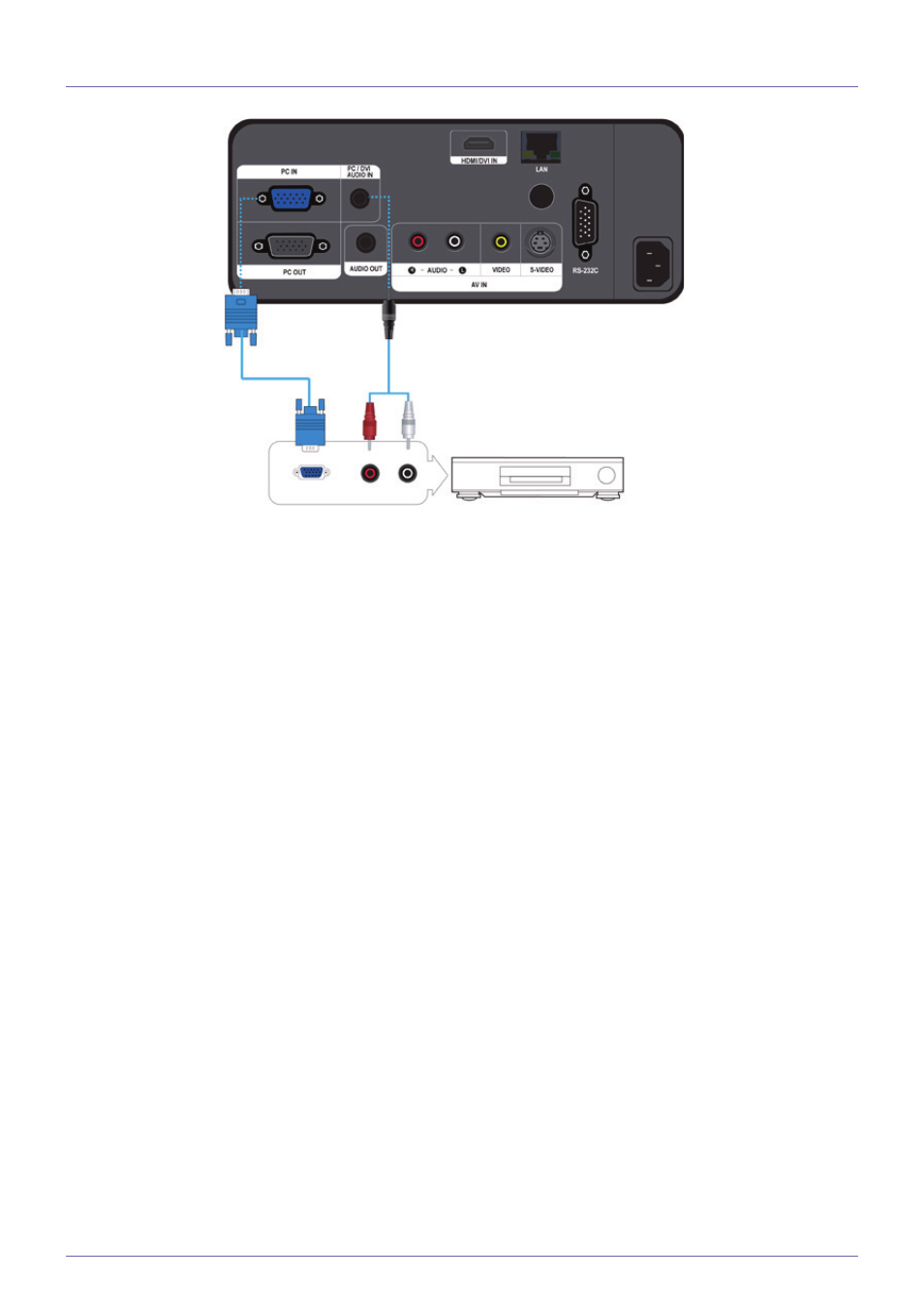

2-16 Connecting an AV device using a D-Sub cable

Make sure that the AV device and your projector are turned off.

1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.

- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-10.

2. Connect the [PC/DVI AUDIO IN] terminal at the back of the projector to the Audio out terminal of your AV device using an

audio cable (Not supplied).
