• 5 •

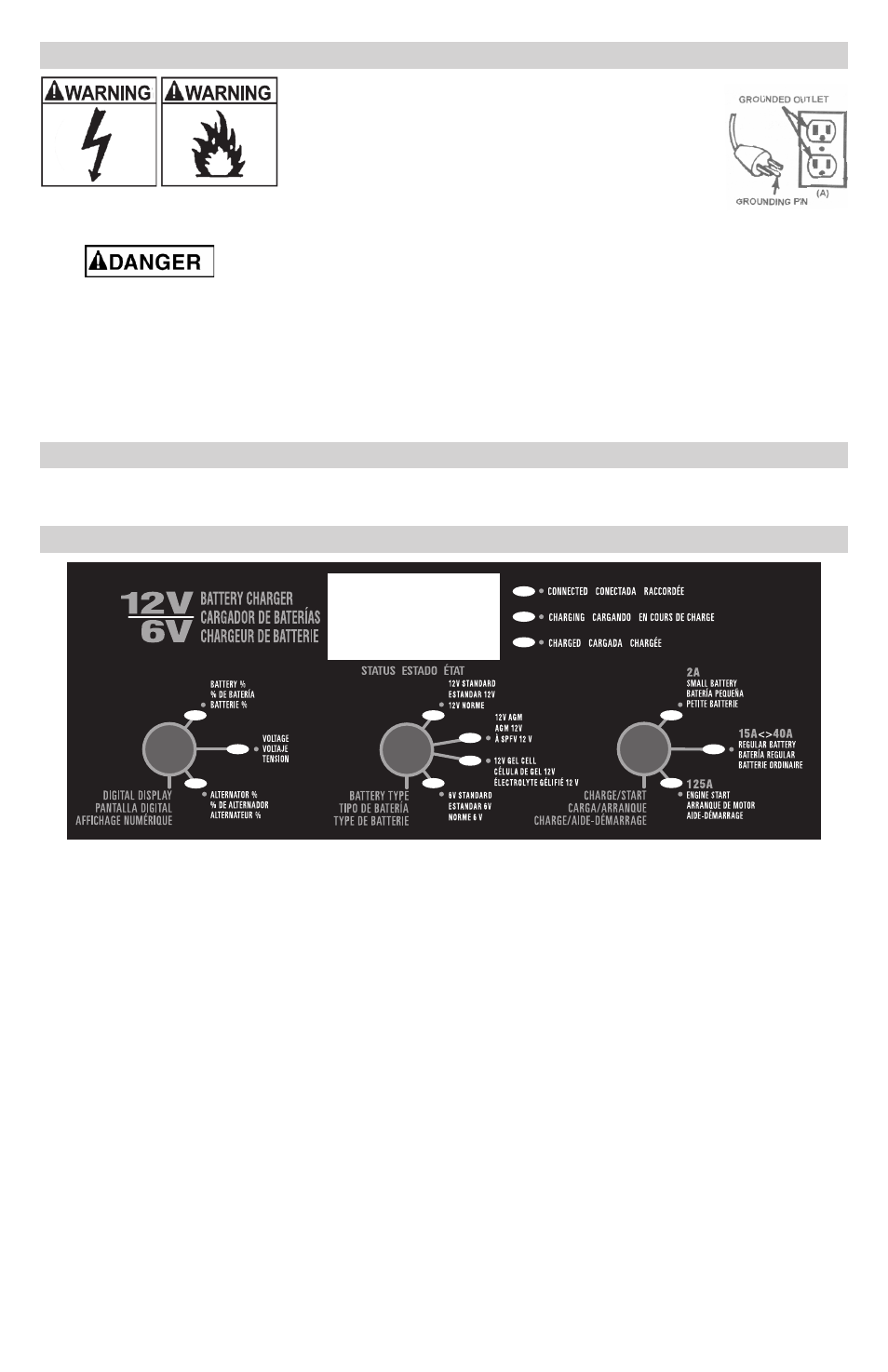

8. GROUNDING AND AC POWER CORD CONNECTIONS
RISK OF ELECTRIC SHOCK OR FIRE.
8.1 This battery charger is for use on a nominal
120-volt circuit and has a grounded plug that
looks like the plug illustrated. The charger must be
grounded to reduce the risk of electric shock. The
plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
The plug pins must fit the receptacle (outlet). Do not use with an ungrounded system.
8.2 Never alter the AC cord or plug provided – if it does not fit the outlet, have
a proper grounded outlet installed by a qualified electrician. An improper connection can
result in a risk of an electric shock or electrocution. NOTE: Pursuant to Canadian
Regulations, use of an adapter plug is not allowed in Canada. Use of an adapter plug in
the United States is not recommended and should not be used.
8.3 Recommended minimum AWG size for extension cord:
• 100 feet (30.5 meters) long or less – use a 16 gauge (1.31 mm 2 ) extension cord.
• Over 100 feet (30.5 meters) long – use a 14 gauge (2.08 mm 2 ) extension cord.
9. ASSEMBLY INSTRUCTIONS
Included with your charger are two cord wrap cleats for storage of the clip cables.
9.1 To install, align the two tabs with the two receptacles and push until you hear a snap.
10. CONTROL PANEL
Digital Display
The Digital Display gives a digital indication of voltage, % of charge or alternator output %,
depending on the Display Mode chosen.
Display Mode Button
Use this button to set the function of the digital display to one of the following:
• Battery % – The digital display shows an estimated charge percentage of the battery
connected to the charger battery clips.
• Voltage – The digital display shows the voltage at the charger battery clips in DC volts.
• Alternator % – The digital display shows an estimated output percentage of the
vehicle’s charging system connected to the charger battery clips as compared to a
properly functioning system.
Battery Type Button
Use this button to set the type of battery to be charged.
• Standard – Set the button to STANDARD. Used in cars, boats, trucks and motorcycles,
these batteries have vent caps for adding distilled water as needed, and are often
marked “Low Maintenance” or “Maintenance-free”.
• AGM (Absorbed Glass Mat) – Set the button to AGM. These batteries have electrolyte
absorbed in separators consisting of a sponge-like mass of matted glass fiber. AGM
batteries are sealed with special pressure valves and should not be opened.
• GEL – Set the button to GEL CELL. These batteries contain gelled electrolytes. They
are sealed with valves and should not be opened.
