SONANCE CABINET SUBWOOFERS
Voltage Selector
Sonance Cabinet Subwoofers are equipped with a Voltage Selector
switch that is factory-set to the proper position for the country where the
subwoofer is sold. Subwoofers sold in the United States are set for
115V operation; subwoofers sold in other countries are set for 230V
operation. The subwoofer’s proper operating voltage is shown on the
switch itself (see
Figure 4).
The Voltage Selector switch is not user-selectable, and has a plastic cover
to prevent its being accidentally changed. If you need to operate your
subwoofer on an AC voltage that is different from the one showing on the
switch contact your Authorized Sonance Dealer or Service Center.
Replacing the AC Fuse
Your subwoofer is factory-equipped with the following AC fuse:
1
1 1
1 5
5 V
V V
V ee rr ss ii oo nn ::
Sub 12-250 — 5
5A
A,, 2
25
50
0V
V sslloo--bblloo; Sub 10-150 and Sub 8-100 — 2
2A
A,, 2
25
50
0V
V sslloo--bblloo
2
2 3
3 0
0 V
V V
V ee rr ss ii oo nn ::
Sub 12-250 — 2
2..5
5A
A,, 2
25
50
0V
V sslloo--bblloo; Sub 10-150 and Sub 8-100 — 1
1A
A,, 2
25
50
0V
V sslloo--bblloo
To replace the fuse, unplug the power cord from the Power Cord Connector and use a
screwdriver to remove the fuse holder (see
Figure 5).
C
CAAU
UTTIIO
ON
N:: FFO
ORR C
CO
ON
NTTIIN
NU
UEED
D PPRRO
OTTEEC
CTTIIO
ON
N AAG
GAAIIN
NSSTT FFIIRREE,, RREEPPLLAAC
CEE
TTH
HEE FFU
USSEE W
WIITTH
H O
ON
NLLYY TTH
HEE SSAAM
MEE TTYYPPEE AAN
ND
D RRAATTIIN
NG
G..
Subwoofer Connections
Power Connection
Your Sonance Cabinet Subwoofer features a removable IEC power connector (see
Figure 5). (A power cord is included only
with 115V versions of the subwoofers.) Plug the female end of the power cord into the Power Cord Connector on the
subwoofer’s rear panel and plug the male end into a grounded wall socket. Do NOT plug the subwoofer’s power cord into
a convenience outlet on any other audio or video component.
IIM
MPPO
ORRTTAAN
NTT:: D
Doo nnoott pplluugg tthhee ppoow
weerr ccoorrdd iinnttoo tthhee w
waallll oouuttlleett uunnttiill aallll ssyysstteem
m ccoonnnneeccttiioonnss hhaavvee bbeeeenn
m
maaddee aanndd vveerriiffiieedd..
NOTE: If you need to use an extension cord, use only a heavy -duty (14-gauge or larger) extension cord
to avoid star ving the subwoofer of all the cur rent necessar y for full-power operation.
Figure 5:
Power Cord Connector
and Fuse Holder
115
115
Sub 10-150
Sub 8-100
Sub 12-250
Voltage
Setting

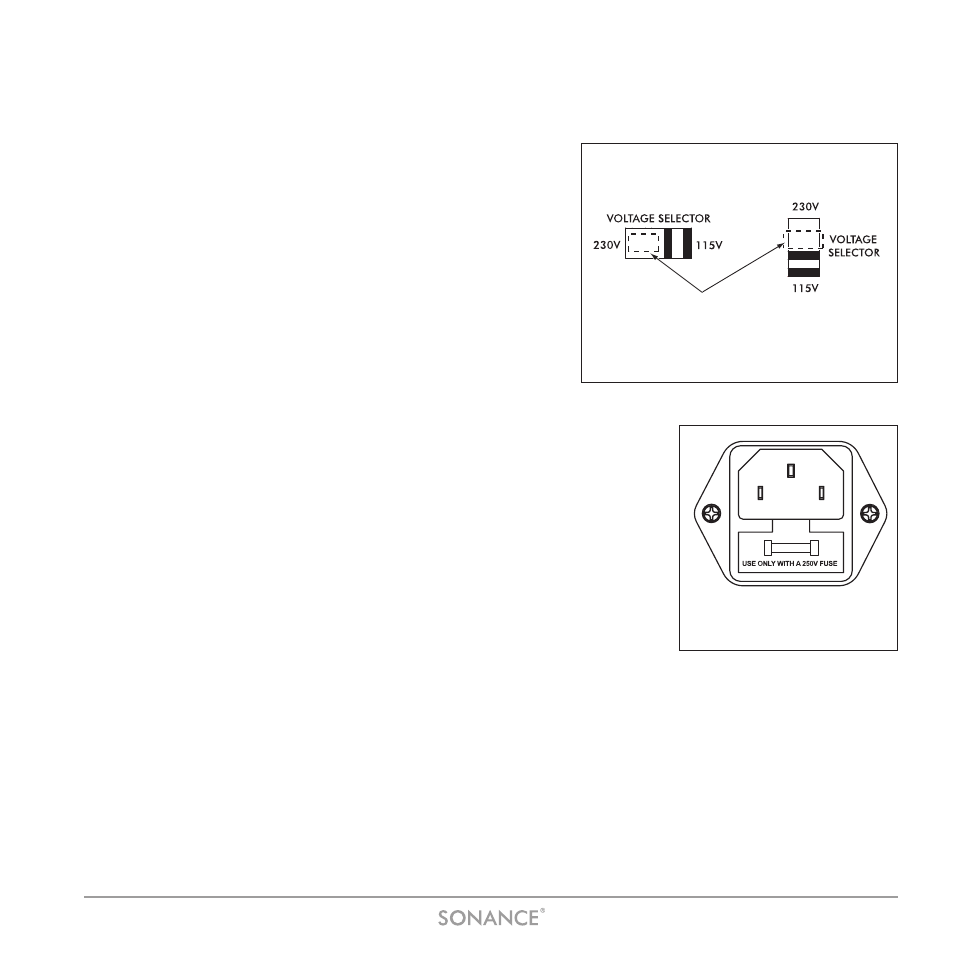

Figure 4:
Voltage Selector Switch Setting
