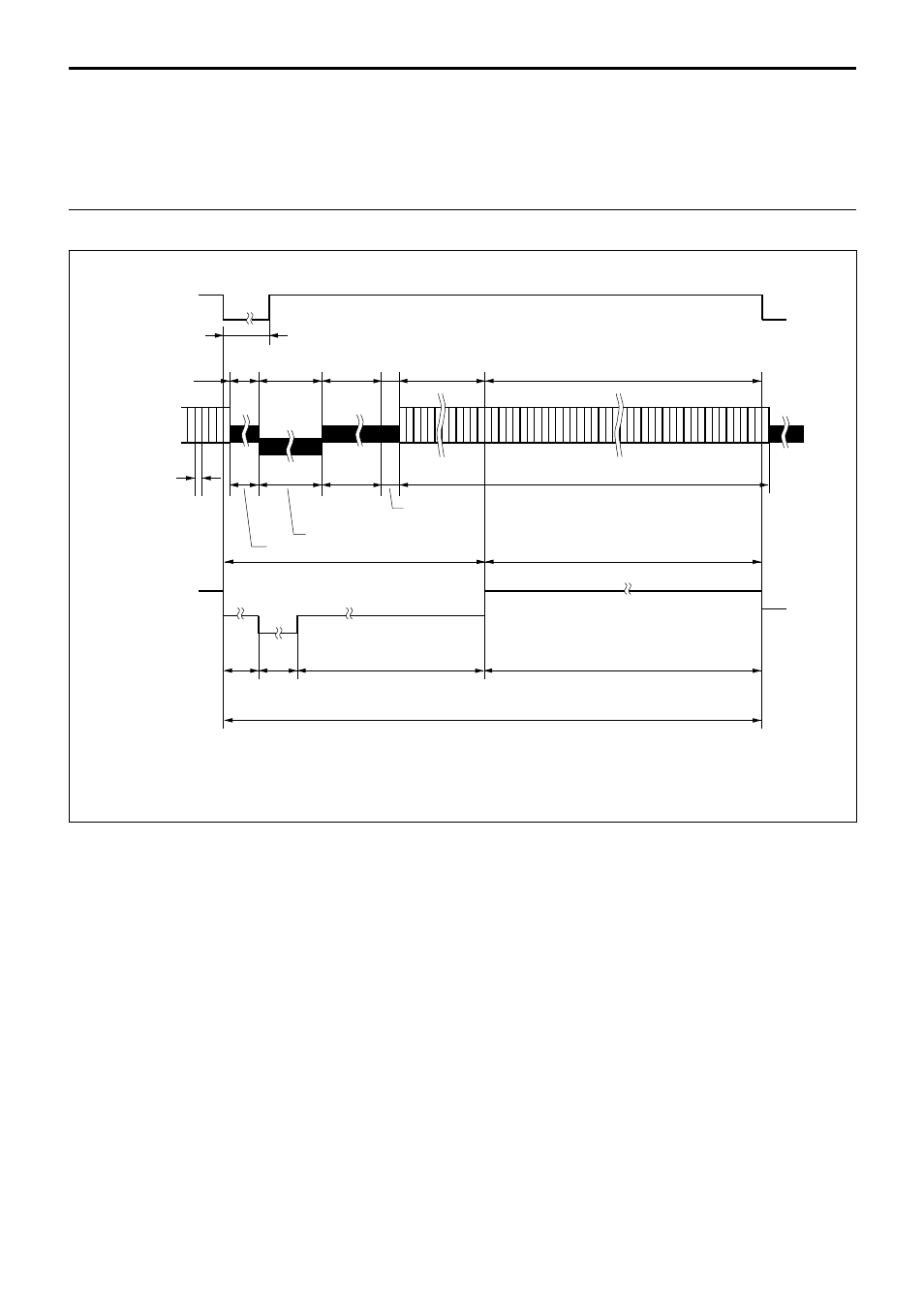

CCD Output Waveform Timing Chart
XC-EU50
Horizontal Output Waveform Timing Chart
91 (6.36 µs)
69.8 ns
40 77 22 3 15 752
752 (52.5 µs) 67 (4.68 µs)
HSYNC
70
(4.89 µs)
21
(1.47 µs)
HD
* Values without units indicate the clock counts.
CCD
output
signal
Camera video
output signal
(Typical value)
Optical black portion
Horizontal transfer stop period
Optical black
portion
Dummy
bits
Effective total pixels 768
Horizontal blanking period (11.0 µs) Output video period
One horizontal scanning period (1 H) 910 (63.56 µs)
