Samsung Color Dual Quad Network Observation System SSC21WEB User Manual
Page 18
Eng-18
1-4) CAMERA Composition and Connecting Method to
MONITOR

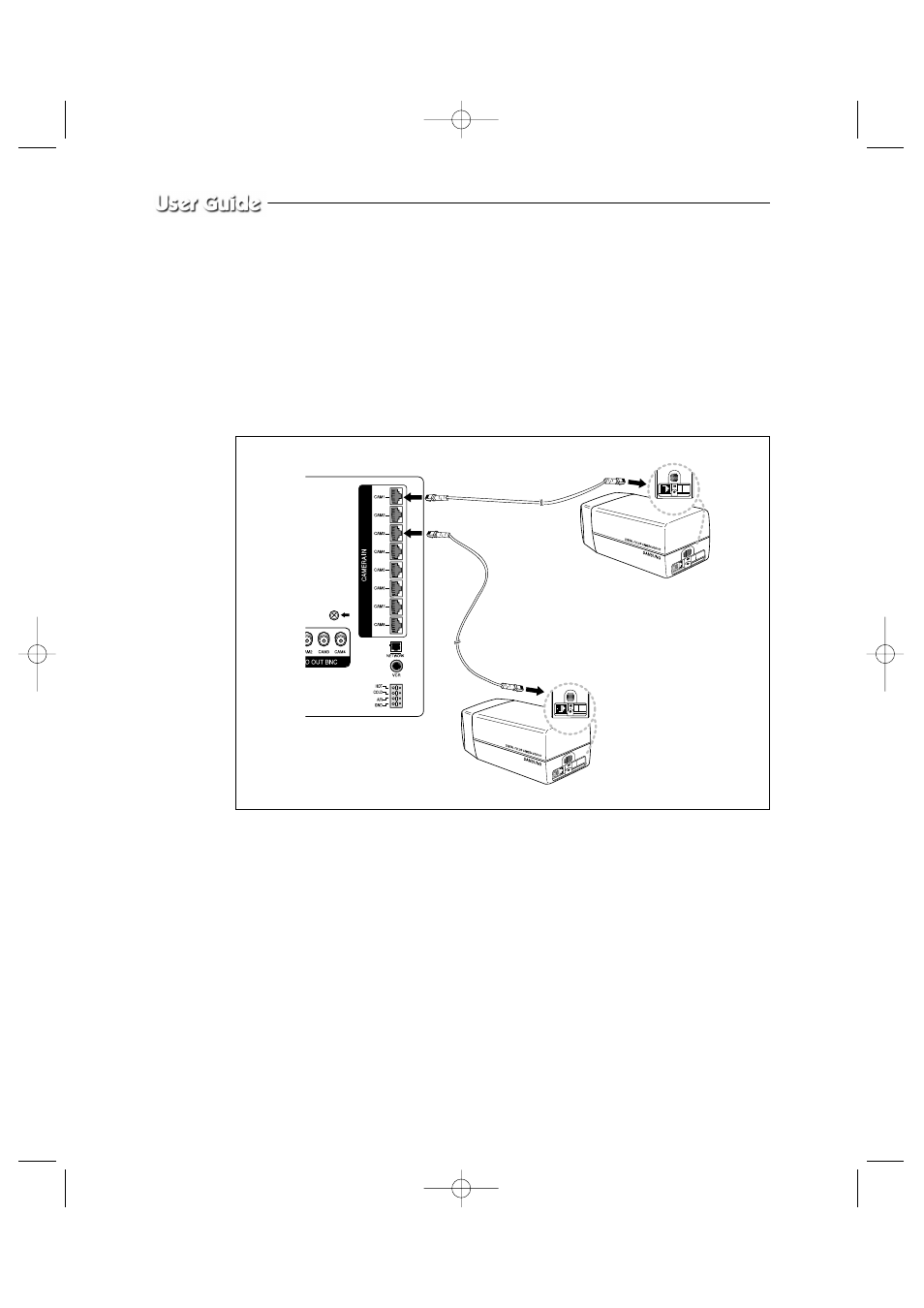

After positioning monitor and installing four cameras to a desired location, please connect
CAMERA to MONITOR through CAMERA CABLE (MCB-60) as shown in the below
figure. Please check whether or not it is properly connected.
Connection status checking method :
•
Turn on the monitor after connecting cameras, and check if camera image is displayed.
The initial screen mode of monitor is quad mode.
•
In case monitor and camera is not connected, OSD ‘L’(LOSS) will be displayed on screen.
SSC21WEB-1 2004.8.25 5:38 PM Page 18
