Step-by-step setup example of ip router, Netgear model wgr614v4 – Samsung Color Dual Quad Network Observation System SSC21WEB User Manual
Page 100

Eng-100
1. Click the “Router Status”
2. Click the WAN and LAN Port information.
Write down the WAN Port IP Subnet Mask number and the LAN Port IP Address number.
You will need it later when setting up the SSC21WEB.

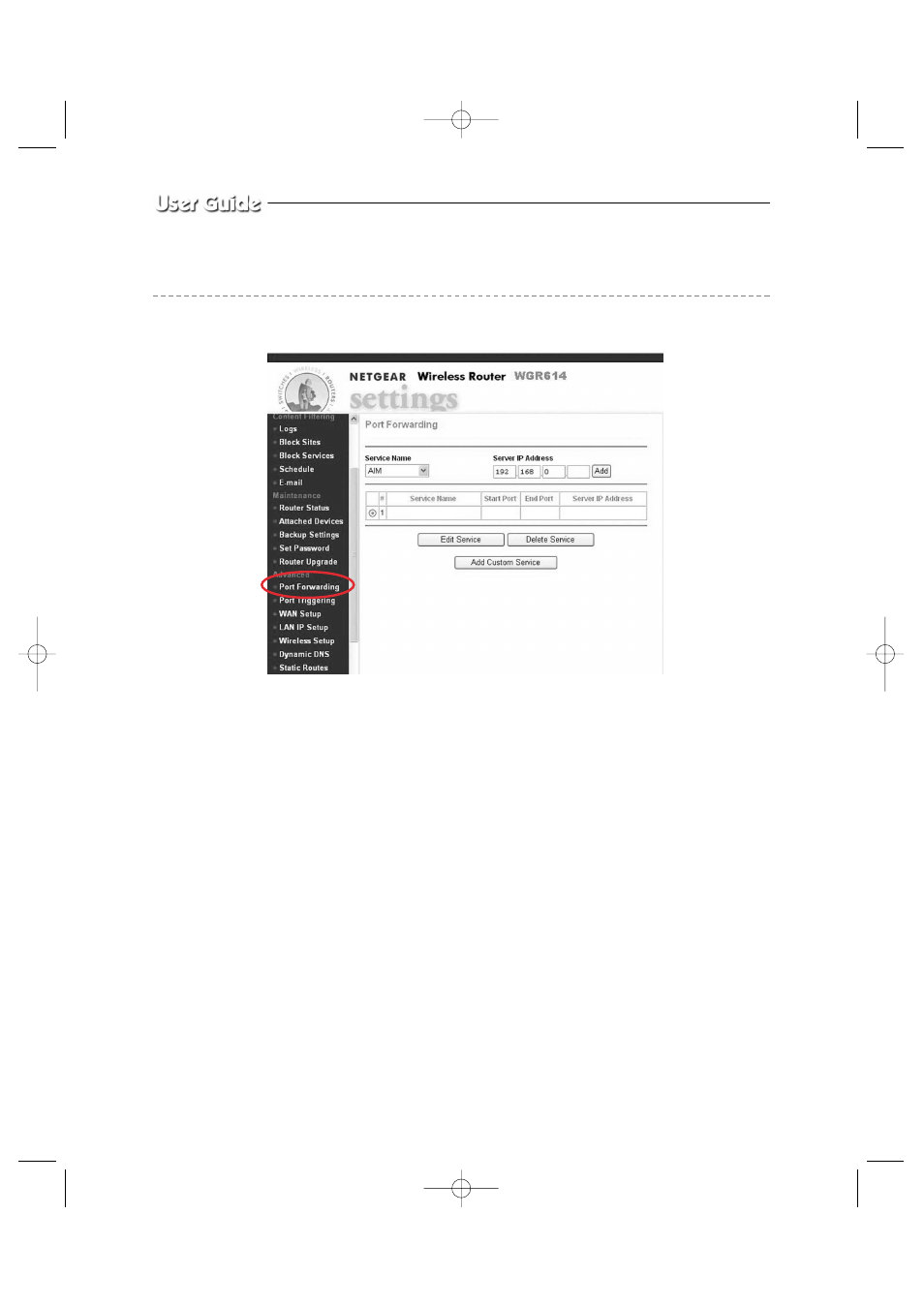

3. Click “Advanced” and “Port Forwarding”
4. Port forwarding (HTTP)
! Click “Add Custom Service”
@ Service Name : Set this to “HTTP”
# Start Port and End Port : Set both to “From 10000 to 65535”
$ Server IP Address : SETUP MENU -> 7. NETWORK SETUP -> Check IP from
network status to apply it identically to Private IP after DHCP
setup. (Eng-32 Setup)
* It is not in use by any other device connected to the IP Router including the Local PC.
% Make sure “Enable” is checked.
^ Click “Add”
5. Close browser window.
Step-by-Step Setup Example of IP Router
Netgear model WGR614v4
SSC21WEB
10000
10000
192.168.0.101
