Hookups
Hooking Up the Player
Follow Steps 1 to 4 to hook up and adjust the settings of the player.
Before you start, disconnect the power cords, check that you have all of the supplied accessories,
and insert the batteries into the remote (page 17).
Notes
• Plug cords securely to prevent unwanted noise.
• Refer to the instructions supplied with the components to be connected.

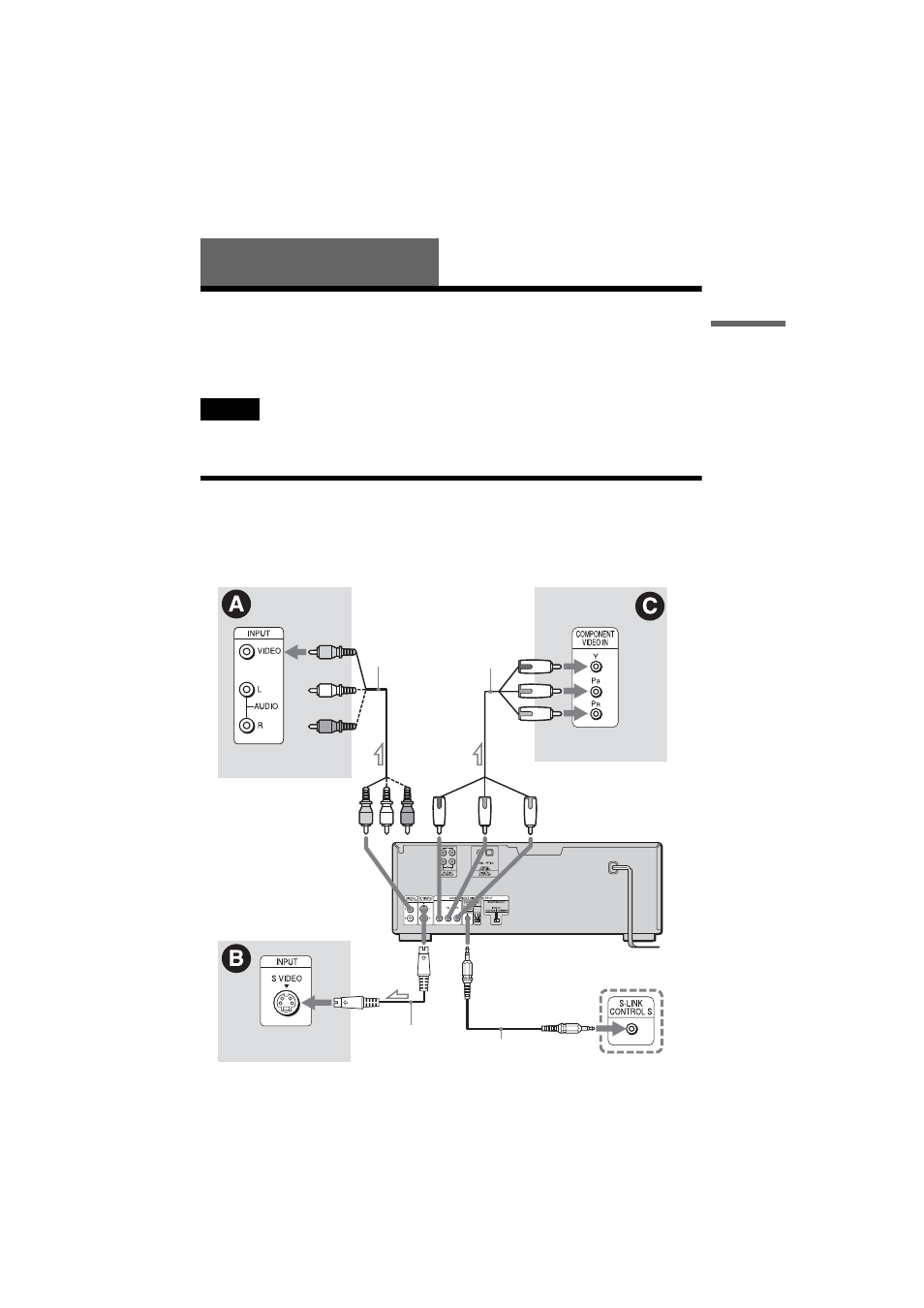

Step 1: Connecting the Video Cords
Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A through C, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
l : Signal flow
Component
video cord
(not
supplied)
(yellow)
Audio/video
cord (supplied)
TV, projector or AV
amplifier (receiver)
CD/DVD player
TV, projector or AV
amplifier (receiver)
(green)
S VIDEO cord
(not supplied)
TV, projector or AV
amplifier (receiver)
(red) (blue)
(yellow)
(green)
(blue)
(red)
to VIDEO OUTPUT
1 or 2
to S VIDEO
OUTPUT
1 or 2
to COMPONENT
VIDEO OUTPUT
TV or video component with
S-LINK (CONTROL S) jack
to S-LINK/
CONTROL S
IN (page 22)
S-link (control S)
cord (not supplied)
c continued
