Sanyo SC-X1000P - Manual (Page 8)

- 8 -

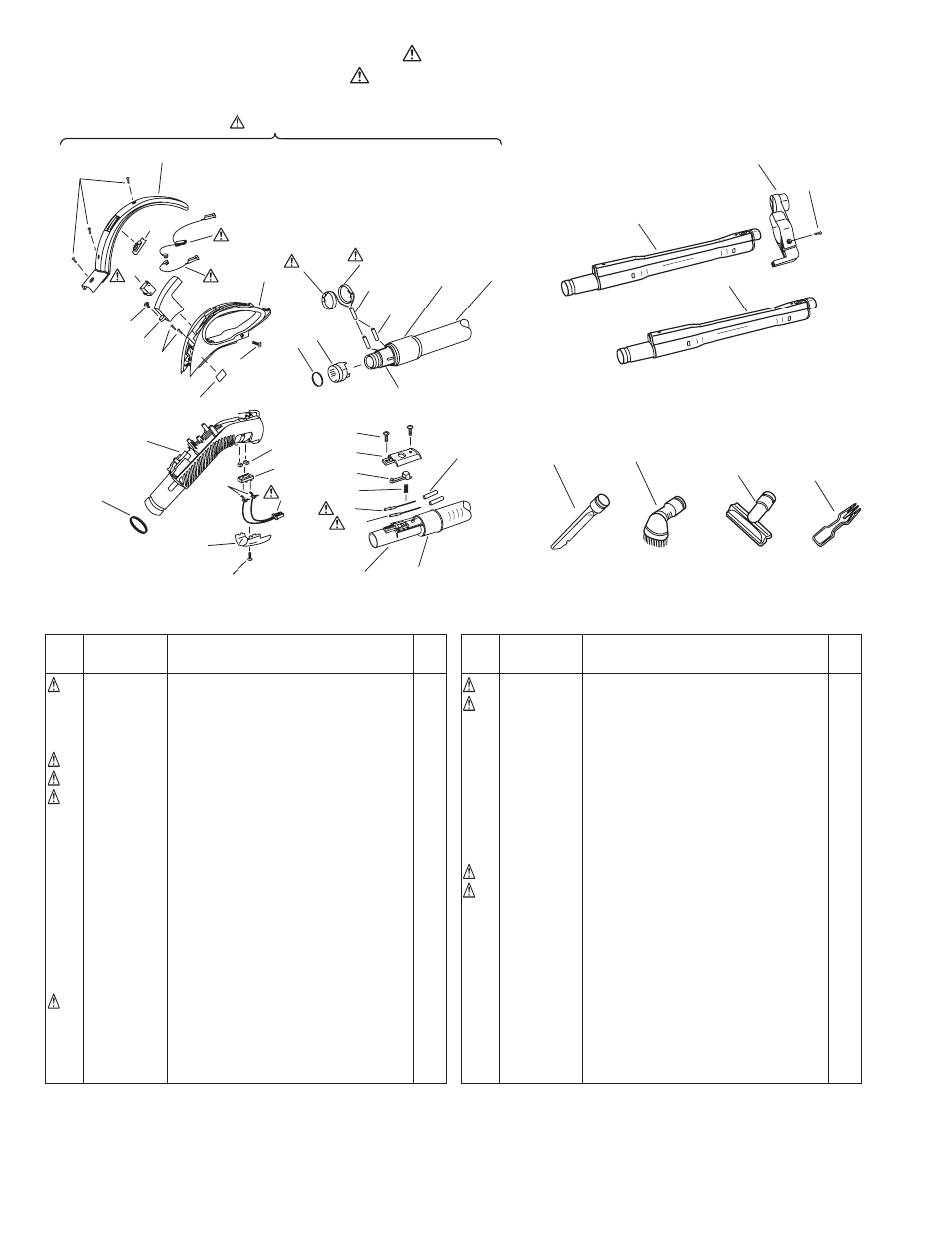

Exploded View
(Attachment)
Parts List
NOTE : The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-X1000P (U.S.A.)
Mar./2003 Printed in Japan
Key
No.
Key
No.
Parts No. Description Q'ty Parts No. Description Q'ty
COLOR CODE:N3-99T(SILVER),N1-52/N1-233(GRAY),NN-B(BLACK)
1 (2 - 36)
3
2
4
5
6 7
15
10
11
12
3
13
14
9
16
17
18
19
21
23
22
24
20
25
8
35 36
38
39
37
37
40 41
42
43
29
20
27
28
30
31
32
26
26
33
34
1 663 007 0222 SUCTION HOSE COMP. KEYNO,2-36 1 23 663 000 8447 SLIP RING ASSEMBLY A(RED) L=90 1
2 663 007 0239 CONTR SWITCH CASE (N3-99T) 1 24 663 000 8454 SLIP RING ASSEMBLY B(WHITE) L=70 1
3 663 000 8263 SCREW (3X12) 5 25 663 000 8461 TUBE (L=40) 1
4 663 000 8270 SWITCH LEVER (NN-B) 1 26 663 000 8478 TUBE 4
5 663 007 0246 CONNECTOR HOUSING ASSEMBLY B 1 27 663 001 0136 SUCTION HOSE COVER C 1
6 663 007 0253 CORD ASSEMBLY (BLACK) L=90 1 28 663 001 0143 SUCTION HOSE (N1-52) 1
7 663 000 8324 MICRO SWITCH 1 29 663 001 0150 HOSE JOINT PIPE C (N1-233) 1
8 663 000 0335 SCREW (4X16) 1 30 663 001 0167 HOSE HOOK COVER (N1-233) 1
9 663 000 8331 SWITCH BASE 1 31 663 001 0174 HOSE HOOK (N1-233) 1
10 663 001 0082 GRIP (N1-233) 1 32 663 000 0519 HOSE HOOK SPRING 1
11 663 000 0076 SCREW (4X16) 2 33 663 000 8539 CORD ASSEMBLY (WHITE) 1
12 663 007 0260 CAUTION LABEL(E) 1 34 663 007 0291 CORD ASSEMBLY (BLACK) 1
13 663 007 0277 HOSE JOINT PIPE B (N1-233) 1 35 663 001 0181 HOSE JOINT PIPE A (N1-233) 1
14 663 007 0284 PIPE PACKING (NN-B) 1 36 663 001 0198 SUCTION HOSE COVER 1
15 663 000 8379 SLIP RING CLEANER 2 37 663 007 0307 CONNECTION PIPE ASSEMBLY A 2
16 663 001 0112 COLLECTING SHOE HOLDER 1 38 663 007 0314 PIPE RETAINER (NN-B) 1
17 663 000 8393 COLLECTING SHOE B 2 39 663 000 0243 SCREW (4X20) 1
18 663 000 8300 CONNECTOR HOUSING ASSEMBLY B 1 40 663 006 5471 CREVICE TOOL (N1-233) 1
19 663 001 0129 COLLECTING SHOE COVER 1 41 663 006 5488 UPHOLSTERY BRUSH ASSEMBLY (N1-233) 1
20 663 005 6691 SCREW (3X8) 3 42 663 006 5495 UPHOLSTERY BRUSH ASSEMBLY (ETIQUETTE) 1
21 663 000 8423 JOINT PIPE PACKING 1 43 663 006 3729 DUSTER ARM (NN-B) 1
22 663 000 8430 SLIP RING BASE 1 663 007 0321 INSTRUCTION MANUAL 1
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311
