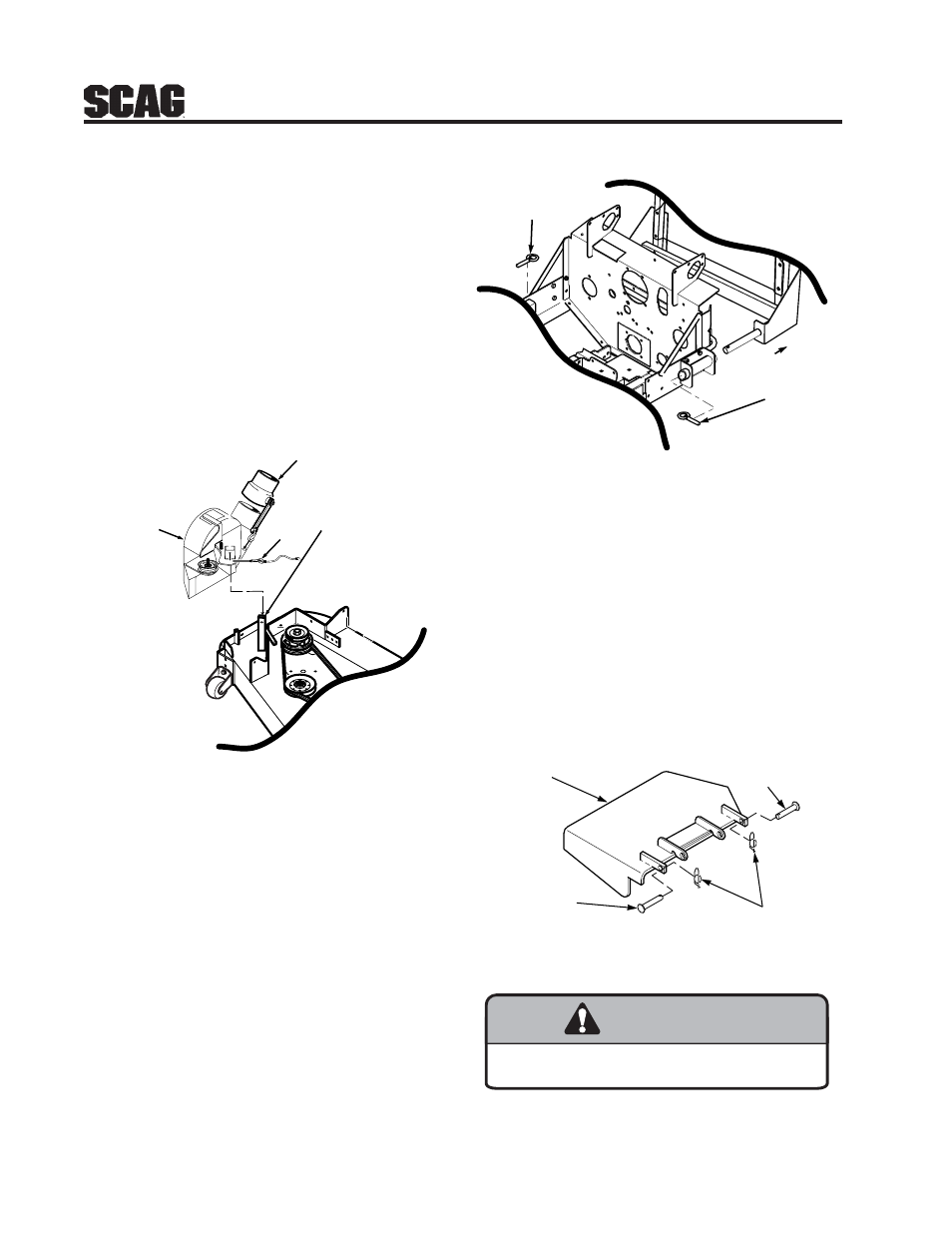

1. Prepare the work area making sure that it is a
clean, safe environment.
2. Remove the rubber strap holding the adapter to
the blower assembly. See Figure 5-1.
3. Remove the belt from the spindle pulley.
4. Remove the pin holding the blower assembly to
the mounting bracket on the cutter deck and
remove the blower assembly. See Figure 5-1.
5. Remove the two (2) pins holding the hopper
assembly to the mounting brackets on the rear of
the machine. See Figure 5-2.
6.1 GRASS CATCHER REMOVAL
INSTRUCTIONS
6. With the help of an assistant, remove the hopper
assembly.
7. Remove the front weights by removing the quick
pins.
8. Re-install the side discharge chute to the opening
on the cutter deck. Replace the two (2) outside
mounting bolts on the discharge chute with the
clevis pins (p/n 04064-15) and rue cotter pins
(p/n 04069-03). See Figure 5-3.
FIGURE 5-3
BLOWER
ASSEMBLY
MOUNTING
BRACKET
PIN
ADAPTER
RIGHT SIDE OF
CUTTER DECK SHOWN
(Note: Some parts not shown for viewing purposes.)
GC-STC removal art 1
CLEVIS PIN
P/N 04064-15
CLEVIS PIN
P/N 04064-15
RUE COTTER PIN
P/N 04069-03
DISCHARGE
CHUTE
GC-STC removal art 3
REMOVE
REMOVE
PULL HOOD
ASSEMBLY OUT
FIGURE 5-1
FIGURE 5-2
WARNING WARNING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
