Scag Power Equipment GC-STT-CS - Manual (Page 17)

15

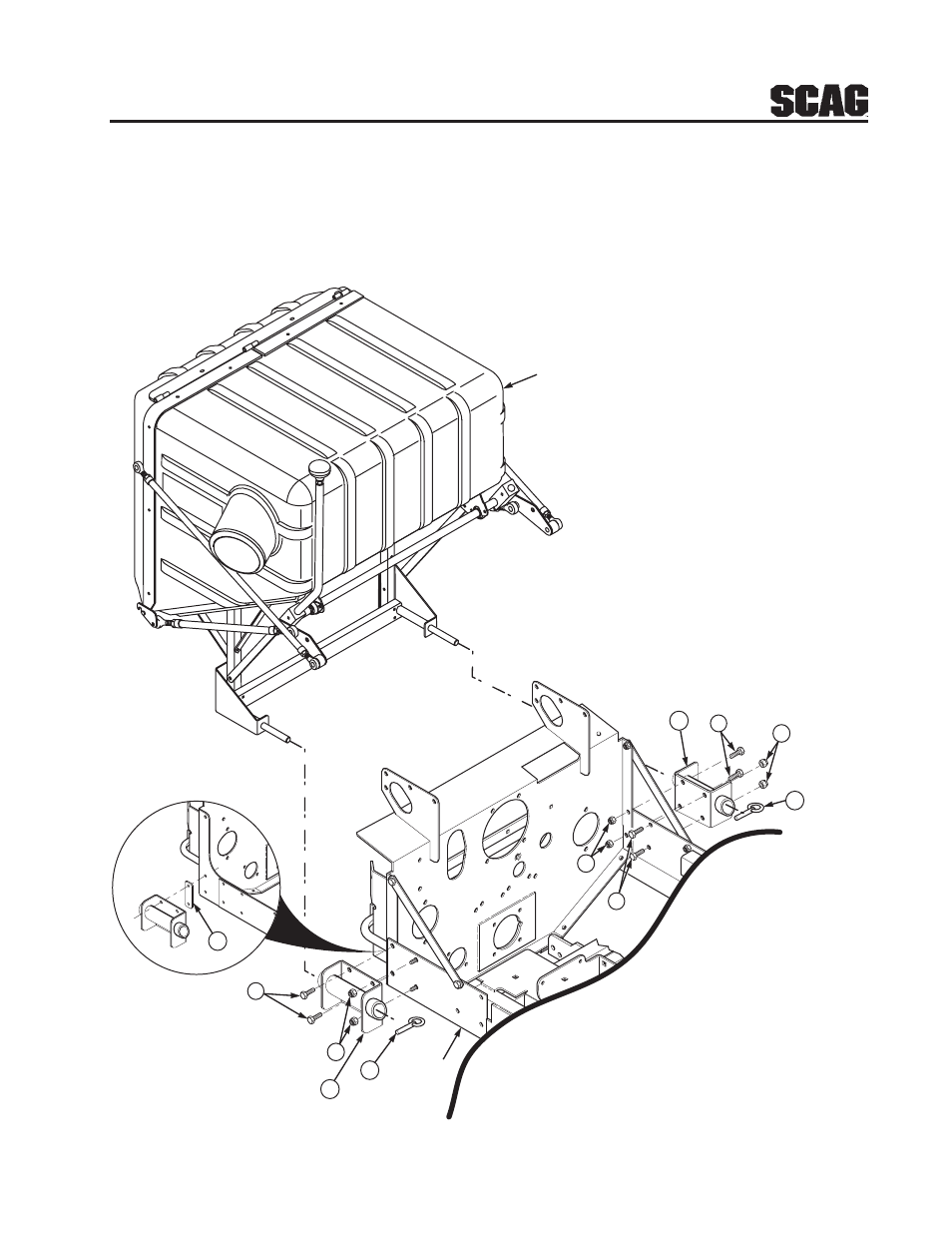

FIGURE 5-6
Liquid
Cooled
Only
Note:
Illustration is for reference only. Some parts have been
removed for visual purposes and may vary depending
on model.
Hopper
Assembly
Frame
Item # Part # Description
1 04001-19 Bolt, Hex Head 3/8-16 x 1"
2 04021-09 Nut, Elastic Stop 3/8-16
3 04066-03 Quick Pin
4 423670 Spacer, Hitch
5 451512 Hitch Bracket Weldment
451595 Hitch Bracket Weldment, Floating
1
1
1
2
2
3
3
4
5
5
2
