WEIGHT SUPPORT BAR
BAR CLAMP
ELASTIC STOP
NUT
WEIGHT (5x)
LANYARD
PIN
BOLT
2002 GC-STT Install Art 3-5
16. Install the weight support bar to the front of the
machine by resting it directly on top of the caster
support arms and sliding it tight against the frame
of the machine. Secure the weight bar to the
machine using (2) bar clamps, (4) 3/8-16 x 1-1/2"
bolts and (4) 3/8-16 elastic stop nuts. See Figure
4-6.
17. Install the weight assemblies to the weight
support bar and secure them to the bar using the
1/2"x 6-1/4" pin and lanyard. See Figure 4-6.
18. Operate and test.

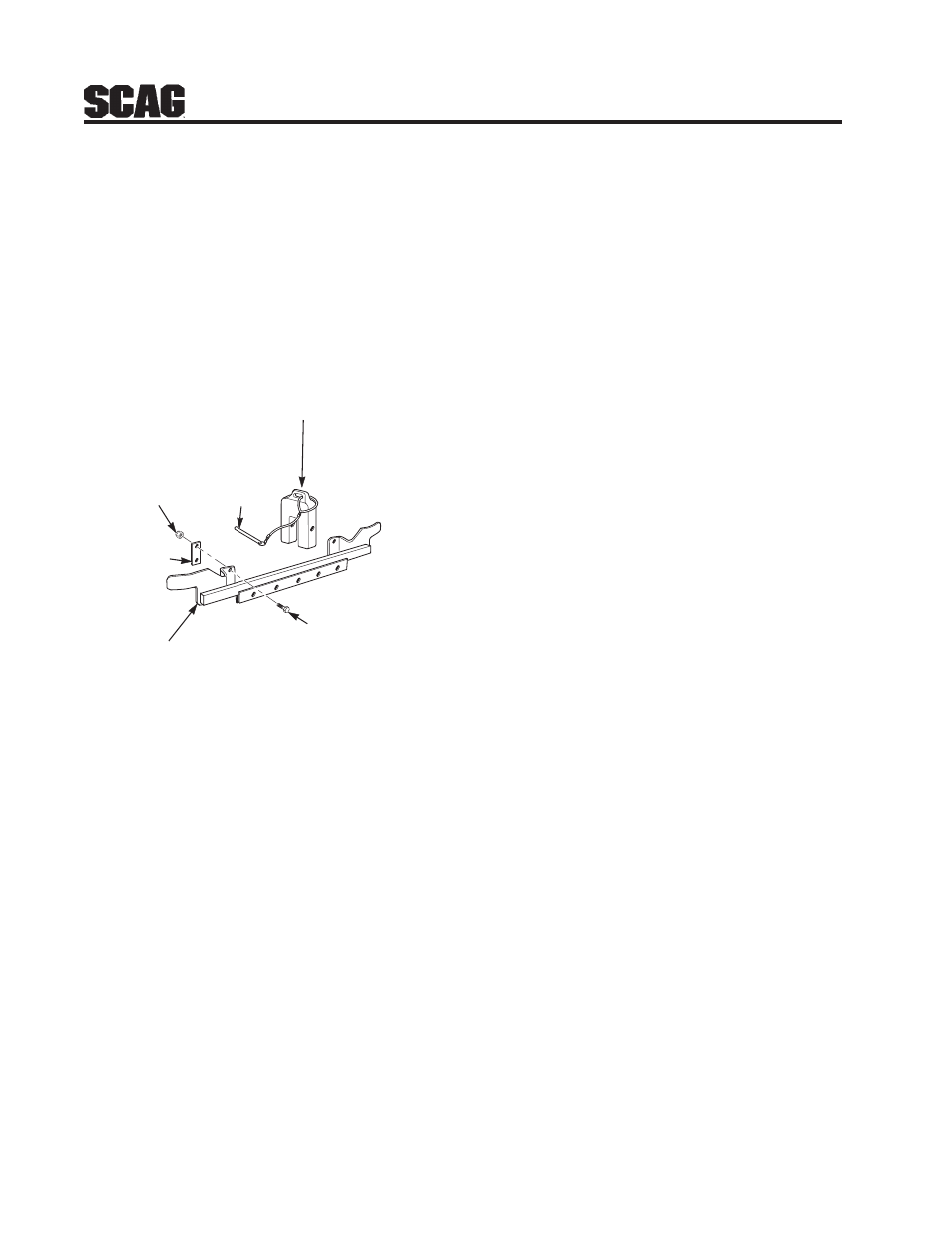

FIGURE 4-6
