VICTORY VHS SERIES

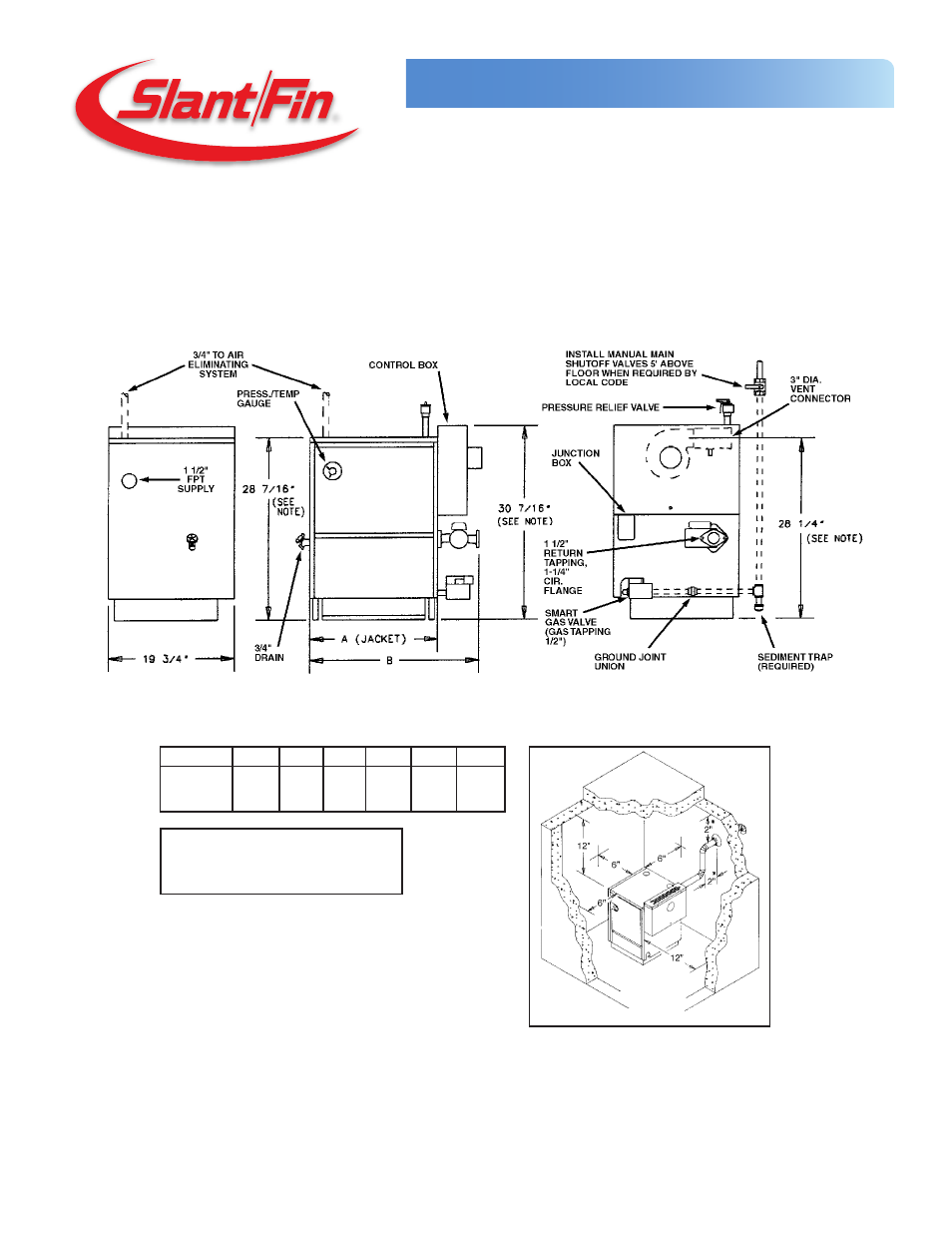

DIMENSIONS – GAS BOILERS
®
Supply water tapping 1 1 ⁄
2
"
Circulator return flange* 1 1 ⁄
4
"
Gas tapping, natural or propane 1 ⁄
2
"
* When not equipped with circulator, boiler 1-1/2” return tapping.
Crate dimensions: 34-5/8” length, 22-1/2” width, 33-1/2” height.
▲ AL 29-4C is a registered trademark of Allegheny Ludlum Corp.
*6" if enclosed
Dimensions VHS-30 VHS-60 VHS-90 VHS-120 VHS-150 VHS-180
“A” 8 1 ⁄
8
" 11 1 ⁄
8
" 14 1 ⁄
8
" 17 1 ⁄
8
" 20 1 ⁄
8
" 23 1 ⁄
8
"
“B” 14 5 ⁄
8
" 17 5 ⁄
8
" 20 5 ⁄
8
" 23 5 ⁄
8
" 26 5 ⁄
8
" 29 5 ⁄
8
"
LEFT END VIEW FRONT VIEW RIGHT END VIEW
NOTE: Height dimensions increase by 1 3 ⁄
4
" and depth increases to 22 1 ⁄
4
" when combustible floor kit is used.
Minimum clearance
dimensions
