Sony FCB-EX1020 - Manual (Page 65)

65
Specifications
2-M2
85.2
CN500
9.5
7.5 14 53
20
1/4-20UNC
36 29 ± 0.1
40.2 33 ± 0.1
CN501 8-M2
14
± 0.1
16
± 0.1
27
± 0.1
4.5
4-M2
87.9
50
25
10
2.5
48.3 ± 0.1
73 ± 0.1
25.4
± 0.1
10
ш34.016
ш38.6
57.5
(27.5)
30
(57.5)
9-M2
CN200
"D"Mark
SW
CN702
15
36.5
22.5
5
20
± 0.1
20
± 0.1
20 ± 0.1 28 ± 0.1
21
± 0.1
Unit: mm (inches)

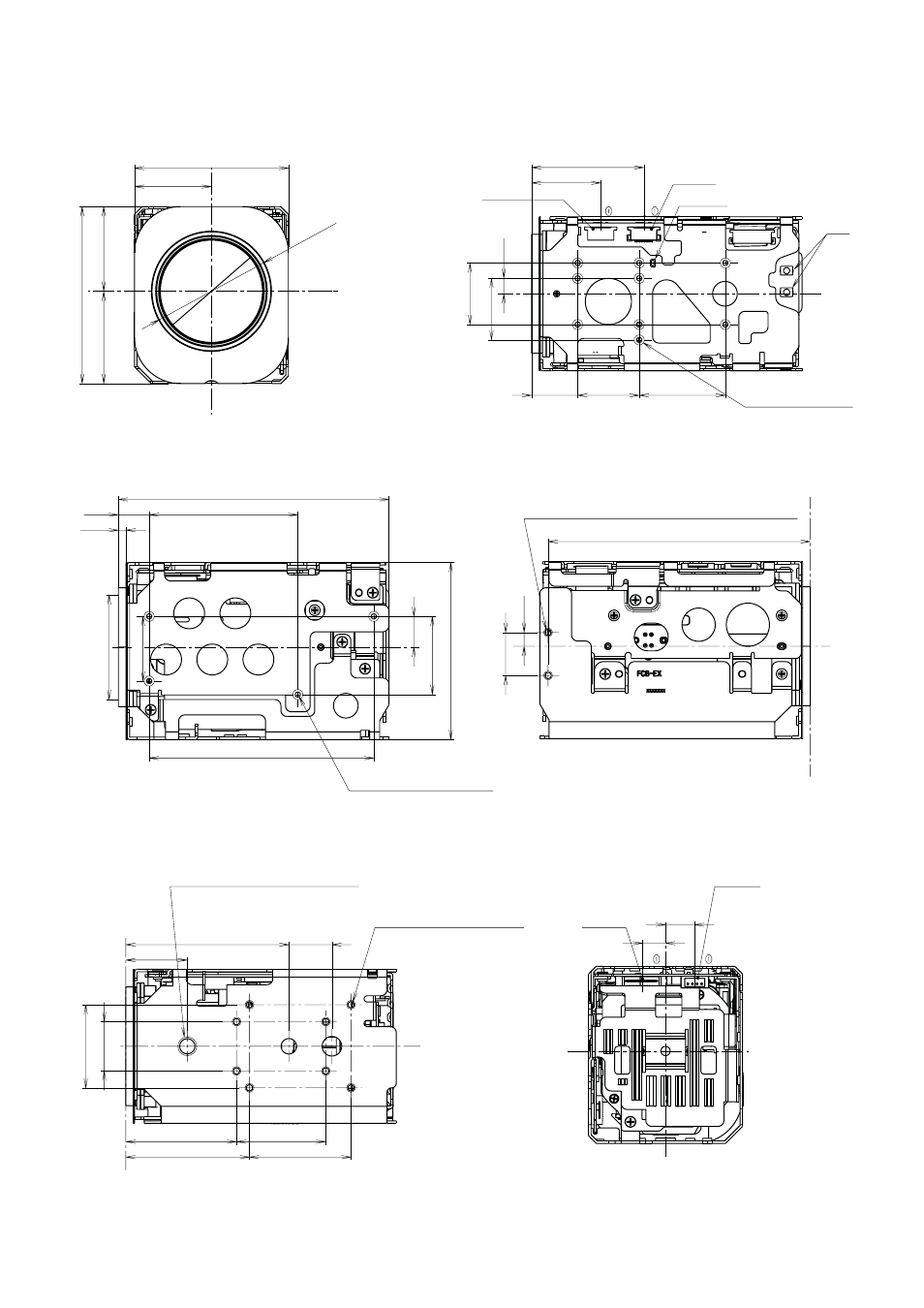

Dimensions
Front Left side
Top Right side
Bottom Back
Within a depth of 3 mm
(
1 / 8 in.) or less form the
side
Within a depth of 3 mm ( 1 / 8 in.) or less form the side
(Tripod screw for camera)
Within a depth of 3 mm ( 1 / 8 in.)
or less form the bottom surface
Within a depth of 7 mm ( 9 / 32 in.) or
less form the bottom surface
Within a depth of 3 mm ( 1 / 8 in.)
or less form the top surface
