21
Basic Functions

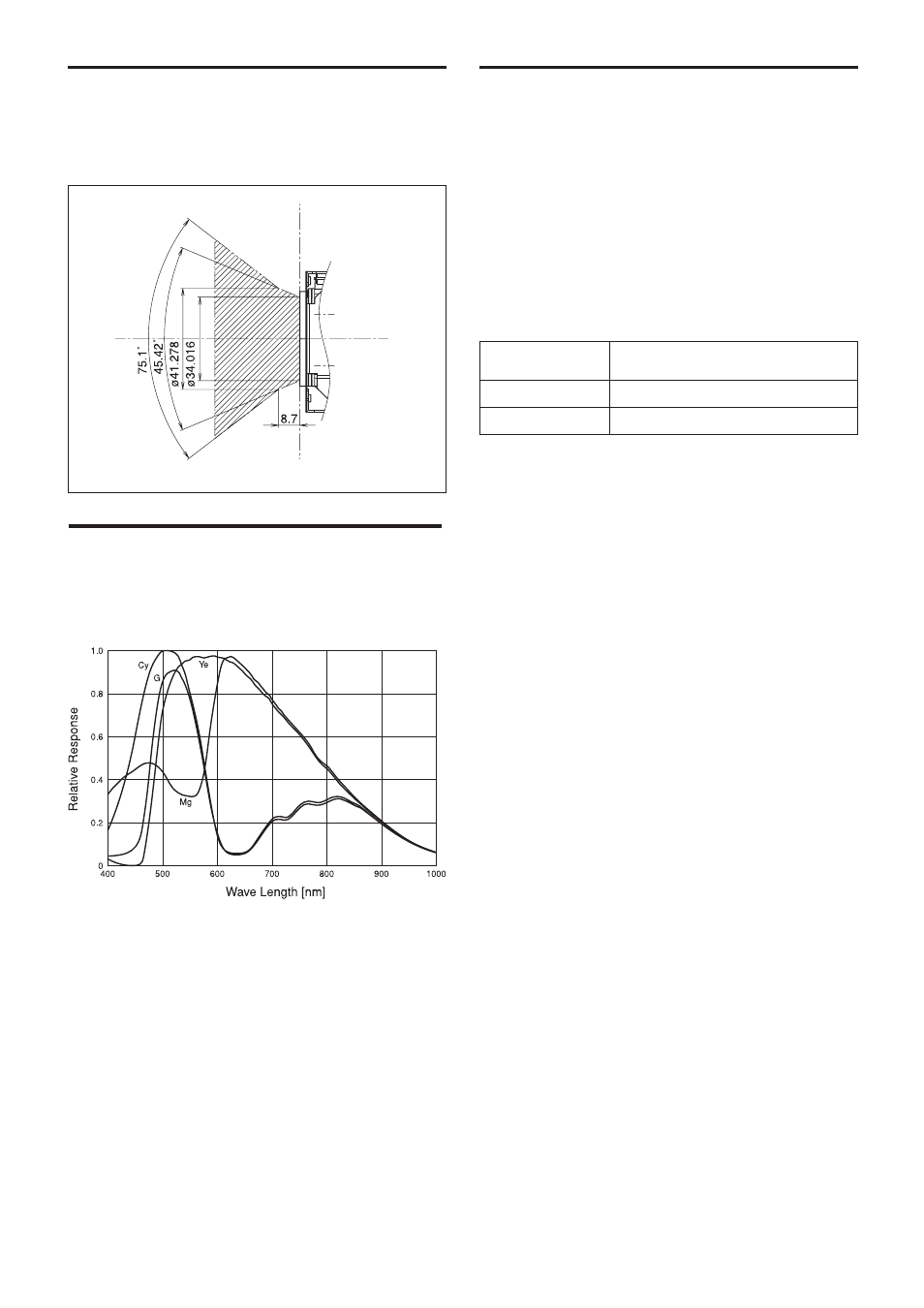

Spectral Sensitivity
Characteristics
Use the graph as a reference value. (We can not
guarantee these values.)
This data is measured when the IR cut filter is
removed and the characteristics of the lens and optical
source characteristics are ignored.
Vibration
Specifications
Test Method (Random vibration)
• Fix the camera at the four fixation points of the base
using M2 screws.
• Perform the random vibration test under the
following conditions in the X, Y and Z directions for
20 minutes in each direction.
• The camera vibration specification is to have no
malfunction after this test.
Power spectrum density
Effective overall value
Test time
5 to 50 Hz 4.14 m 2 /s 3 {0.043 G 2 /Hz}
50 to 100 Hz –36 dB/oct
14.3 m/s 2 {1.46 G}
20 minutes
Eclipse
When designing the housing, refer to the dimensional
allowance as shown in the figure below.
