Sony DSR-DR1000 - Manual (Page 93)

93
Adjusting the Sync and Subcarrier Phases
5
Output the player 1 signal from the PVE-500.
6
Press the A channel button on the vectorscope.
This displays the sync and subcarrier phases
(composite signals only) of the signal from player 1.
7
On player 1, adjust the front panel SYNC PHASE and
SC PHASE controls, using a Phillips screwdriver, so
that the output from player 1 on channel A is in
correct phase alignment with the black burst signal on
channel B.
Note
When component signals are used the subcarrier
phase indicator does not appear.
8
Output the player 2 signal from the PVE-500, and
repeat steps
6 and 7 to adjust the sync and subcarrier
phases of the output from player 2.

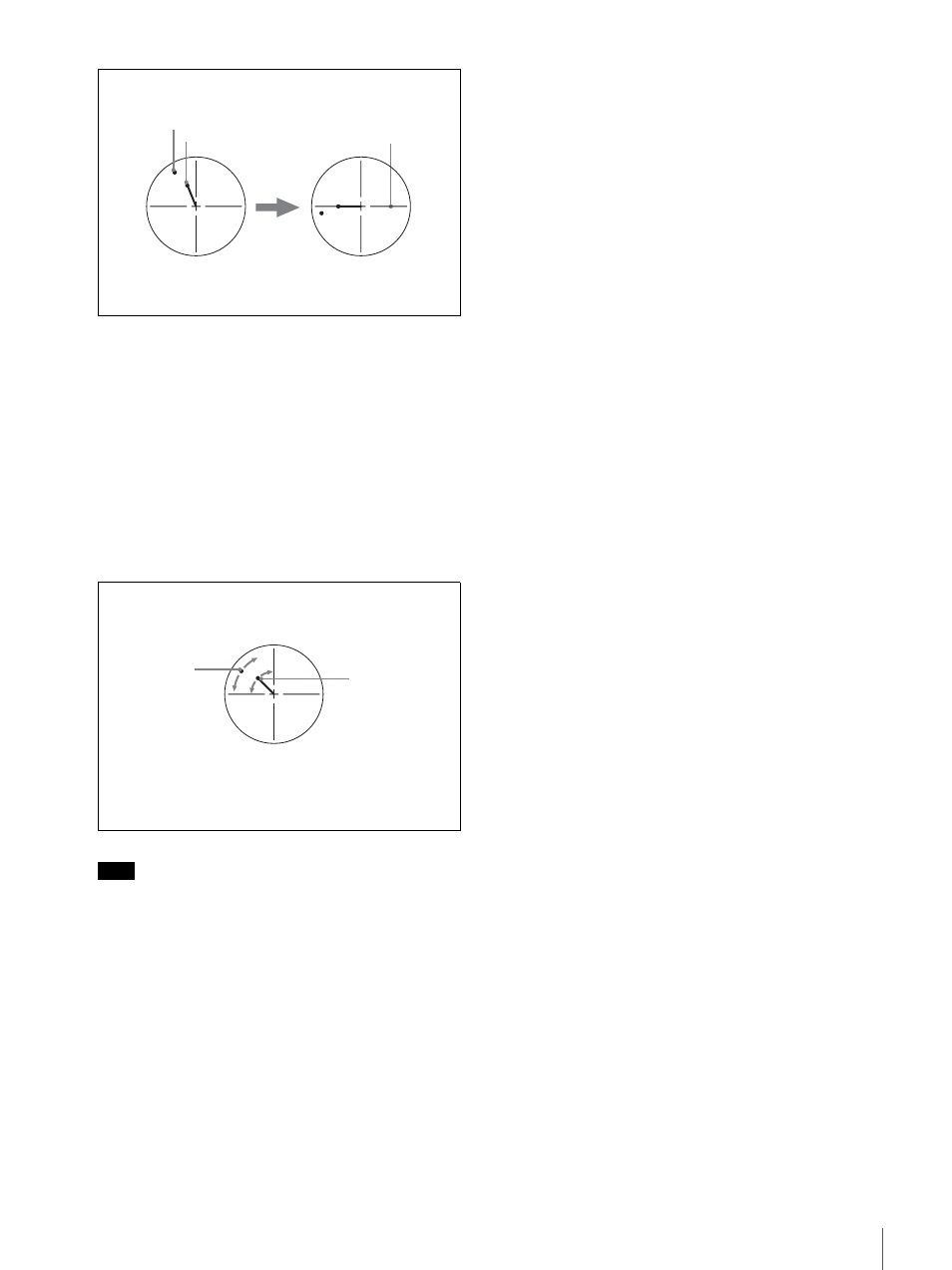

Align the sync and subcarrier phases of the black
burst signal to the reference line.
Sync phase
Reference line Subcarrier phase
Adjust the sync and subcarrier phases of the output
signal from player 1.
This indicator
moves as you
turn the SYNC
PHASE control.
This indicator
moves as you
turn the SC
PHASE control.
