Connections to a Digital Non-Linear Editing System
Connections to a Digital Non-Linear Editing System

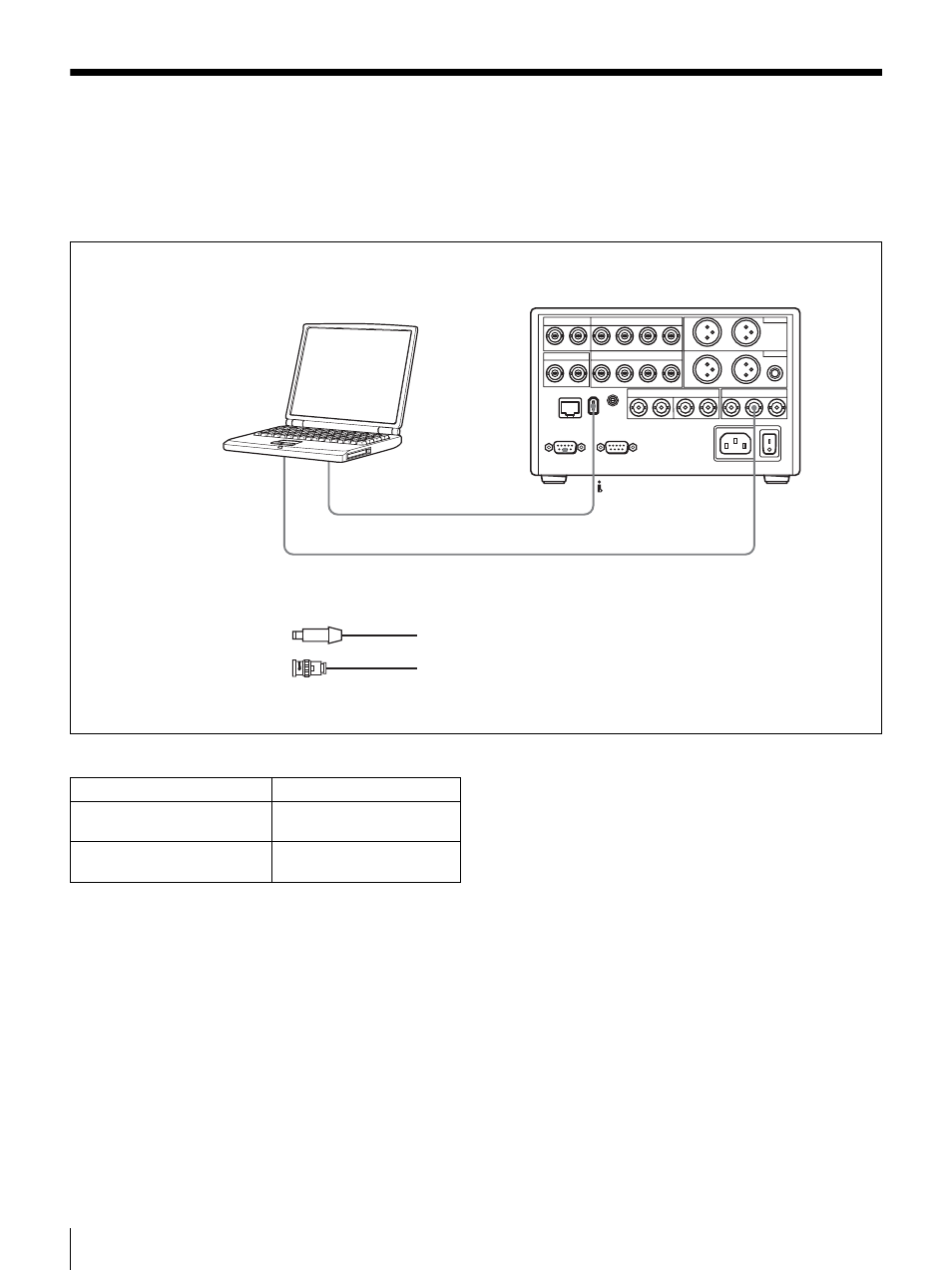

The following figure shows a connection diagram to a non-
linear editing system in which this unit serves as the feeder
machine.
Settings on this unit
For details of video/audio input and audio mode settings,
see “Settings for Recording” on page 33.
SDI OUT1
S400 (i.LINK)
1
2
1 DV cable
Non-linear editing system
SDI input
i.LINK (SBP2
a)
on AV/C)
This unit
a) When using the SBP2 protocol, set menu item PC REMOTE to ENA (see page 72).
2 75
Ω
coaxial cable
Switch/menu item Setting
Control mode selector REMOTE
(REMOTE indicator lights.)
REMOTE I/F menu item (see
page 72) i.LINK
