Installing the BM85
890 USE 103 00
72
1.53 in
(39 mm)
TOP VIEW
REAR PANEL VIEW
14.08 in (358 mm)
12.83 in (326 mm)
11.5 in (292 mm)
5.25 in
(133 mm)
8.3 in
(211 mm)
2.59 in
(66 mm)
Allow 4.0 in (102 mm) rear clearance
for access to switches, cables, and fuse

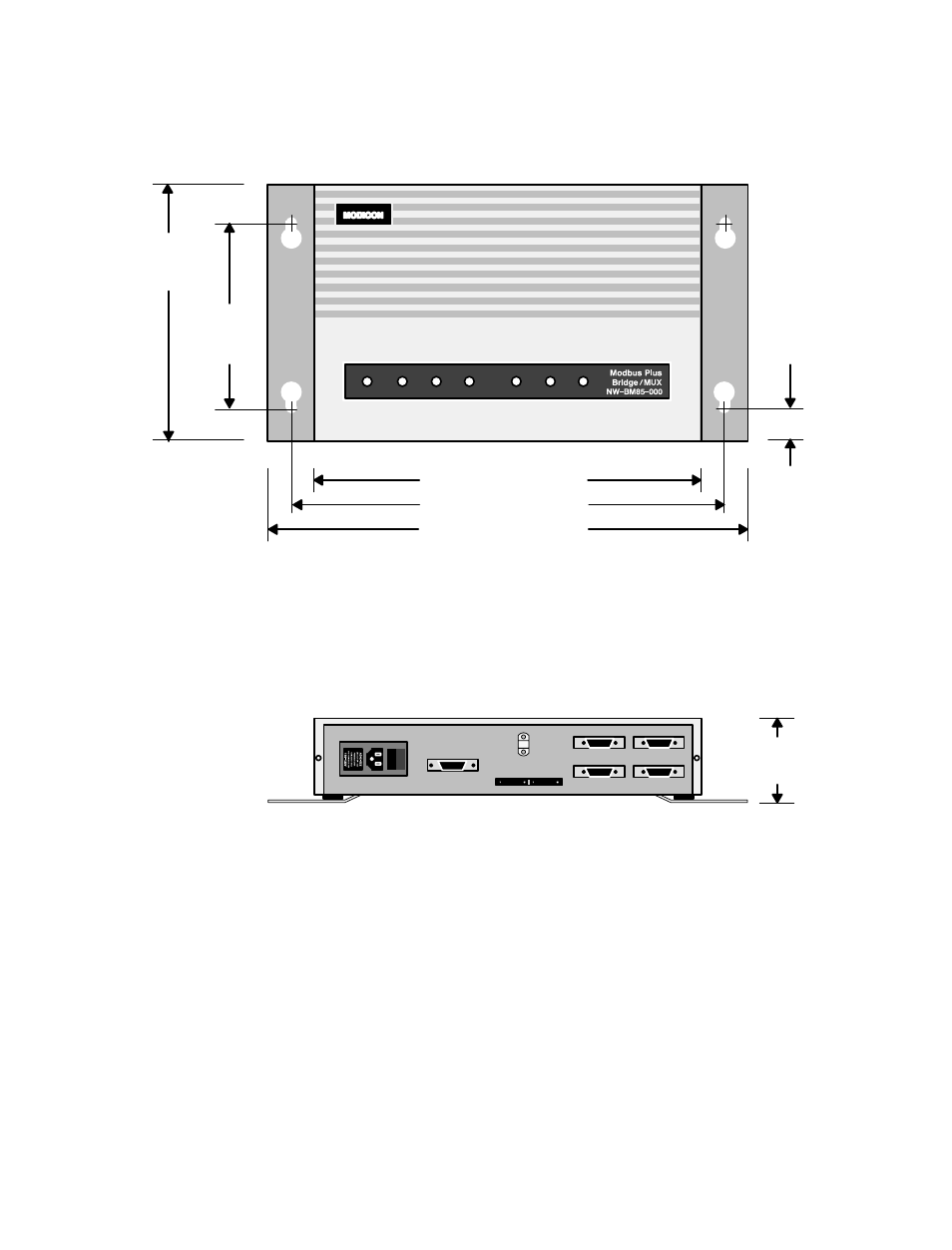

Figure 17
Mounting Dimensions: Shelf/Panel Mount Models
