3-2 Adjusting the Paper-end Detector
n The paper-end detector
The paper-end detector senses when the paper is nearing its end and turns on the
PAPER lamp.
The paper-end detector can be adjusted according the thickness of the paper.
n How to adjust the paper-end detector
Roll paper may differ in spool size, so it may be necessary to adjust the paper-end
detector.
Use the specified thermal paper roll with a core inside diameter (d1) of 12 mm
and an outside diameter (d2) of 18 mm, or the specified thermal label paper
with a core inside diameter (d1) of 12 mm and an outside diameter (d2) of 22
mm.
The thickness of the spool can vary; use the table to determine the paper-end
detector adjustment.
Table 3-l. Adjustment Values of the Paper-end Detector
Adjustment Dimension of T (mm)
Value Specified thermal paper Specified thermal label paper
# l Approx. 0 Do not use
#2 Approx. 2 Approx. 0
#3 Approx. 4 Approx. 2
#4 Approx. 6 Approx. 4
#5 Approx. 8 Approx. 6
#6 Approx. 10 Approx. 8

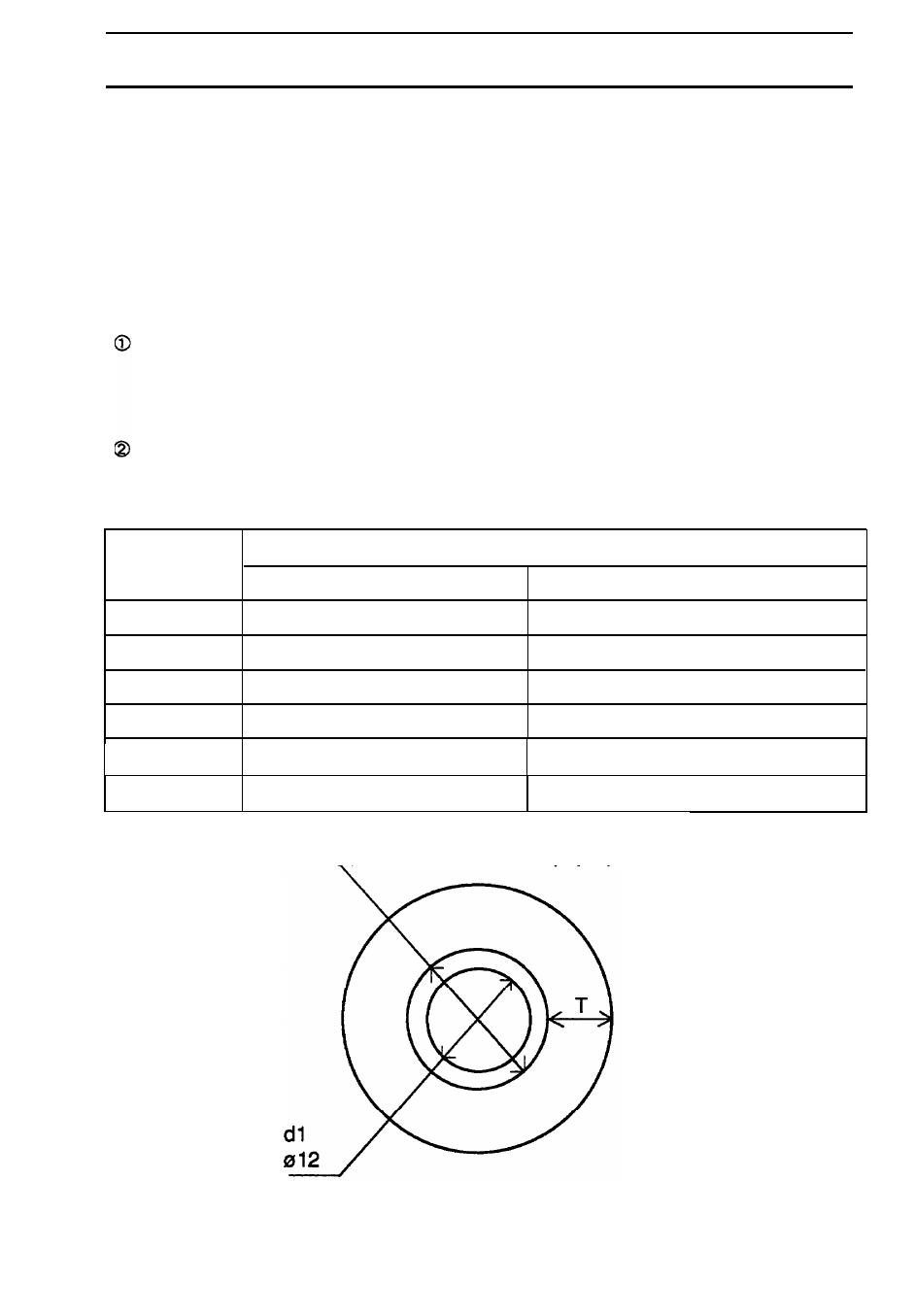

d2 018 (specified thermal paper)
022 (specified thermal label paper)
10
