16 GB

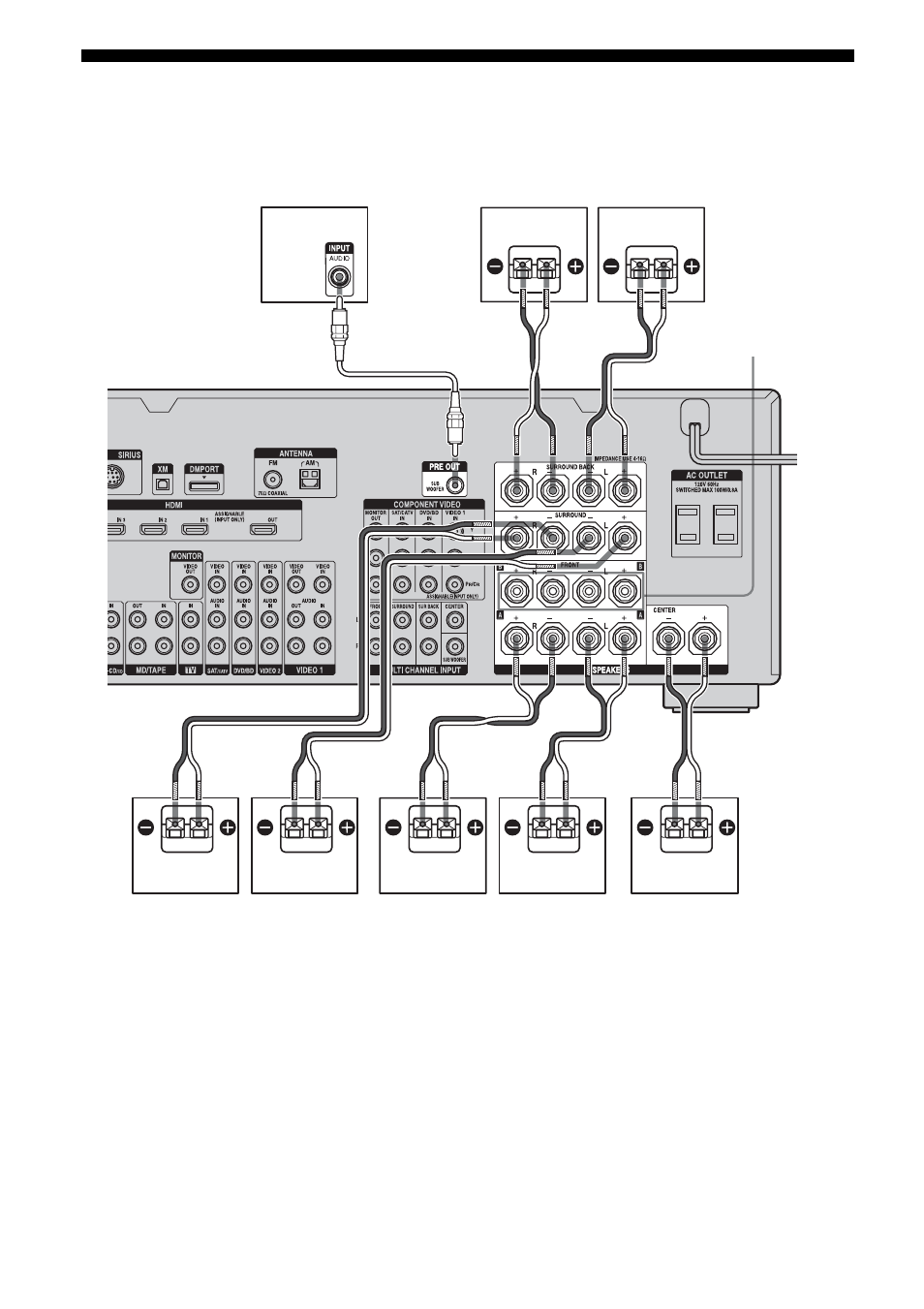

2: Connecting speakers
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
ACenter speaker
BFront speaker A (L)
CFront speaker A (R)
DSurround speaker (L)
ESurround speaker (R)
FSurround back speaker (L)
b)
GSurround back speaker (R) b)
HSub woofer c)
a)
If you have an additional front speaker
system, connect them to the FRONT
SPEAKERS B terminals. You can select
the front speaker system you want to use
with the SPEAKERS switch (OFF/A/B/
A+B) on the front panel (page 41).
H G F
B A D E C
A B
FRONT SPEAKERS
B terminals
a)
A Monaural audio cord (not supplied)
B Speaker cords (not supplied)
